Sealey 10.8V Ø85MM Cordless Circular Saw - Body Only
A compact and lightweight 10.8V cordless circular saw designed for precision cutting. This body-only model features a comfortable soft-grip housing, adjustable cutting depth and bevel angles, and integrated safety guards for reliable...
Table of contents
Product Overview
The Sealey 10.8V Ø85mm Cordless Circular Saw is a compact and lightweight power tool designed for efficient cutting tasks. This model is supplied as a body-only unit, requiring a compatible 10.8V 2Ah or 4Ah battery and a mains charger, which are sold separately. The tool features a comfortable soft-grip housing to minimize vibration during operation and includes a wrench for easy blade replacement.
Safety Precautions
Safety is paramount when operating power tools. Always wear appropriate personal protective equipment, including eye protection, safety footwear, and a mask. Ensure the saw safety guard is always in place and functioning correctly. Never operate the tool if any parts are missing or damaged. Keep the work area clear of children and unauthorized persons, and ensure the workpiece is securely clamped before cutting. Avoid using the tool in the presence of flammable liquids or gases, and never touch the blade or workpiece immediately after cutting as they will be hot.
Operation and Adjustments
Before starting, ensure the spindle clamp screw is tightened and the blade is correctly mounted. To set the cutting depth, loosen the depth lock and adjust the blade position using the engraved scale. Similarly, the bevel angle can be adjusted by loosening the bevel lock and setting the desired angle on the sole plate scale. Always ensure all locking levers are firmly tightened before use. To operate, depress the trigger lock and squeeze the trigger. Always maintain a firm grip with both hands and keep your body to the side of the blade to prevent injury from potential kickback.
Maintenance and Storage
Regular maintenance ensures the longevity and safety of your tool. Always remove the battery before performing any adjustments or cleaning. Remove dust using a soft-bristled brush and clean the housing with a soft, damp cloth. Do not use solvents or compressed air for cleaning. The tool is permanently lubricated and does not require internal maintenance. Store the saw in a dry, child-free location. Be aware of the risks associated with hand-arm vibration and follow recommended health surveillance practices if using the tool for extended periods.
Manufacturer information
Sealey Group
Practical help
Common problems
Blade binding or stalling
Release the trigger immediately, hold the saw motionless until the blade stops, and investigate the cause before restarting.
Lower guard sluggish or not closing
Check for gummy deposits or debris. If damaged, the guard or spring must be serviced before further use.
Tool overheating
Ensure air vents are not covered during operation.
Before use
- Check that the saw safety guard is in place and moves freely.
- Ensure the spindle clamp screw is correctly tightened.
- Verify the blade is not split, cracked, or damaged.
- Secure the workpiece with a clamp or vice.
- Check that the battery is fully charged.
- Ensure all locking levers (depth and bevel) are tight.
- Wear required PPE (eye protection, gloves, mask).
Specs in practice
- Blade Diameter
- The size of the compatible saw blade, which is 85mm.
- Cutting Depth at 90°
- The maximum depth the saw can cut when held perpendicular to the surface (26mm).
- No-load speed
- The rotational speed of the blade when not cutting (1450rpm).
- Disk Bore Size
- The diameter of the hole in the center of the blade (15mm).

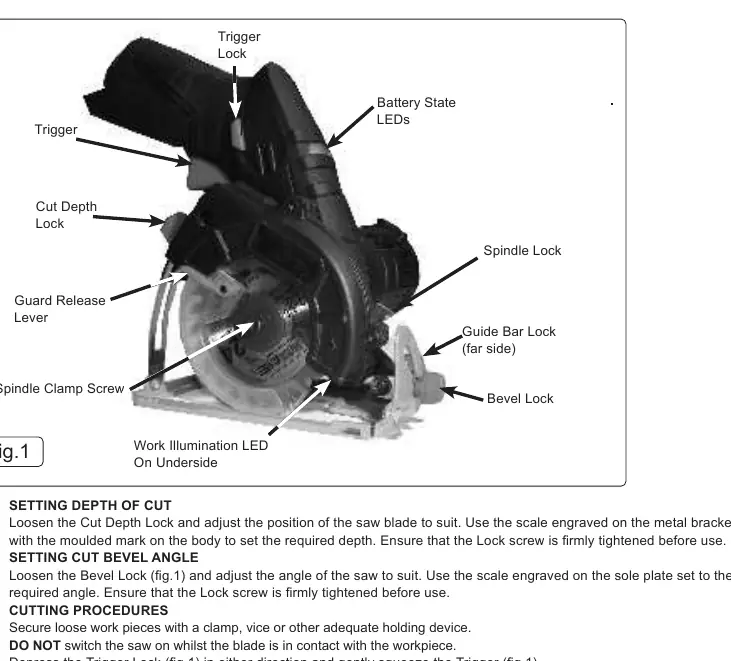

Images and diagrams
- The diagram illustrates the location of the trigger, trigger lock, and battery state LEDs.
- It highlights the adjustment points for cut depth and bevel angle.
- It identifies the spindle lock and spindle clamp screw for blade changes.
- It shows the guard release lever and the work illumination LED.
Model compatibility
- Requires 10.8V 2Ah or 4Ah battery (sold separately).
- Requires CP108VMC mains charger (sold separately).
