Sealey MS900PS 1300W Variable Speed Sander/Polisher User Guide

Quick guide from the manual

This document provides essential operational and safety information for the Sealey MS900PS 1300W Variable Speed Sander/Polisher. Always ensure the tool is unplugged before performing any assembly or maintenance. The device features variable speed control (1400-3000rpm) and is designed for sanding and polishing tasks. Users must adhere to all safety regulations, including the use of appropriate personal protective equipment (PPE) such as eye protection, ear defenders, and respiratory protection if dust is generated.

Assembly

Before assembly, ensure the unit is disconnected from the power supply.

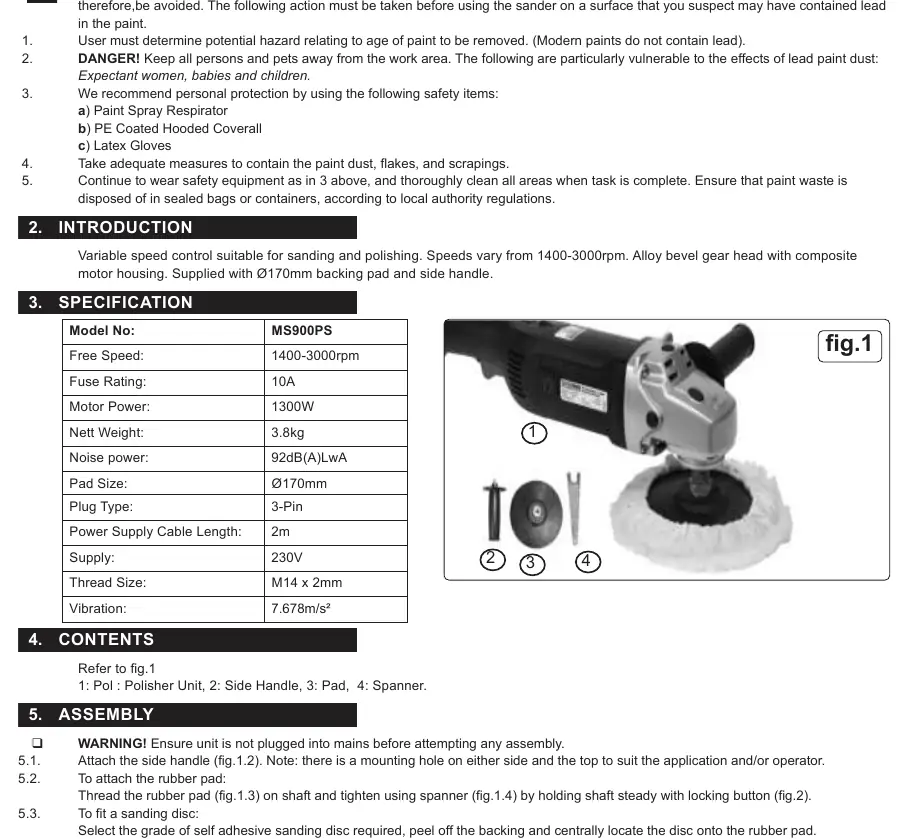

• Side Handle: Attach the side handle to either side or the top of the unit to suit your application.
• Rubber Pad: Thread the rubber pad onto the shaft and tighten it using the provided spanner while holding the shaft steady with the locking button.
• Sanding Disc: Peel off the backing of the self-adhesive sanding disc and centrally locate it onto the rubber pad.
• Polishing Bonnet: Fit the bonnet over the secured rubber pad, tighten the pull cord, and tie a bow to secure it.

Operation

Ensure the power switch is not locked on before plugging the tool into the mains. Hold the polisher firmly with both hands. To start, press and hold the safety lock button and squeeze the trigger. Rotate the speed selector switch to choose a speed setting from 1 to 6 (1000-3000rpm). Note that high-speed settings are intended for sanding; for polishing, it is generally unnecessary to exceed speed setting 3 (2000rpm) to avoid burning through paintwork.

Maintenance

Regular maintenance is crucial for safety and tool longevity:

• Keep the machine clean and dry; do not use abrasives.
• Regularly blow compressed air through side vents to keep motor ventilation clear.
• Check carbon brushes for wear or cracks; replace them as a pair if necessary.
• Replace gear head grease after every 500 hours of use.
• All maintenance should be performed by a qualified person or an authorised Sealey service agent.

Safety and Lead Paint Warning

If working on surfaces that may contain lead paint, take extreme precautions to contain dust and use appropriate respiratory protection. Do not sand materials containing asbestos. Always maintain correct balance and footing, and keep the work area free of flammable materials.
