Parts List for Sealey Air Operated Grease Pump 12.5kg AK452X.V5
Comprehensive parts list and exploded view diagrams for the Sealey Air Operated Grease Pump 12.5kg (Model AK452X.V5). Use this guide to identify components for maintenance and repair.
Table of contents
Manual images
Jump to the sectionImportant Information
This document serves as the official parts list and assembly reference for the Sealey Air Operated Grease Pump 12.5kg (Model AK452X.V5). It provides detailed exploded diagrams and itemized component lists for both the pump and trolley assemblies to assist in maintenance and repair.
Safety and Maintenance
Important: Spare parts must be fitted by a competent person. The manufacturer reserves the right to alter data, specifications, and component parts without prior notice. Always ensure you are using the correct parts for the specific model version.
Pump Assembly
The pump assembly consists of 60 individual components, including the air motor cover, piston, various O-rings, seals, and valves. Refer to the exploded diagram on page 1 and the corresponding table on page 2 for specific part numbers and quantities required for maintenance.
Trolley Assembly
The trolley assembly includes the base, wheels, handle, and grease gun holder. Refer to the exploded diagram on page 3 and the corresponding table for part numbers. Note that some components, such as the grease pump, drum cover, follower plate, and high-pressure hose, are listed as separate items and may not be shown in the trolley diagram.
Manufacturer information
Sealey Group
Practical help
Before use
- Verify the model number is AK452X.V5
- Ensure all parts are present before beginning assembly
- Consult a competent person for any repairs or part replacements
- Check for specific O-ring sizes listed in the parts table if performing a seal replacement
Specs in practice
- Air Operated
- The pump requires a compressed air supply to function; ensure your air system is compatible.
Images and diagrams

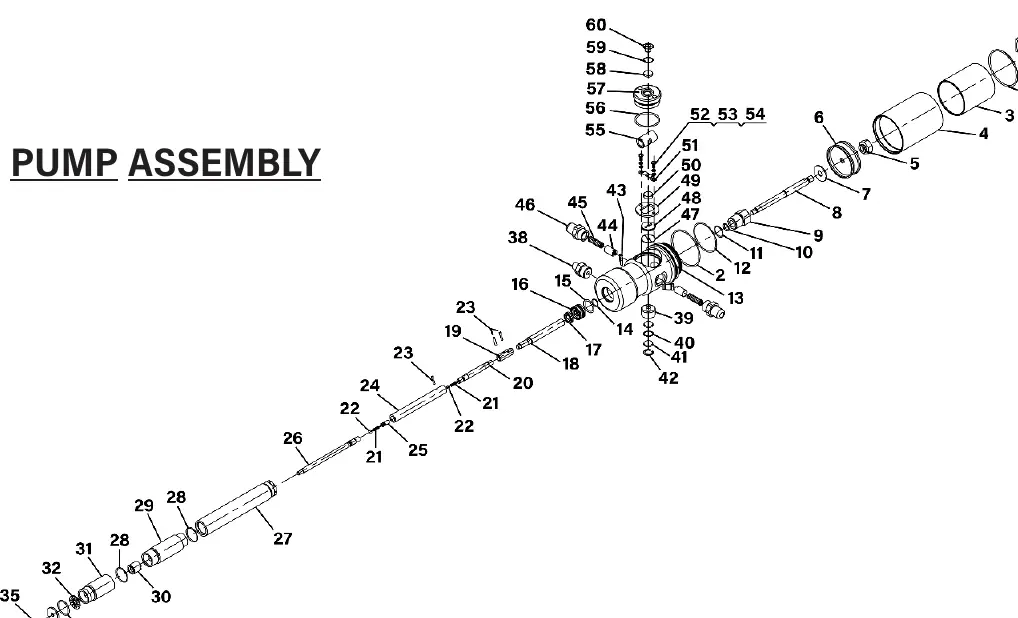

- The Pump Assembly diagram (Page 1) illustrates the internal configuration of the air motor and piston, essential for seal and valve maintenance.

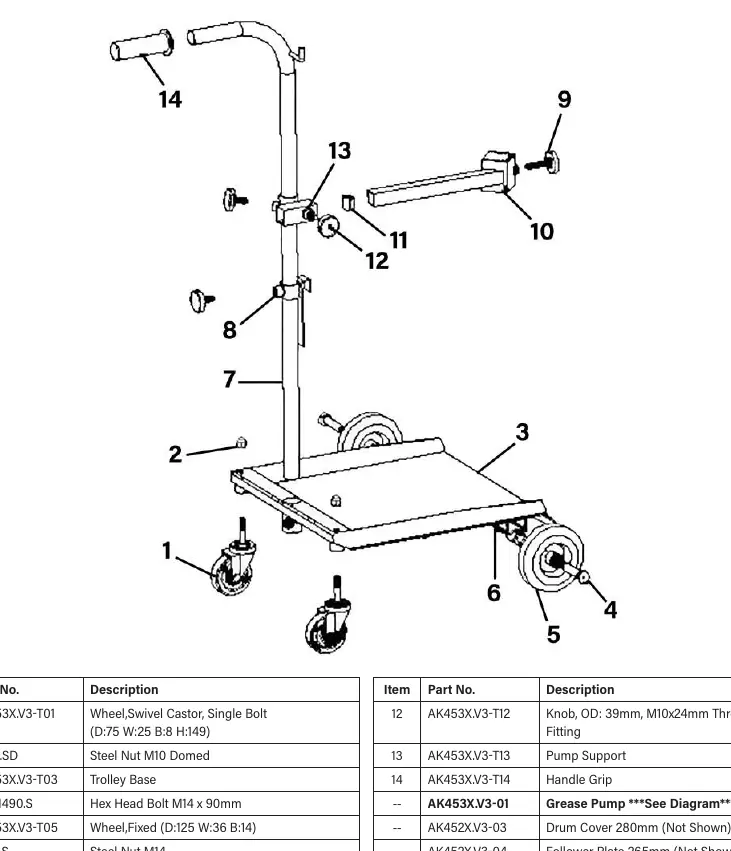

- The Trolley Assembly diagram (Page 3) shows the mounting points for the wheels, handle, and pump support.
Model compatibility
- Spare parts are specific to model AK452X.V5.
- Some components, such as the drum cover (280mm) and follower plate (265mm), are listed in the parts table but are not shown in the trolley diagram.
