Sealey Premier Straight Air Drill 10mm (SA622.V2) Parts Information
Official parts breakdown and component identification for the Sealey Premier Straight Air Drill 10mm (Model No: SA622.V2).
Table of contents
Product Overview
The Sealey SA622.V2 is a Premier Straight Air Drill featuring a 10mm keyless chuck. This document provides a comprehensive exploded view and a detailed parts list to assist in the identification of internal and external components for maintenance and repair purposes.
Maintenance and Safety
The product is designed for professional use. Users should note that all spare parts must be fitted by a competent person to ensure safe operation and maintain the integrity of the tool. Sealey does not accept liability for incorrect use of the product.
Warranty and Support
The tool is covered by a 12-month guarantee from the date of purchase. Proof of purchase is required for any warranty claims. As part of a policy of continuous improvement, Sealey reserves the right to alter data, specifications, and component parts without prior notice. If you require information regarding alternative versions of this product, please contact the manufacturer directly.
Contact Information
For technical support or spare parts inquiries, you can contact Sealey Group at:
- Phone: 01284 757500
- Email: [email protected]
- Website: www.sealey.co.uk
- UK Address: Jack Sealey Ltd, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk, IP32 7AR
- EU Address: Jack Sealey (EU) Ltd, Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
Official resources from the manual
Manufacturer information
Sealey Group
Practical help
Common problems
Component wear or failure
Refer to the exploded diagram to identify the specific part number (e.g., Rotor Blades, O-Rings, or Bearings) and replace using a competent technician.
Air leakage
Inspect O-rings (items 21, 24, 27) and the inlet bushing (item 29) for signs of wear or damage.
Before use
- Verify the model number is SA622.V2.
- Ensure the keyless chuck is tightened securely before operation.
- Check that the safety lever assembly (item 19) moves freely.
- Confirm the air supply is clean and regulated to the tool's requirements.
Specs in practice
- Chuck Capacity
- 10mm, indicating the maximum diameter of the drill bit shank the tool can accept.
- Rotor Blades
- Set of 4 blades (item 14) that drive the motor; these are wear items that may require periodic replacement.
Images and diagrams

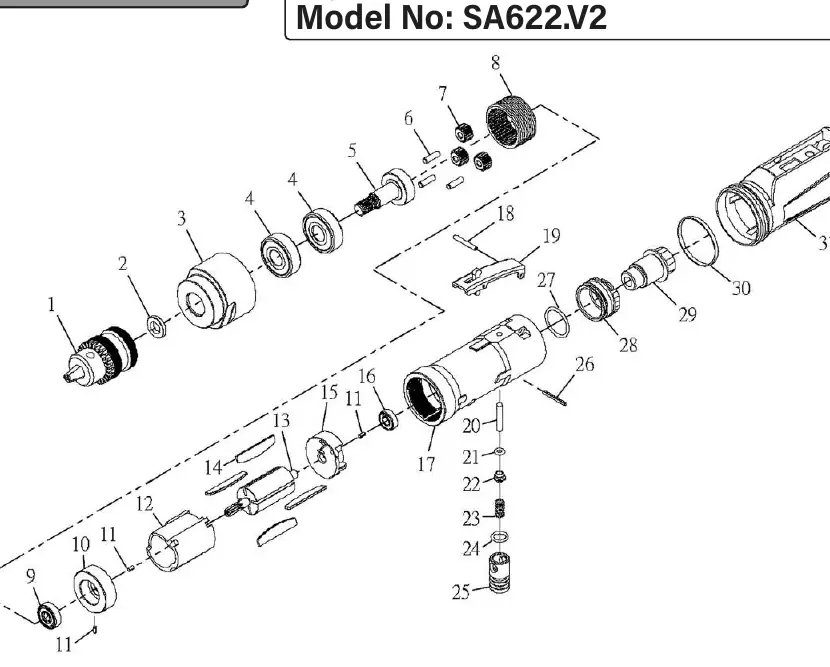

- The diagram provides an exploded view of the drill, showing the assembly order of the motor housing, rotor, planet gears, and chuck mechanism.
- Numbered items in the diagram correspond directly to the provided parts list for accurate identification.
Model compatibility
- Spare parts are specific to the SA622.V2 model; ensure part numbers match exactly before ordering.
- Alternative versions of this product may exist; contact Sealey if the diagram does not match your specific unit.
