User Manual for Segway ZT3 Pro Electric KickScooter

Quick guide from the manual

This guide provides essential information for operating your Segway ZT3 Pro electric kickscooter. Always wear a helmet, elbow pads, and knee pads when riding. Ensure the scooter is activated via the Segway-Ninebot app before use. If the scooter is not powered on for 7 consecutive days, the battery enters sleep mode; charge it for three seconds to wake it up.

Device description

The scooter features a main frame, handlebar with integrated controls, front and rear disc brakes, and front/rear suspension. Key components include the folding mechanism, kickstand, battery compartment, and charging port.

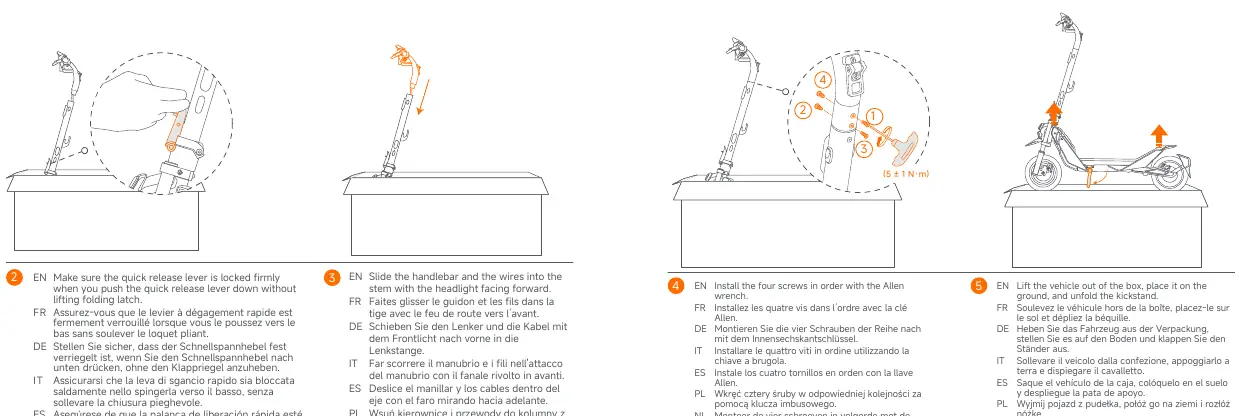

Assembly

1. Unfold the stem and close the quick-release lever until the folding latch reaches the bottom. Ensure it is locked firmly without lifting the latch.2. Slide the handlebar and wires into the stem with the headlight facing forward.3. Install the four screws in order using the provided Allen wrench.4. Lift the vehicle out of the box, place it on the ground, and unfold the kickstand.

Handlebar functions

The handlebar includes the following controls:

• Mode switching: Press to change speed mode.
• Direction Indicator: Press to signal left/right. Hold to toggle emergency flashers.
• Custom Button: Default is Automatic Hill Hold. Customize via the Segway-Ninebot app.
• Bell: Press to sound the bell.
• Power/Headlight: Press to power on/off. After powering on, press to toggle the headlight.
• Throttle: Twist or press to accelerate.

Dashboard

The dashboard displays critical information including:

• Speedometer: Current speed and battery power during charging.
• Battery Level: Total power represented by 10 bars.
• Warning Icon: Indicates detected errors.
• Traction Control System (TCS): Indicates if TCS is enabled.
• Bluetooth: Indicates connection to a mobile device.

Charging

1. Open the charging port rubber plug.2. Insert the charge plug.3. The scooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).4. Fasten the rubber plug when finished.

Security features

The scooter supports several security features configurable via the Segway-Ninebot app:

• Apple Find My: Allows tracking of the vehicle.
• CodeLock: Digital or pattern-based password protection.
• AirLock: Bluetooth-based unlocking.
• Abnormal Movement Alert: Triggers an alarm if the locked vehicle is moved.

Riding

To start, fold the kickstand, stand on the footboard with one foot, and push off with the other. Press the throttle to accelerate once balanced. Note that the motor will not engage until the scooter reaches 3 km/h (1.9 mph). Slow down by releasing the throttle and squeezing the brake lever.

Safety warnings

• Do not ride on public roads, motorways, or highways unless local laws permit.
• Do not use a mobile phone or wear earphones while riding.
• Do not carry passengers or heavy objects on the handlebar.
• Do not ride up/down stairs or jump over obstacles.
• Do not ride in the rain or through puddles.
• Do not touch the hub motor or brake after riding as they may be hot.
