User Manual for Sencor SMF 2020WH Milk Frother and Warmer
Comprehensive user guide for the Sencor SMF 2020WH milk frother and warmer. Includes operating instructions, cleaning procedures, safety guidelines, and technical specifications.
Quick answers from the manual
Quick answer
- The Sencor SMF 2020WH is designed for frothing and heating milk. It features three modes: frothing and heating (approx. 2 min), heating only (approx. 3 min), and frothing only (approx. 1.5 min). p. 8
Key actions
- Frothing and heating milk p. 8
- Heating milk without frothing p. 8
- Frothing milk without heating p. 8
First start
- Clean the interior of the kettle and wash the attachments and lid with warm water and neutral detergent before the first use. p. 7
Problems and fixes
Appliance stops working (indicator flashes blue)
The unit has been used 5 times in sequence. Wait 5 minutes for the safety reset.
p. 8Maintenance and reset
- Wait 5 minutes for the appliance to switch to stand-by mode if it has been used 5 times in sequence. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 200 ml | Maximum volume for heating | p. 9 |
| Power Input | 450 W | Rated power | p. 9 |
Where to find it in the PDF
- Safety Instructions p. 4, 5
- Description p. 6
- Operating Instructions p. 7, 8
- Cleaning p. 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sencor SMF 2020WH is designed for frothing and heating milk. It features three distinct operating modes: frothing and heating, heating only, and frothing only. Always ensure the correct attachment is installed before operation and do not exceed the maximum fill levels marked inside the kettle.

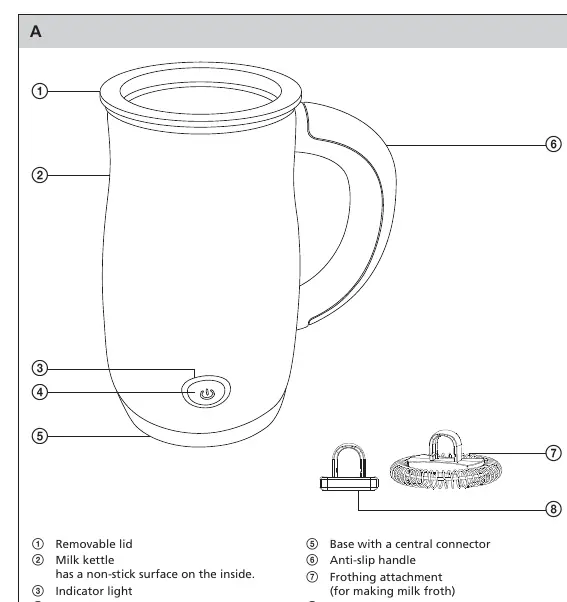

Description of the milk frother
The appliance consists of the following main components:
- Removable lid (A1)
- Milk kettle (A2) with a non-stick interior surface
- Indicator light (A3)
- Power button (A4)
- Base with a central connector (A5)
- Anti-slip handle (A6)
- Frothing attachment (A7) for creating milk froth
- Stirring attachment (A8) for heating milk without frothing
Before first use
Before using the appliance for the first time, perform the following steps:
- Remove all packaging materials.
- Wipe the inside of the kettle with a cloth dampened in warm water and neutral kitchen detergent.
- Wash the attachments (A7, A8) and the lid (A1) in warm water with neutral detergent, rinse under running water, and dry thoroughly.
Using the milk frother and warmer
Follow these steps to operate the device:
- Place the base on a stable, even, and clean surface.
- Select the appropriate attachment (A7 for frothing, A8 for stirring) and attach it to the shaft inside the kettle.
- Pour cooled milk into the kettle. Important: Do not exceed the 100 ml mark for frothing or the 200 ml mark for heating.
- Place the kettle on the base and plug it into a power socket. The indicator light will turn red.
- Select the operating mode:
- Frothing and heating: Press the power button once. The indicator will turn blue. Duration: approx. 2 min.
- Heating without frothing: Press the power button once. The indicator will turn blue. Duration: approx. 3 min.
- Frothing without heating: Press and hold the power button for 2 seconds. The indicator will flash blue. Duration: approx. 1.5 min.
Cleaning and maintenance
Always disconnect the appliance from the power socket and allow it to cool down before cleaning.
- Remove the attachment and wash it in warm water with neutral detergent.
- Clean the lid in the same manner. Note: Do not wash attachments or the lid in a dishwasher.
- Wipe the inside of the kettle with a damp cloth and neutral detergent, then wipe dry.
- Clean the outer surface of the kettle and the base using a dry cloth or a lightly dampened cloth if necessary.
- Never use abrasive cleaning products, solvents, or steel wool.
Safety and troubleshooting
If the appliance is turned on 5 times in sequence without a break, the indicator light will flash blue and the button will be temporarily disabled as a safety feature. Wait 5 minutes for the unit to reset to stand-by mode. Do not overfill the kettle, as milk may splash out during operation.
Manufacturer information
Sencor
Practical help
Common problems
Appliance stops working after 5 consecutive uses
This is a safety feature to prevent damage. Wait 5 minutes for the unit to cool down and reset to stand-by mode.
Milk splashing out during operation
The kettle is overfilled. Ensure milk level is below the 100ml mark for frothing or 200ml mark for heating.
Before use
- Remove all packaging materials.
- Clean the inside of the kettle with a damp cloth.
- Wash attachments and lid in warm water with neutral detergent.
- Ensure the base is on a stable, dry surface.
Specs in practice
- Operating Temperature
- Heats milk to approximately 65°C to maintain flavor.
Images and diagrams
- A1: Removable lid
- A2: Milk kettle with non-stick surface
- A3: Indicator light
- A4: Power button
- A5: Base with central connector
Model compatibility
- Use milk with higher fat content (ideally 3.5%) for better frothing results.
- Always use a new batch of cooled milk for each heating operation.
