User Manual for Sencor SCM 2224BL Portable Cooler
Comprehensive user guide for the Sencor SCM 2224BL portable cooler. Includes setup instructions for 12V and 230V power, operating modes (cooling/heating), maintenance tips, and technical specifications.
PDF source: SK · summary: English
Quick answers from the manual
Quick answer
- The Sencor SCM 2224BL is a portable cooler that operates on both 12V DC and 230V AC. It features cooling (up to 18°C below ambient) and heating (50-60°C) capabilities. p. 7, 8
Key actions
- Select operating mode p. 7
- Connect power p. 7
First start
- Clean the interior p. 7
Show 4 more answers Show less
Problems and fixes
Unit not cooling/heating
Check power connections and ensure ventilation is not blocked.
p. 4, 7Maintenance and reset
- Cleaning p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Volume | 24 l | Internal storage capacity | p. 8 |
| Power Consumption | 60 W | Rated power input | p. 8 |
Where to find it in the PDF
- Product Overview p. 6
- Usage Instructions p. 7
- Technical Data p. 8
Table of contents
Manual images
Click an image to enlargeImportant Information
The Sencor SCM 2224BL is a portable cooler designed for cooling food and beverages or keeping them warm. It can be powered by a 12V DC source (e.g., car cigarette lighter) or a 230V AC mains outlet. The device features cooling and heating modes, with an additional ECO mode for energy saving during cooling.

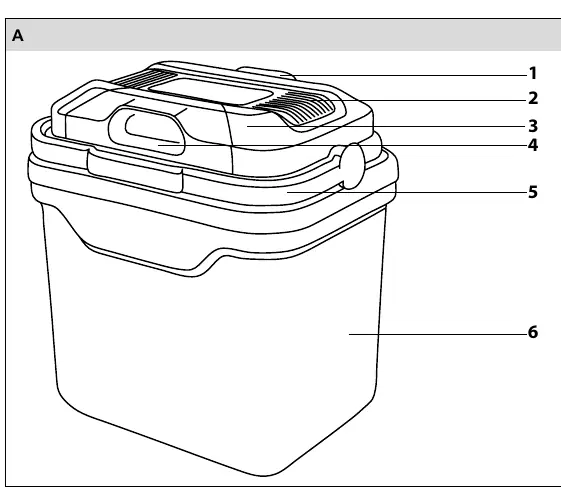

Product Description
The cooler consists of the following main components:
- A1: Control panel
- A2: Ventilation openings
- A3: Lid
- A4: Handle
- A5: Grip
- A6: Storage compartment (24 liters)
Control Panel
The control panel allows you to configure the power source and operating mode:
- B1: 230V power input socket
- B2: 12V power input socket
- B3: MAX/ECO switch (for cooling)
- B4: Operating mode switch (HOT/OFF/COLD)
- B5: COLD mode indicator light
- B6: WARM mode indicator light
Operation
Follow these steps to operate the cooler:
- Place food and beverages into the storage compartment (A6). It is recommended to pre-cool or pre-heat items before placing them in the cooler.
- Close the lid (A3) and place the cooler on a stable surface with adequate ventilation space around it.
- Connect the appropriate power cable:
- 12V: Insert the plug into the car cigarette lighter and the connector into socket B2.
- 230V: Insert the plug into a mains outlet and the connector into socket B1.
- Use switch B4 to select the desired mode: COLD (cooling) or HOT (heating).
- If in COLD mode, use switch B3 to select MAX (maximum cooling) or ECO (energy saving).
- After use, set switch B4 to OFF and disconnect the power cable.
Cleaning and Maintenance
Always disconnect the power cable before cleaning. Clean the interior with a soft sponge dampened with warm water and wipe dry. Do not use abrasive cleaners or solvents. Ensure no water enters the ventilation openings. Store the unit in a clean, dry, and well-ventilated place.
Technical Specifications
- Power Supply: 12V DC / 230V AC
- Power Consumption: 60W
- Cooling Capacity: Up to 18°C below ambient temperature
- Heating Capacity: 50°C – 60°C
- Volume: 24 liters
- Dimensions: 398 x 430 x 300 mm
- Weight: 8 kg
Manufacturer information
Sencor
Practical help
Common problems
Cooler does not cool or heat
Check if the power cable is securely connected to both the power source and the cooler. Ensure the ventilation openings are not blocked.
Unit not working after changing modes
Ensure the unit was switched off for at least 30 minutes before changing operating modes.
Before use
- Remove all packaging materials and promotional labels.
- Inspect the unit and cables for any signs of damage.
- Clean the interior with a soft, damp sponge.
- Ensure the unit is placed on a stable, level surface.
- Verify that there is sufficient space around the unit for ventilation.
Show more Show less
Specs in practice
- Cooling Capacity
- The unit can cool contents to a temperature up to 18°C lower than the surrounding ambient temperature.
- Heating Capacity
- The unit can maintain temperatures between 50°C and 60°C.
Images and diagrams
- Diagram A shows the external parts of the cooler, including the lid, handle, and ventilation.
- Diagram B details the control panel, showing the power inputs (AC/DC) and mode switches (MAX/ECO, HOT/OFF/COLD).
Model compatibility
- Compatible with 12V DC vehicle power outlets.
- Compatible with 230V AC standard household outlets.
- Not suitable for use in high-humidity environments like laundry rooms or bathrooms.
