User Manual for Senix CSX2-M-EU 20V MAX Cordless Chainsaw

Quick guide for the Senix CSX2-M-EU 20V MAX Cordless Chainsaw. Includes assembly, operation, chain tensioning, maintenance, and troubleshooting steps.

Quick answers from the manual

Quick answer

  • The Senix CSX2-M-EU is a 20V MAX cordless chainsaw designed for limbing, felling, and woodcutting. It features a 25 cm guide bar and automatic chain lubrication. p. 17

Key actions

  • Installing the saw chain and guide bar p. 18
  • Tensioning the saw chain p. 19
  • Filling bar and chain oil p. 18

First start

  • Charge the battery fully before first use. p. 21
  • Prime the oiler before first use. p. 19

Problems and fixes

Motor does not run

Check chain brake, battery charge, and trigger lock-out.

p. 23

Maintenance and reset

  • Clean debris from battery port and chain area after use. p. 22

Technical specifications

Parameter Value Meaning Pages
Rated voltage 18 V d.c. (20V Max) Operating voltage p. 17
Guide bar length 25 cm Length of the bar p. 17
Oil capacity 150 ml Oil tank volume p. 17

Where to find it in the PDF

  • Safety Instructions p. 6, 7, 8, 9
  • Assembly p. 18
  • Operation p. 19, 20, 21
  • Maintenance p. 22
  • Troubleshooting p. 23
Table of contents

Manual images

Click an image to enlarge
Parts diagram of the chainsaw Page 2 Trigger and lock-out controls Page 3

Quick guide from the manual

This manual provides essential instructions for the safe and efficient operation of the Senix CSX2-M-EU 20V MAX Cordless Chainsaw. Always read the safety instructions before use. The chainsaw is intended for limbing, felling, woodcutting, and removing buttress roots.

Assembly

Before assembly, ensure the battery pack is removed. 1. Loop the saw chain into the slot around the guide bar, ensuring the correct running direction. 2. Mount the chain and guide bar to the unit. 3. Replace the side cover and lightly tighten the side cover knob. 4. Adjust the chain tension using the tensioning knob until the chain can be raised approximately 2-3 mm from the guide bar in the center. 5. Thoroughly tighten the side cover nut.

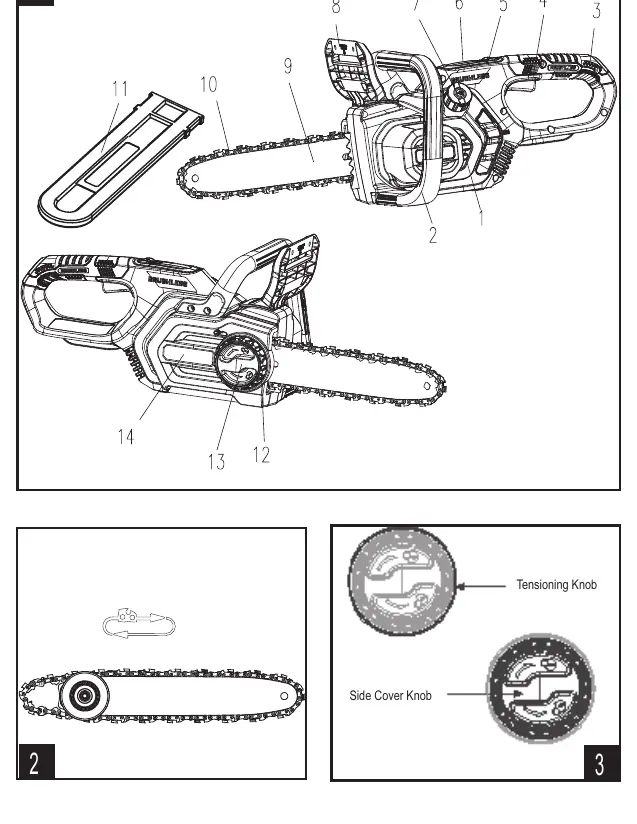

Parts diagram of the chainsaw
Parts diagram of the chainsaw

Operation

1. Fill the oil tank with bar and chain oil before use. 2. Install the battery pack until it clicks. 3. To start, press the trigger lock-out, then squeeze the switch trigger. 4. To stop, release the switch trigger. 5. Always test the chain brake before operation by pushing the guard forward; the motor and chain should stop immediately.

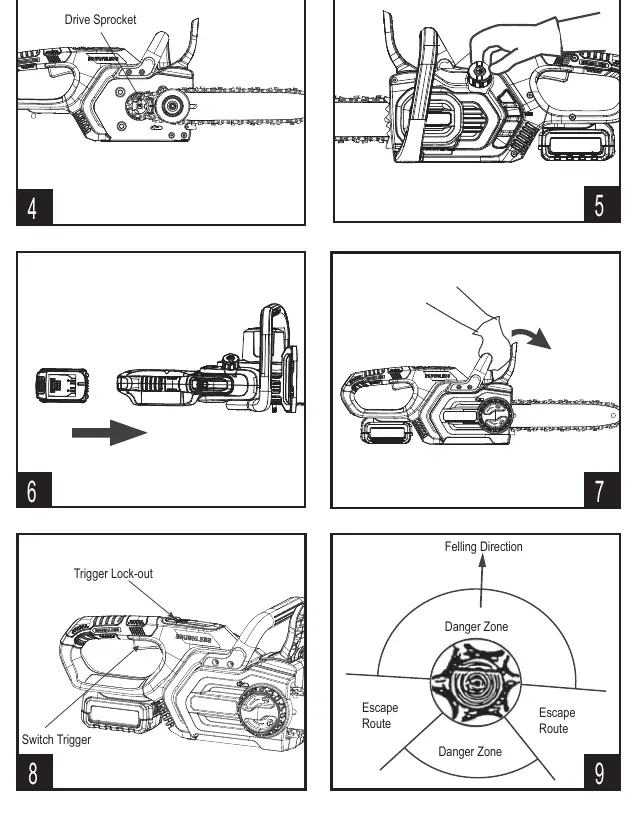

Trigger and lock-out controls
Trigger and lock-out controls

Sawing Techniques

  • Felling: Plan an escape path diagonally to the rear of the expected line of fall. Make a notch 1/3 the diameter of the tree, then a felling back cut at least 50 mm higher than the horizontal notch.
  • Limbing: Leave larger lower limbs to support the log off the ground. Cut branches under tension from the bottom up.
  • Bucking: Support the log if possible. If supported at one end, cut 1/3 diameter from the underside, then finish from the top. If supported at both ends, cut 1/3 from the top, then finish from the bottom.

Maintenance

Always remove the battery pack before cleaning or maintenance. Clean debris from the battery port and chain area after each use. Do not sharpen the chain yourself unless experienced; use an authorized service. Store in a dry place and keep the battery charged at least once per year.

Troubleshooting

If the motor does not run, check if the chain brake is engaged, the battery is discharged, or the trigger lock-out is not properly operated. If the chain does not cut properly, check the chain tension, sharpness, or oil level.

Practical help

Common problems

Motor does not run or runs intermittently

Check if the chain brake is engaged, battery is discharged, or trigger lock-out is not properly operated.

Battery pack does not charge

Check for dirty contacts, ensure the battery is within operating temperature, or replace if at the end of its life.

Chainsaw does not cut properly

Adjust chain tension, sharpen or replace the chain, or check oil level.

Motor runs, but chain does not rotate

Reinstall the chain, ensuring drive links are fully seated on the sprocket.

Before use

  • Check chain tension (should be 2-3 mm lift from bar).
  • Ensure oil tank is filled with bar and chain oil.
  • Check that the chain brake is in the operating position.
  • Ensure battery pack is fully charged.
  • Wear appropriate personal protective equipment (eye, ear, respiratory protection, gloves).

Specs in practice

Rated voltage
18 V d.c. (20V Max) - The power output of the battery system.
Guide bar length
25 cm - The length of the cutting bar.
Oil capacity
150 ml - The volume of the oil tank for chain lubrication.

Images and diagrams

  • Tensioning Knob: Used to adjust the tightness of the saw chain.
  • Side Cover Knob: Secures the side cover to the chainsaw body.
  • Switch Trigger & Lock-out: Safety mechanism to prevent accidental starting.
  • Felling Direction: Indicates the planned path for the tree to fall.

Model compatibility

  • Use only original battery packs intended for this machine.
  • Only charge with the specified charger (CHX2 or CHQX2).
  • Do not use the chainsaw for cutting metal, plastic, or masonry.
