Simon Rack Habitat Mini 160x60x30cm Assembly Guide
Quick assembly guide for the Simon Rack Habitat Mini 160x60x30cm shelving unit. Includes step-by-step installation instructions, component list, and load capacity details.
Table of contents
Quick guide from the manual
This document provides assembly instructions for the Simon Rack Habitat Mini shelving unit. The unit is designed for storage and features a bolt-based assembly system. Ensure you have a clear, flat workspace before beginning assembly.
Components
The package includes the following main components:
- 2 x Side panels (160 cm height)
- 5 x Shelves (60 x 30 cm)
- Bolts and hardware for assembly
Assembly Instructions
Follow these steps to assemble your shelving unit:
- Preparation: Lay out the two side panels and the five shelves on a flat surface. Organize the bolts and hardware.
- Initial Frame: Align the side panels with the shelves according to the diagram.
- Bolting: Insert bolts through the side panels into the shelves. Ensure all connections are aligned correctly.
- Tightening: Secure all bolts firmly. Do not overtighten to avoid damaging the metal structure.
- Final Positioning: Once all shelves are attached, carefully lift the unit into its upright position.
Safety and Load Capacity
The Simon Rack Habitat Mini is designed for specific load limits to ensure stability and safety:
- Maximum Load: 100 kg per shelf.
- Load Distribution: The load must be uniformly distributed across the shelf surface. Do not concentrate heavy items in the center or on one side.
- Stability: Always place the unit on a level floor.
Practical help
Common problems
Unit wobbles after assembly
Ensure the floor is level and all bolts are tightened equally. Check that the unit is standing on a flat surface.
Difficulty aligning shelves
Do not fully tighten the bolts until all shelves are in place. This allows for minor adjustments during assembly.
Before use
- Verify all components are present (2 side panels, 5 shelves, hardware).
- Ensure you have a clear, flat workspace.
- Check that the floor surface is level.
- Have a screwdriver or appropriate tool ready for bolt tightening.
Specs in practice
- Load Capacity
- 100 kg per shelf, provided the load is uniformly distributed.

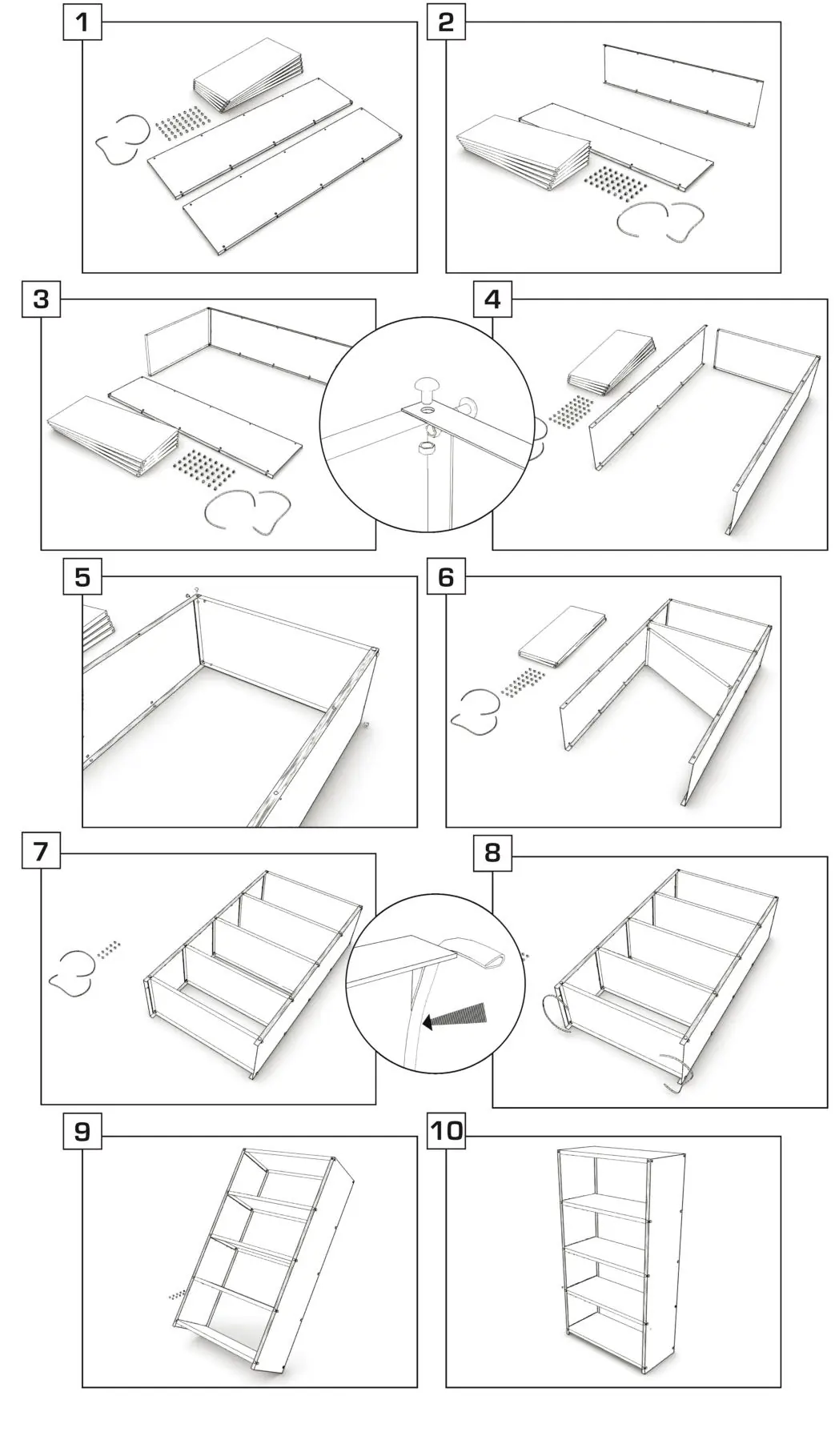

Images and diagrams
- Steps 1-2: Layout of panels and shelves.
- Steps 3-8: Sequential bolting of shelves to the side frame.
- Steps 9-10: Final upright positioning of the assembled unit.
Model compatibility
- Designed for indoor use.
- Not intended for industrial heavy-duty storage beyond the specified 100kg per shelf limit.
