Simon Rack PLUS 5/500-3 Shelving Unit Assembly Guide
Comprehensive assembly guide for the Simon Rack PLUS 5/500-3 shelving unit. Includes parts list, step-by-step installation instructions, and load capacity specifications.
Quick answers from the manual
Quick answer
- The Simon Rack PLUS 5/500-3 is a 200x100x50 cm shelving unit with a 1000 kg total load capacity. Assembly requires a rubber mallet to lock the beams into the uprights following the 16-step diagram. p. 1, 2
Key actions
- Assemble the unit using a rubber mallet to secure beams into uprights. p. 2
- Install corner plates at the base for stability. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Shelf Load Capacity | 200 kg | Maximum weight per shelf | p. 1 |
| Total Load Capacity | 1000 kg | Maximum weight for the whole unit | p. 1 |
Where to find it in the PDF
- Product Overview and Parts List p. 1
- Assembly Instructions p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Simon Rack PLUS 5/500-3 is a modular shelving unit designed for storage. The assembly process involves connecting metal uprights and beams using a hammer. Ensure the unit is placed on a level surface and do not exceed the maximum load capacity of 200 kg per shelf or 1000 kg total.

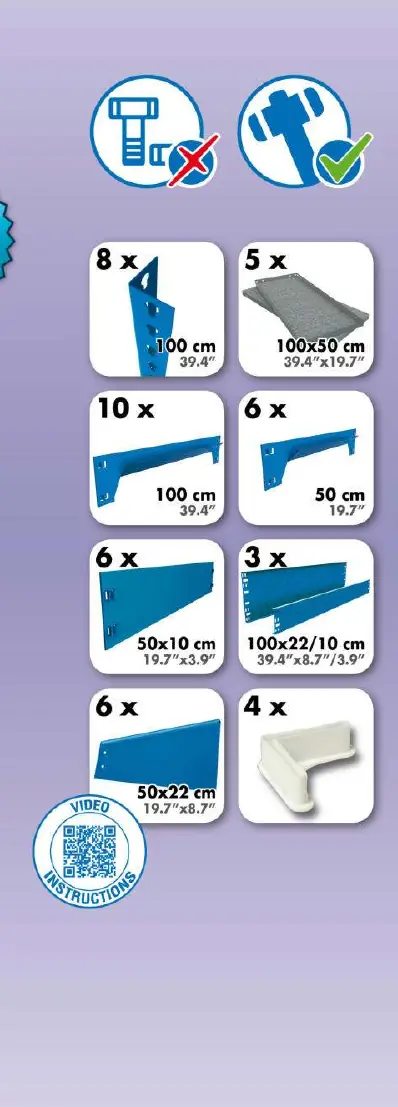

Parts list
Before beginning assembly, verify that all components are present:
- A: 10 units (Uprights)
- B: 6 units (Beams)
- C: 4 units (Corner plates)
- D: 8 units (Beams)
- E: 5 units (Shelves)
Assembly instructions
Follow these steps to assemble the unit:
- Lay out the components.
- Connect the beams (D) to the uprights (A) using the provided slots.
- Use a rubber mallet to secure the connections.
- Attach the corner plates (C) to the bottom of the uprights for stability.
- Continue building the structure upwards, adding beams (B) and shelves (E) as shown in the diagram.
- Ensure all connections are tight and the structure is stable before loading.
Load capacity and safety
Adhere to the following weight limits to ensure safety:
- Maximum load per shelf: 200 kg (441 lb)
- Total unit capacity: 1000 kg (2205 lb)
- Always distribute weight evenly across the shelves.
- Place heavier items on the lower shelves.
Practical help
Common problems
Unstable shelving unit
Ensure all beams are fully seated in the upright slots using a rubber mallet and that corner plates are installed correctly.
Difficulty inserting beams
Ensure the uprights are not bent and the beam hooks are aligned with the slots before tapping with a mallet.
Before use
- Verify all parts (A, B, C, D, E) are present according to the parts list.
- Ensure the floor surface is level.
- Use a rubber mallet for assembly to avoid damaging the metal finish.
- Check that all shelf beams are securely locked into the uprights.
- Verify the total load does not exceed 1000 kg.
Specs in practice
- Shelf Load Capacity
- Maximum weight allowed per individual shelf level (200 kg).
- Total Capacity
- Maximum combined weight for the entire unit (1000 kg).
Images and diagrams

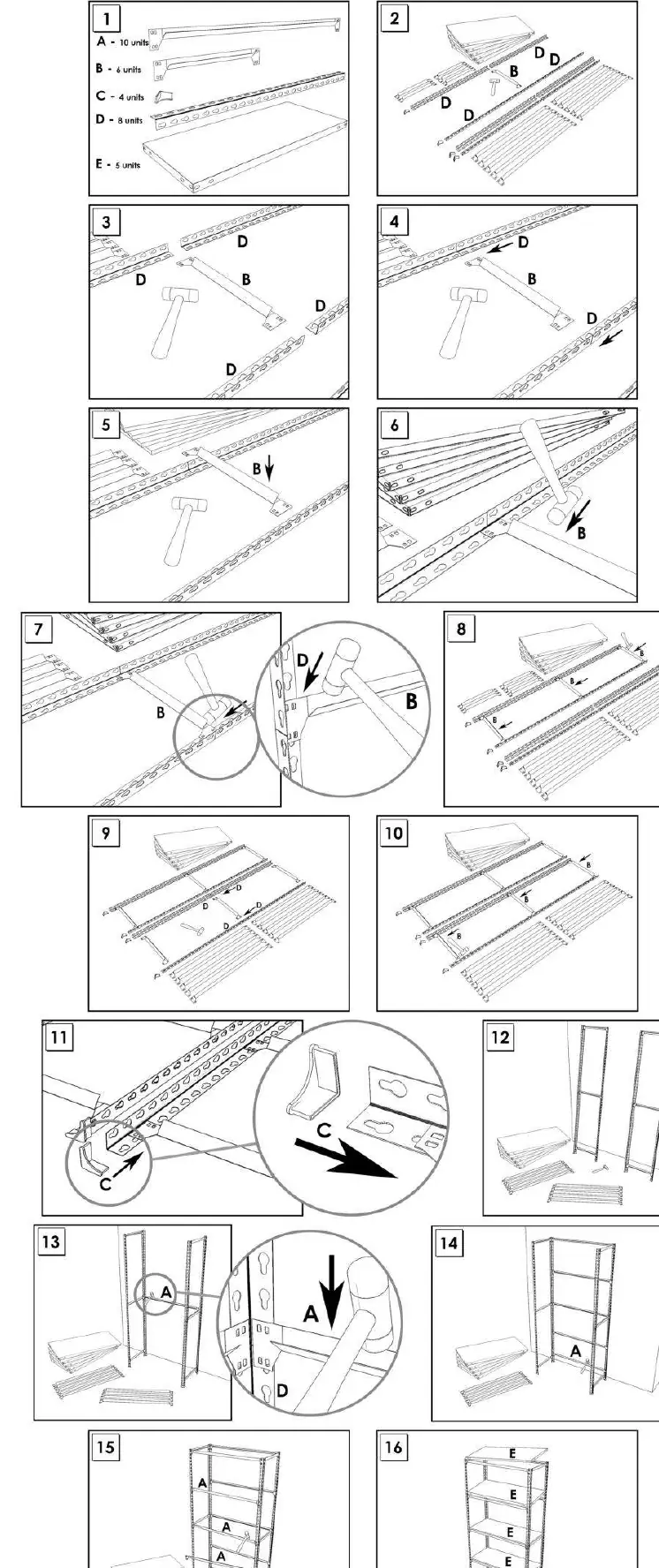

- The assembly diagram shows a 16-step process using a hammer to lock beams into uprights.
- Corner plates (C) are essential for base stability.
Model compatibility
- Designed for use as a standalone shelving unit.
- Not intended for outdoor use without proper protection.
