Smappee EV Wall Lite EV Charging Station User Guide
Quick guide for the Smappee EV Wall Lite charging station. Includes technical specifications, installation requirements, safety features, and operational details.
PDF source: NL · summary: English
Quick answers from the manual
Quick answer
- The Smappee EV Wall Lite is a wall-mounted EV charging station with a single Type 2 socket, supporting up to 22kW charging capacity and various activation methods like RFID and Plug & Charge. p. 1, 2
Key actions
- Charging activation methods p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max charging capacity | 22 kW | Maximum power output | p. 2 |
| Output power | 230 V/400 V, 32 A | Electrical output specifications | p. 2 |
| Dimensions | 300 x 300 x 110 mm | Physical size of the unit | p. 2 |
| Weight | 6.8 kg | Weight of the unit | p. 2 |
Show 1 more answers Show less
Where to find it in the PDF
- Product Overview and Features p. 1
- Technical Specifications p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

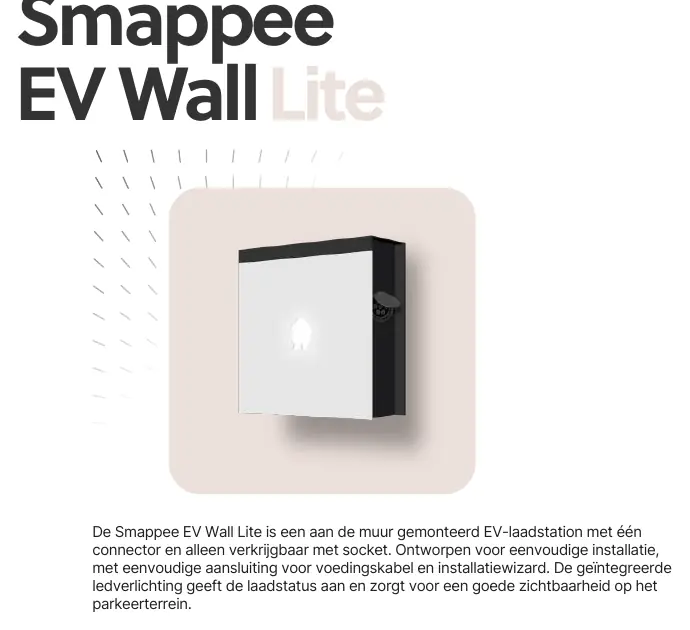

The Smappee EV Wall Lite is a wall-mounted electric vehicle charging station designed for simple installation and operation. It features a single Type 2 socket and integrated LED status lighting. The unit supports various charging activation methods, including QR code, Plug & Charge, and RFID.
Technical Specifications
- Dimensions: 300 x 300 x 110 mm
- Weight: 6.8 kg
- Operating Temperature: -25 °C to 40 °C
- Storage Temperature: -25 °C to 60 °C
- Relative Humidity: 0% - 95% (non-condensing)
- Operating Altitude: 0 - 2,000 m
- Protection Rating: IP54 / IK10
- Charging Capacity: Max 22 kW
- Output: 230 V / 400 V, 32 A
- Charging Mode: Mode 3 (IEC 61851)
Installation Requirements
The installation must comply with local regulations. The following external protection measures are required:
- Circuit Breaker: Max 40 A, curve B or C.
- Residual Current Device (RCD): 30 mA type A or B, depending on local regulations.
- Mounting: Wall-mounted installation.
Connectivity and Features
- Communication: Wi-Fi 2.4 GHz, Ethernet 100BASE-T.
- Protocols: OCPP 1.6 J (upgradeable to 2.0.1).
- Metering: kWh-meter compliant with IEC 62053-21.
- Safety: Integrated leakage current protection (6 mA DC / 30 mA RCD type A).
- Access Control: RFID and whitelisting capabilities for user management.
Practical help
Before use
- Ensure the power supply meets the 230V/400V requirements.
- Verify that a max 40A circuit breaker (curve B or C) is installed.
- Confirm that a 30mA RCD type A or B is installed according to local regulations.
- Ensure the mounting surface is suitable for a 6.8 kg unit.
- Check for Wi-Fi or Ethernet connectivity for smart features.
Images and diagrams
- The device features an integrated LED light on the front to indicate charging status.
- The charging socket is located on the right side of the unit.
Show more Show less
Model compatibility
- Compatible with Wi-Fi 2.4 GHz and Ethernet 100BASE-T networks.
- Supports OCPP 1.6 J with a planned upgrade path to 2.0.1.
- Shutter variant is available specifically for the French market.
