Somogyi FLB 10C Rechargeable COB LED Floodlight
Instruction manual for the Somogyi FLB 10C rechargeable COB LED floodlight, covering installation, operation, maintenance, and safety guidelines.
Table of contents
Product Overview
The Somogyi FLB 10C is a weather-resistant, rechargeable COB LED floodlight designed for illuminating buildings, yards, and outdoor spaces. Its battery-powered design ensures maximum mobility, while the strong, magnetic, fold-out carrying frame allows for versatile fastening, hanging, and support options. The unit features two separately movable light sources that can be adjusted to point in different directions, providing flexible lighting solutions.
Installation and Use
The luminaire is delivered fully assembled and does not require installation. To charge the device, use the provided micro-USB cable with a 5V / min. 1A USB adapter (not included). The luminaire cannot be used while charging. During the charging process, the indicator LEDs will flash red, turning solid green once the battery is fully charged. After charging, ensure the rubber tab is securely closed over the charging socket to maintain weather resistance.
The light is operated via a button on the back, which cycles through the following modes:
- Both light sources at 100% brightness (10W / 1000 lumens)
- Both light sources at 50% brightness (5W / 500 lumens)
- One light source at 100% brightness (5W / 500 lumens)
- The other light source at 100% brightness (5W / 500 lumens)
- Turning off
Additionally, the luminaire features a USB-A socket that can be used to charge external devices.
Cleaning and Maintenance
To ensure optimal performance, clean the luminaire at least once a month, depending on usage and contamination levels. Always power off the unit before cleaning. Use a slightly moistened cloth to wipe the outer surface. Do not use aggressive cleaning agents, and ensure no water enters the unit or reaches the electrical components. The insulating rubber feet must remain in place.
Safety and Disposal
Do not use the product if the protective shield is cracked or broken; in such cases, the entire unit must be discarded. The LED light sources are not replaceable. Always maintain a minimum distance of 0.5 meters from the illuminated surface. Dispose of the device and its batteries separately from household waste at designated electronic waste collection points to protect the environment.
Manufacturer information
Somogyi Elektronic Kft.
Practical help
Common problems
The lamp is not lighting.
Check the switch on the back of the lamp and charge the battery if necessary.
Before use
- Ensure the device was not damaged during transport.
- Obtain a 5V / min. 1A USB adapter for charging.
- Verify the protective shield is intact.
- Ensure the insulating rubber feet are in place.
Specs in practice
- Light Source
- 2 x 5W COB LED
- Charging Time
- Approximately 5 hours at 1A
- Operating Temperature
- -10 to +40 degrees Celsius

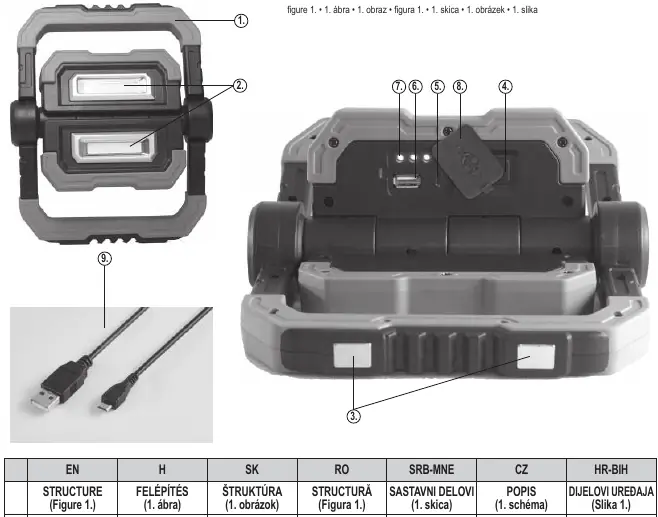

Images and diagrams
- 1. Foldable carrying frame
- 2. Foldable COB LED luminaires
- 3. Magnets on the carrying frame
- 4. Push-button for mode selection
- 5. Micro-USB charging socket
Model compatibility
- Requires a 5V / min. 1A USB adapter for charging (not included).
- USB-A socket allows charging of external devices.
