User Manual for Sony FE 50mm F1.4 GM Lens
Quick guide for the Sony FE 50mm F1.4 GM lens. Learn how to attach the lens, adjust aperture settings, use the focus hold button, and maintain your equipment.
Table of contents
Quick guide from the manual
This guide provides essential information for operating the Sony FE 50mm F1.4 GM lens. Always ensure the camera is turned off before attaching or detaching the lens. The lens is designed for Sony E-mount cameras and is compatible with 35mm format image sensors.
Identifying the parts
The lens features several controls, including the focusing ring, aperture ring, focus hold button, and focus mode switch. Refer to the provided diagrams for the exact location of the lens hood index, mounting index, and aperture click switch.
Attaching and detaching the lens
To attach:
- Remove the rear lens cap and the camera body cap.
- Align the white index on the lens barrel with the white index on the camera (mounting index).
- Insert the lens into the camera mount and rotate it clockwise until it locks.
- Remove the front lens cap.
To detach:
- Attach the front lens cap.
- Hold down the lens release button on the camera.
- Rotate the lens counterclockwise until it stops, then detach the lens.
Focusing
You can switch between Auto Focus (AF) and Manual Focus (MF) using the focus mode switch on the lens. For AF photography, ensure both the camera and lens are set to AF. In MF mode, turn the focusing ring to adjust the focus while looking through the viewfinder.
Adjusting the aperture
The aperture ring allows manual adjustment between f/1.4 and f/16. Aligning the ring to 'A' sets the camera to auto iris mode. You can lock the aperture ring at 'A' or limit the rotation range using the IRIS LOCK switch. For movie recording, set the aperture click switch to 'OFF' to reduce the sound of the aperture ring during adjustment.
Notes on use
- Sunlight: Do not leave the lens exposed to the sun or bright light sources to prevent internal damage or fire.
- Rattling: If the lens rattles when shaken while the camera is off, this is normal and does not indicate a malfunction.
- Vignetting: If corners of the screen appear dark, close the aperture by 1 to 2 stops.
- Water-proof: The lens is not waterproof; keep water drops away from the lens.
Manufacturer information
Sony Group Corporation
Practical help
Common problems
Lens rattles when shaken
This is normal behavior due to internal lens groups and does not indicate a malfunction.
Shadow appears at the bottom of the picture
The lens hood or flash may be blocking the light. Remove the lens hood or adjust the focal length/shooting distance.
Dark corners in images (Vignetting)
Close the aperture by 1 to 2 stops to reduce this effect.
Before use
- Ensure the camera is turned off before attaching or detaching the lens.
- Align the white index on the lens with the white index on the camera.
- Rotate the lens clockwise until it clicks into place.
- Remove both front and rear lens caps.
- Check that the focus mode switch is set to the desired mode (AF or MF).
Specs in practice
- Focal length
- 50mm (75mm equivalent on APS-C cameras).
- Minimum focus (AF)
- 0.41m (1.35 ft).
- Minimum aperture
- f/16.
- Filter diameter
- 67mm.

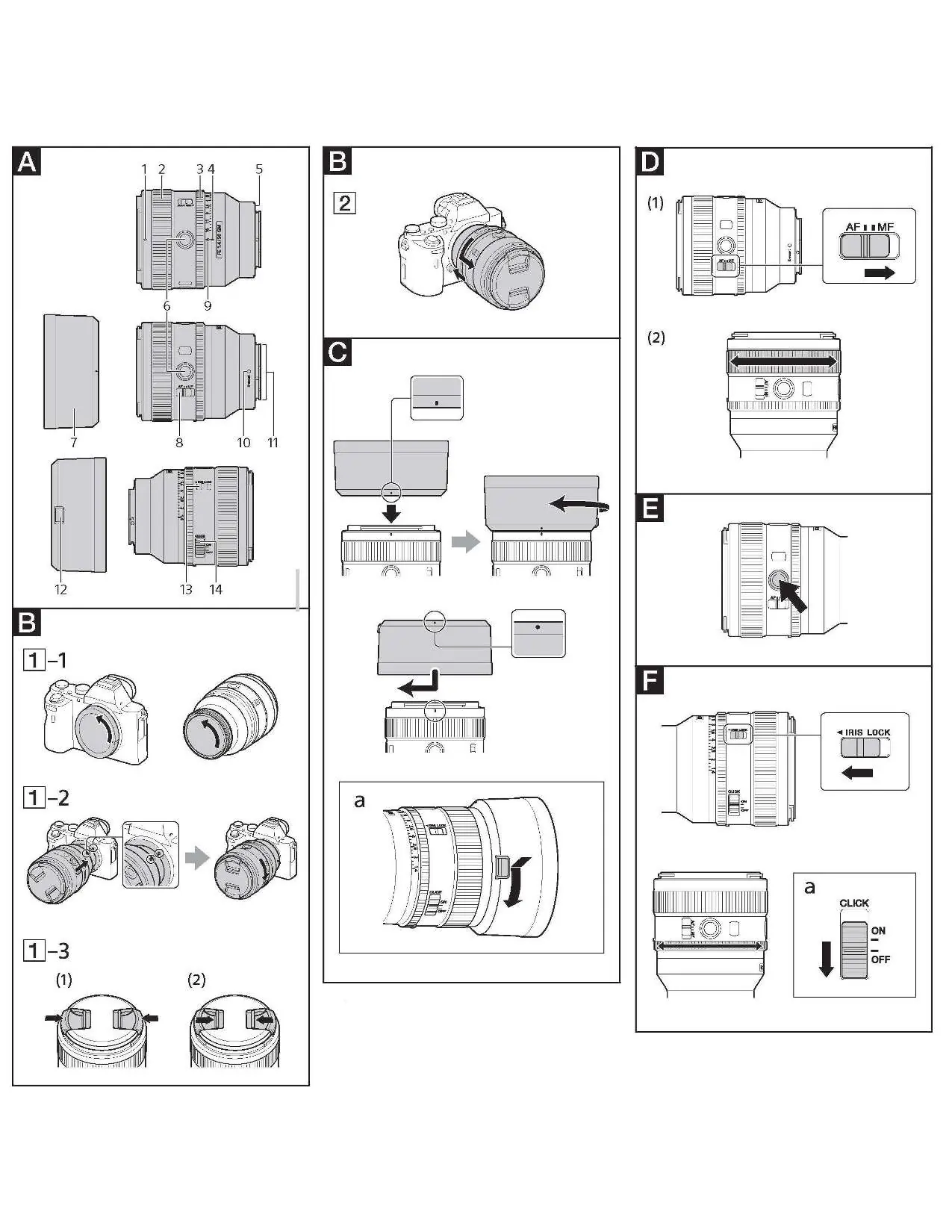

Images and diagrams
- A: Parts identification including focus ring, aperture ring, and switches.
- B: Attaching and detaching the lens.
- C: Attaching the lens hood.
- D: Switching between AF and MF.
- F: Adjusting aperture and click switch settings.
Model compatibility
- Designed for Sony E-mount cameras.
- Cannot be used on A-mount cameras.
- Compatible with 35mm format image sensors.
