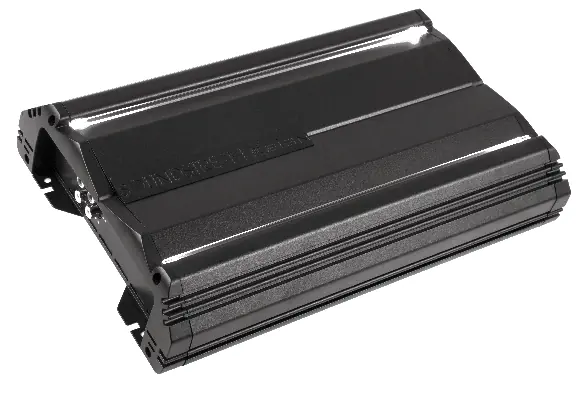

Owner's Manual for Soundstream Reign SR2-1000 2-Channel Amplifier
Quick guide for the Soundstream Reign SR2-1000 2-Channel Amplifier. Learn about installation, wiring, crossover settings, and troubleshooting.
Quick answers from the manual
Quick answer
- The Soundstream SR2-1000 is a 2-channel amplifier. It supports stereo operation (2-8 ohm) and bridged mono operation (4-8 ohm). Always disconnect the battery before installation. p. 1, 2, 3, 5
Key actions
- Connect power wires (+12V, GND, REM) to the amplifier. p. 2, 3
- Configure crossover settings (HPF, LPF, FULL). p. 1
First start
- Disconnect battery, connect power/ground/remote, install fuse, then connect speakers. p. 3
Problems and fixes
No Audio
Check remote turn-on voltage, replace blown fuse, check battery/ground connections, check speaker continuity.
p. 6Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Output Power | 2x100W (4 Ohm RMS) | Power output at 4 ohms. | p. 7 |
| Frequency Response | 10Hz ~ 40kHz | Frequency range. | p. 7 |
Where to find it in the PDF
- Features and Functions p. 1, 2
- Power and Input Connections p. 3, 4
- System Configurations p. 5, 6, 8
- Specifications p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Soundstream Reign SR2-1000 is a 2-channel amplifier designed for car audio systems. Before installation, always disconnect the battery positive (+) terminal to prevent short circuits. Ensure all connections are clean and secure, and use proper gauge wire for power and ground. The amplifier features built-in protection circuits and supports both stereo and bridged (mono) operation.
Features and Functions
The amplifier includes several controls to fine-tune your audio:
- Crossover: Select between H.P.F (Highpass), L.P.F (Lowpass), or FULL (full range signal).
- H.P.F: Set highpass frequency from 120Hz to 3kHz.
- L.P.F: Set lowpass frequency from 50Hz to 250Hz.
- Gain: Adjust the gain value from MIN to MAX.
- Bass/Treble EQ: Switch EQ settings from 0dB to 6dB or 12dB.
Power Connection
Proper wiring is critical to prevent damage:
- +12V: Connect directly to the battery (+) terminal.
- GND: Connect directly to the vehicle's chassis ground.
- REM: Connect to the remote turn-on lead of your head unit.
Always use a fuse at the battery and the amplifier.
Input and Output Connection
Input: Connect RCA cables from your source unit to the inputs labeled "Input". Route signal cables away from power lines to avoid noise.
Output:
- Stereo Mode: Connect left and right speaker leads to the corresponding terminals. Supports 2-8 ohm loads.
- Bridged/Mono Mode: Connect speaker (+) to the R+ terminal and speaker (-) to the L- terminal. Supports 4-8 ohm loads.
Note: Bridged mode does not support 2 ohm loads. Operation below recommended impedance can damage the amplifier and void the warranty.
Troubleshooting
- No Audio: Check remote turn-on voltage, blown amplifier fuse, battery/ground connections, or speaker continuity.
- Distorted Audio: Check gain settings or inspect speaker cones for damage.
Specifications
- Output Power: 2x100W (4 Ohm RMS)
- Frequency Response: 10Hz ~ 40kHz
- Input Sensitivity: 200mV ~ 8V
- Fuse: 30A
- Dimensions: 2.48"H x 7.25"W x 9.85"L
Practical help
Common problems
No audio output
Check remote turn-on voltage, replace blown fuse, verify battery and ground connections, and ensure speaker leads are not shorted.
Distorted audio
Review gain settings and inspect speaker cones for physical damage.
Before use
- Disconnect the battery positive (+) terminal before making any connections.
- Ensure all connections are clean and secure.
- Use proper gauge wire for power and ground.
- Install a fuse at the battery and the amplifier.
- Route signal cables away from power lines to avoid noise.
Specs in practice
- Output Power
- 2x100W at 4 Ohm RMS.
- Frequency Response
- 10Hz to 40kHz range.
- Input Sensitivity
- Accepts input signals from 200mV to 8V.
Images and diagrams

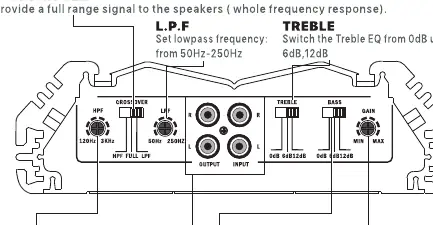

- Power Input: GND (chassis), REM (remote), +12V (battery).
- Speaker Output: Stereo (2-8 Ohm) or Bridged (4-8 Ohm).
Model compatibility
- Bridged mode does not support 2 ohm loads.
- Minimum recommended load for bridged mode is 4 ohms.
