User Manual for Sun Joe 13A Electric Pressure Washer SPX1500-H
Quick guide for the Sun Joe 13A Electric Pressure Washer (SPX1500-H). Includes assembly, operation, maintenance, troubleshooting, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This pressure washer is designed for light-to-medium duty residential cleaning tasks. Before use, ensure the machine is on a stable surface, the water supply is connected, and the GFCI power cord is tested. Always wear safety gear, including eye and hearing protection, and non-slip footwear.
Product Overview
The unit features a trigger gun, adjustable nozzle, and a Total Stop System (TSS) that automatically turns the motor off when the trigger is released to save energy and protect the pump.

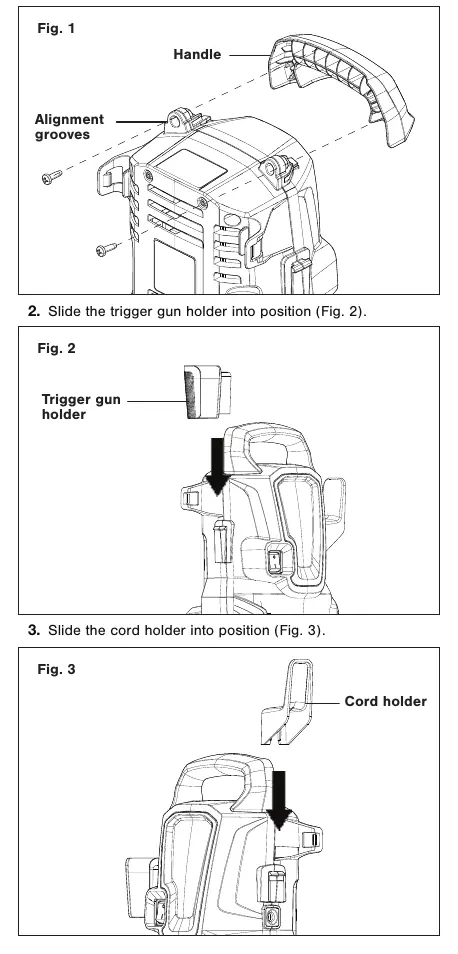

Assembly
- Handle: Slide the handle into the alignment grooves on the top of the machine and secure it with the two provided Phillips head screws.
- Holders: Slide the trigger gun holder and cord holder into their respective positions on the machine body.
Connections
- Spray Gun: Attach the spray wand to the trigger gun and lock it by turning the rotatable end-piece.
- High-Pressure Hose: Connect one end to the trigger gun until it clicks, and screw the other end onto the water outlet on the machine.
- Water Supply: Attach the garden hose adapter to the water inlet, then connect your garden hose. Ensure the water supply is clean and not hot.
Operation
Before starting, ensure the motor switch is in the OFF (0) position. Plug the unit into a GFCI-protected outlet and reset the GFCI if necessary. Turn on the water supply, unlock the safety lock on the trigger, and squeeze the trigger to bleed air from the system. Once water flows steadily, turn the switch to the ON (I) position while keeping the trigger pressed.
Using Nozzles
The washer includes an adjustable nozzle. You can adjust the pressure and spray pattern (from pencil spray to fan spray) by turning the adjustment knobs on the nozzle.
Maintenance

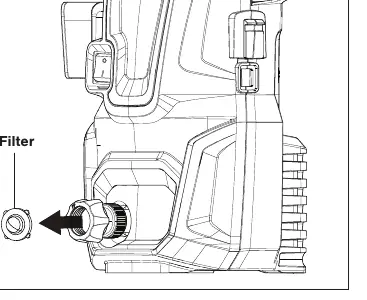

- Filter: Regularly check and clean the water inlet filter by rinsing it with warm water to prevent clogging.
- Nozzle: If the nozzle becomes clogged, use the provided needle clean-out tool to remove debris.
Storage and Winterizing
Always store the unit indoors in a frost-free area. If storing in temperatures below 32°F (0°C), flush the system with non-corrosive/non-toxic anti-freeze or a pump protector to prevent freeze damage, which is not covered by the warranty.
Troubleshooting
If the machine fails to start, check the power connection and GFCI. If pressure fluctuates or the machine pulsates, check for air in the hose, clean the water filter, or ensure the water supply is adequate. If the machine stops, it may be due to the thermal sensor; allow it to cool for 5 minutes.
Practical help
Common problems
Machine refuses to start
Check power connection, reset GFCI, try a different outlet, or remove any extension cords.
Fluctuating pressure
Check hoses for air leaks and ensure connections are airtight; clean or replace valves/seals.
Machine pulsating
Check for air in the inlet hose, clean the water inlet filter, and ensure the water supply is adequate.
Machine starts but no water comes out
Check if the pump/hoses are frozen, ensure water supply is on, and clean the water inlet filter and nozzle.
Before use
- Inspect the power cord for damage.
- Ensure the machine is on a stable, flat surface.
- Verify the water supply is clean and not hot (max 104°F/40°C).
- Check that all hose connections are tight.
- Test the GFCI on the power cord.
- Ensure the motor switch is in the OFF (0) position before plugging in.
Specs in practice
- Rated Voltage
- 120V ~ 60 Hz
- Rated Pressure
- 1500 PSI
- Max Water Inlet Temp
- 104°F (40°C)
Images and diagrams

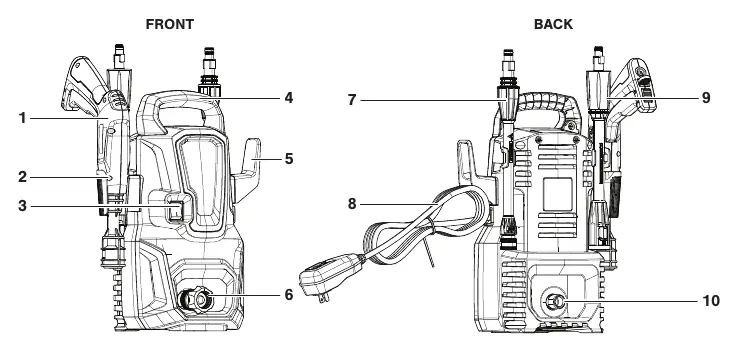

- Front and back views identify the trigger gun, switch, hose connections, and cord holder.
- Assembly diagrams illustrate the installation of the handle and holders.
- Connection diagrams show the correct attachment of the spray wand, high-pressure hose, and garden hose.
Model compatibility
- Not suitable for connection to potable water mains.
- Use only authorized Sun Joe replacement parts and accessories.
- Do not use with hot water.
- Do not use with extension cords if possible.
