User Manual for Sunny Health & Fitness COREZY 16-Level Smart Magnetic Resistance Recumbent Bike SF-RB424006
Quick guide for the Sunny Health & Fitness COREZY 16-Level Smart Magnetic Resistance Recumbent Bike (SF-RB424006). Includes assembly steps, adjustment instructions, computer operation, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This manual provides instructions for the assembly, operation, and maintenance of the Sunny Health & Fitness COREZY 16-Level Smart Magnetic Resistance Recumbent Bike (SF-RB424006). For assistance, contact [email protected] or 1-877-90SUNNY (877-907-8669).
Safety Information
- Weight Capacity: The maximum user weight is 300 lbs (135 kgs).
- Environment: Use on a solid, flat surface with a protective cover. Keep at least 2 feet (60 cm) of free space around the equipment.
- Usage: Designed for indoor, home use only. Not suitable for commercial or therapeutic use.
- Maintenance: Regularly check all nuts and bolts for tightness.
Assembly Instructions
The assembly process involves 10 steps. Ensure all parts are present before starting. Key steps include:
- Step 1: Attach front and rear stabilizers to the main frame.
- Step 2: Attach the brake handle and sliding rail.
- Step 3: Install left and right pedals.

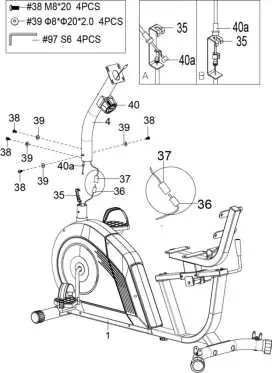

- Step 4: Connect tension control and sensor wires, then attach the front post.
- Step 5-6: Attach rear handlebars and seat components.
- Step 7-8: Attach front handlebars and the computer.

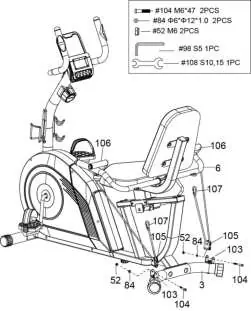

- Step 9-10: Install accessories like the bottle holder, dumbbell rack, and rope groups.
Adjustments Guide
- Moving: Lift the rear stabilizer and tilt the bike to use the transportation wheels.
- Balance: Adjust the end caps on the rear stabilizers if the bike is unstable.
- Tension: Rotate the tension control knob clockwise to increase resistance (Levels 1-16).
- Seat: Press the brake handle down to slide the seat, then lift to lock in position.
Exercise Computer
The computer tracks workout metrics including Time, Speed, Distance, Calories, Pulse, and RPM. It features Bluetooth connectivity for the SunnyFit app. If the computer displays abnormally, re-install the batteries.
Battery Installation
The computer requires 2 AA batteries. Remove the battery cover on the back of the computer, insert batteries observing correct polarity, and replace the cover.
Maintenance and Storage
Clean the bike with a soft, damp cloth. Avoid abrasives. Wipe off perspiration after each use. Store in a clean, dry environment away from children.
App Connection
Download the SunnyFit app to track progress and join workout courses. Ensure Bluetooth is enabled on your mobile device to connect to the equipment.

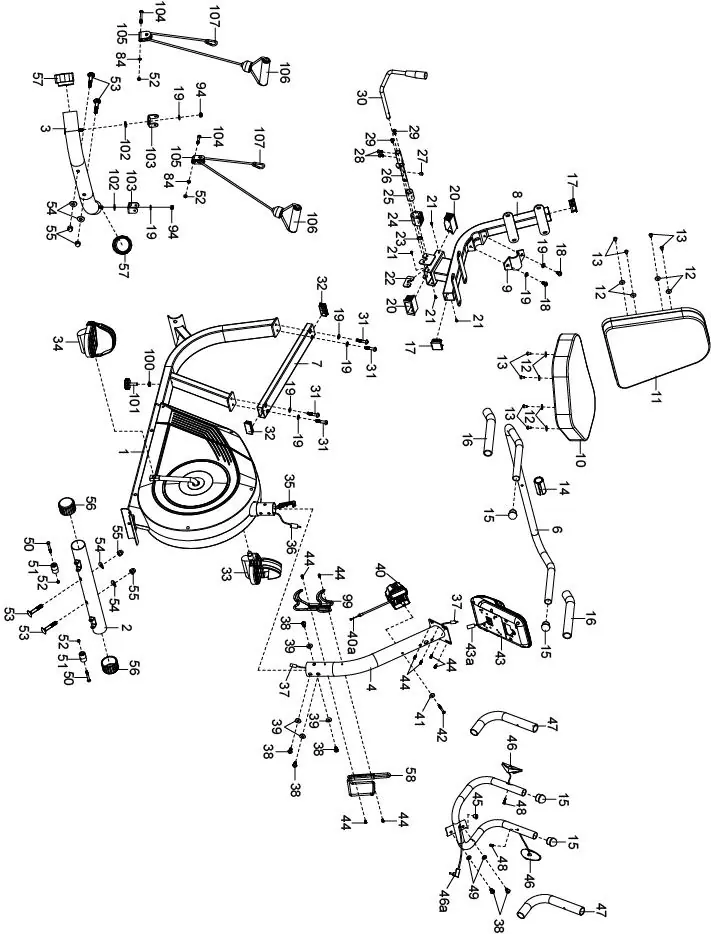

Exploded Diagrams
Refer to the exploded diagrams in the manual for detailed part identification and hardware placement during assembly or repair.
Practical help
Common problems
Computer displays abnormally
Re-install the batteries and try again.
Bluetooth connection issues
Ensure Bluetooth is enabled on your mobile device and follow in-app instructions. Visit www.sunnyfit.com/guide for troubleshooting.
Bike is unbalanced
Adjust the Adjustable End Caps (No. 57) located on the rear stabilizers until the bike is level.
Before use
- Ensure all nuts and bolts are securely tightened.
- Place the equipment on a solid, flat surface with a protective cover.
- Ensure at least 2 feet (60 cm) of free space around the equipment.
- Check that the Tension Control Knob is at the lowest level (Level 1) before connecting wires.

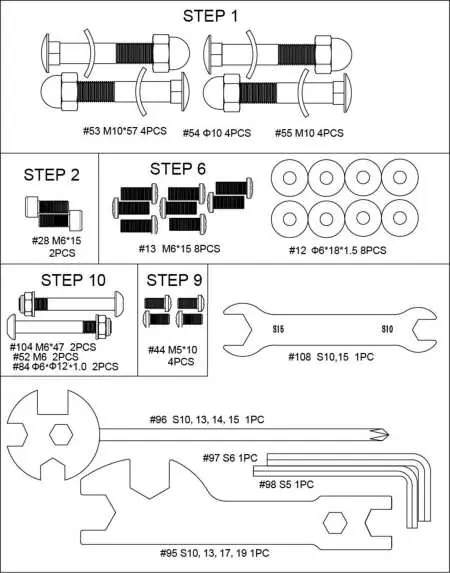

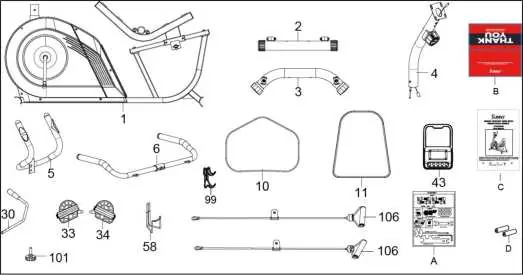

- Verify all parts are included using the Pre-Assembly Check List.
Specs in practice
- Tension Levels
- 1 (lowest) to 16 (highest) resistance levels.
- Max Weight Capacity
- 300 lbs (135 kgs).
- Battery Type
- 2 x 1.5V AA (UM-3) batteries.
Images and diagrams
- Exploded diagrams show the assembly sequence and part numbering for maintenance.
- Assembly steps detail the connection of stabilizers, seat, handlebars, and computer.
Model compatibility
- Wireless heart rate function requires SunnyFit Heart Rate Monitor HR200 (not included).
- Designed for indoor and home use only; not for commercial use.
