User Manual for Tecnolite 15PTLLED1140MVCCT Indoor Light
Quick guide for the Tecnolite 15PTLLED1140MVCCT indoor light. Includes installation steps, electrical connection, maintenance, and warranty information.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and maintenance instructions for the Tecnolite 15PTLLED1140MVCCT indoor light. Ensure the power is disconnected before starting any work. The fixture must be installed at a minimum distance of 0.5m from any combustible material. A physical ground connection is required for safe operation.
Installation
- Disassembly: Separate the fixture components as shown in the diagram to prepare for mounting.
- Mounting: Drill the necessary holes in the ceiling or wall. Insert the provided anchors (A-02) and secure the base using the screws (A-01).
- Reassembly: Once the wiring is complete, reattach the fixture housing to the base and secure it.
Electrical connection
Ensure the electrical installation complies with local regulations. The connection requires three wires:
- Line: Connect to the live wire.
- Neutral: Connect to the neutral wire.
- Ground: A physical ground connection is mandatory for safety.
The fixture supports a voltage range of 100-240V ~ 50/60Hz.
Maintenance
To maintain the fixture, always disconnect the power source first. Clean the luminaire and its internal parts using a dry rag. Do not use water or chemical cleaners. Periodically check the connections to ensure they remain secure.
Technical specifications
- Model: 15PTLLED1140MVCCT
- Power: 15W
- Voltage: 100-240V ~ 50/60Hz
- Lamp Type: LED
Warranty
The product is covered by a limited warranty provided by Iluminación Especializada de Occidente S.A. de C.V. The warranty period for LED fixtures is 5 years from the date of purchase. To claim the warranty, present the stamped warranty policy and the purchase invoice to the distributor or authorized service center. The warranty does not cover installation or uninstallation costs.
Manufacturer information
Tecnolite
Practical help
Common problems
Light does not turn on
Verify that the power supply is active and that all electrical connections (Line, Neutral, Ground) are secure.
Safety hazard during installation
Ensure the fixture is installed at least 0.5m away from any combustible material.
Before use
- Verify the power supply is 100-240V ~ 50/60Hz.
- Ensure the main power is disconnected before starting installation.
- Confirm that a physical ground connection is available.
- Check that the mounting surface is suitable for the fixture weight.
- Ensure you have the necessary tools (drill, screwdriver, protective gear).
Images and diagrams
- Step 1: Disassemble the fixture housing from the base.

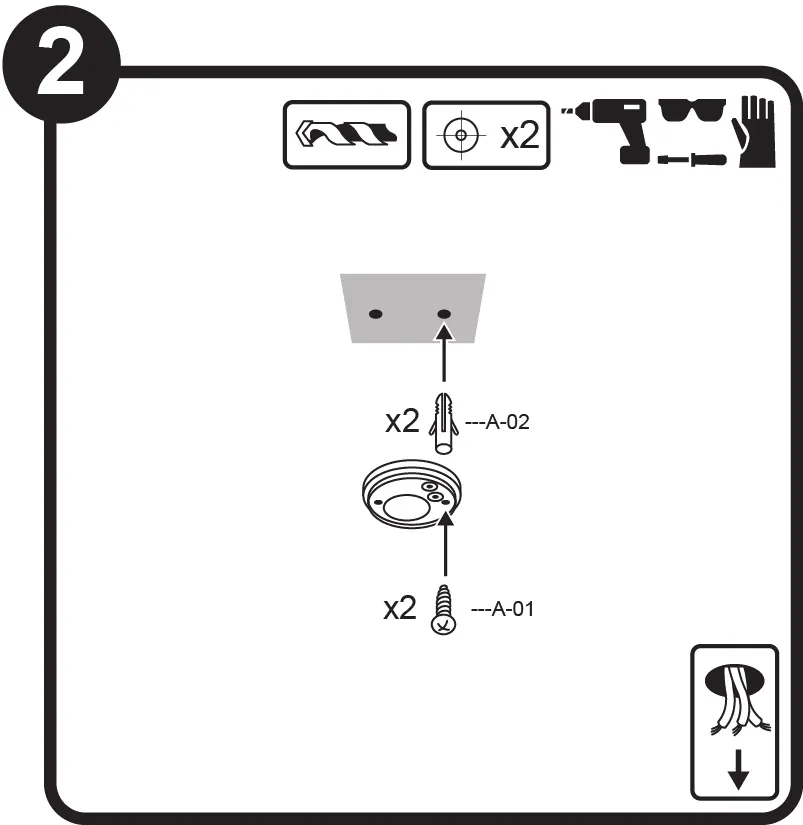

- Step 2: Use anchors (A-02) and screws (A-01) to mount the base to the surface.
- Step 3: Connect the Line, Neutral, and Ground wires to the terminal block.
- Step 4: Reattach the fixture housing to the base.
Model compatibility
- The fixture is designed for indoor use only.
- Installation must comply with local electrical standards (e.g., NOM-001-SEDE in Mexico).
