Installation Guide for Tecnolite 18FLCLED05MV LED Strip Lamp
Quick installation guide for the Tecnolite 18FLCLED05MV LED strip lamp. Includes mounting steps, electrical connection instructions, and technical specifications.
Quick answers from the manual
Quick answer
- The Tecnolite 18FLCLED05MV is an indoor LED strip lamp. Installation involves mounting brackets, snapping the lamp into place, and connecting the power cable. Grounding is required. p. 1
Key actions
- Mounting brackets p. 1
- Connecting power p. 1
Maintenance and reset
- Clean the lamp and its internal parts with a dry rag and check connections periodically. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 100-240V | Input voltage | p. 1 |
| Power | 18W | Power consumption | p. 1 |
Where to find it in the PDF
- Installation Guide p. 1
- Warranty p. 2
Table of contents
Manual images
Click an image to enlargeImportant information from the manual
This document provides installation instructions for the Tecnolite 18FLCLED05MV LED strip lamp. The device is designed for indoor use only. Ensure the installation location is at least 0.50 meters away from any combustible materials to avoid fire hazards. Proper grounding is mandatory for safe operation.
Installation
Follow these steps to install the lamp:
- Mounting: Use the provided brackets (A-01) and screws (A-02) to secure the lamp to the surface. Ensure you use appropriate anchors for your specific wall or ceiling type.
- Attaching the lamp: Snap the lamp into the installed brackets until you hear a click. If connecting multiple lamps, use the connector (A-04) to join them together.
- Electrical connection: Connect the power cable (A-03) to the lamp. Ensure the ground wire is physically connected to the electrical system.
Maintenance
Disconnect the power source before performing any maintenance. Clean the lamp and its internal parts with a dry rag. Periodically check all electrical connections to ensure they remain secure.
Technical Specifications
- Voltage: 100 V - 240 V, 50 Hz/60 Hz
- Power: 18 W
- Usage: Indoor only
Safety
Do not install the lamp near combustible materials. Maintain a minimum distance of 0.50 meters from such materials. Always disconnect the power supply before installation or maintenance work. If the lamp becomes hot, use gloves to handle it.
Manufacturer information
Tecnolite
Practical help
Common problems
Lamp does not turn on
Check the electrical connections and ensure the power source is active.
Grounding concerns
Ensure the ground wire is physically connected to the electrical system as required.
Before use
- Verify the power supply is between 100V and 240V
- Ensure the mounting surface is suitable for the brackets
- Confirm the installation area is at least 0.50m away from combustible materials
- Gather necessary tools: drill, screwdriver, and safety gear
Images and diagrams

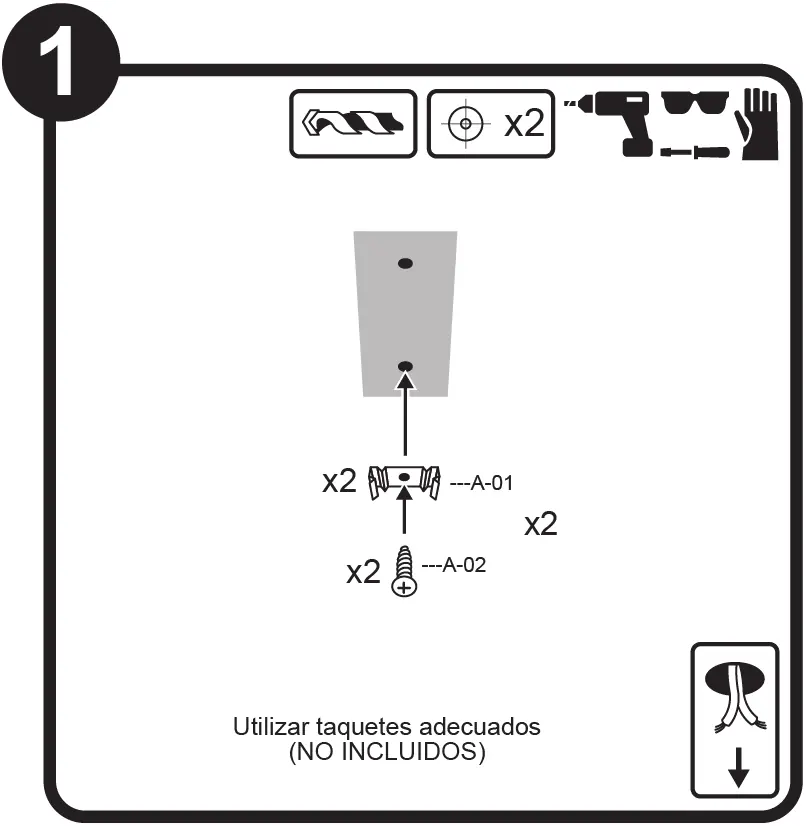

- Step 1: Mounting brackets to the surface using screws
- Step 2: Attaching the lamp to brackets and connecting multiple units
- Step 3: Wiring the power cable with mandatory grounding
Model compatibility
- Indoor use only
- Keep at least 0.50m away from combustible materials
