User Manual for Tecnolite 1SOLLED21VCD30N Outdoor Light
Quick guide for the Tecnolite 1SOLLED21VCD30N outdoor light. Includes installation steps for stake and surface mounting, operating modes, and charging instructions.
Quick answers from the manual
Quick answer
- Charge the unit for 24-48 hours before first use. The light has three modes: Dim light (12h), Bright light (6h), and Off. p. 1
Key actions
- Charge the battery p. 1
- Select operating mode p. 1
First start
- Charge for 24-48 hours in direct sunlight before first use. p. 1
Maintenance and reset
- Clean the luminaire and internal parts with a dry rag; check connections periodically. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 3.7 V | Operating voltage | p. 1 |
| Power | 1.5 W | Power consumption | p. 1 |
Where to find it in the PDF
- Installation and Operation p. 1
- Warranty p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
Before using the Tecnolite 1SOLLED21VCD30N for the first time, it is essential to charge the device completely. The recommended charging time is 24 to 48 hours. Ensure the solar panel is placed in an area with direct sunlight, avoiding shade from trees or structures, to ensure optimal performance.
Parts list
- A-01: Stake
- A-02: Bolt
- A-03: Screw
- A-04: Anchor
Installation
Option 1: Stake
Insert the stake (A-01) into the ground. Attach the light fixture to the stake using the bolt (A-02). Ensure the unit is stable and level.
Option 2: Surface mount
Use the anchor (A-04) and screw (A-03) to mount the base to the desired surface. Secure the light fixture to the base using the bolt (A-02).
Operation

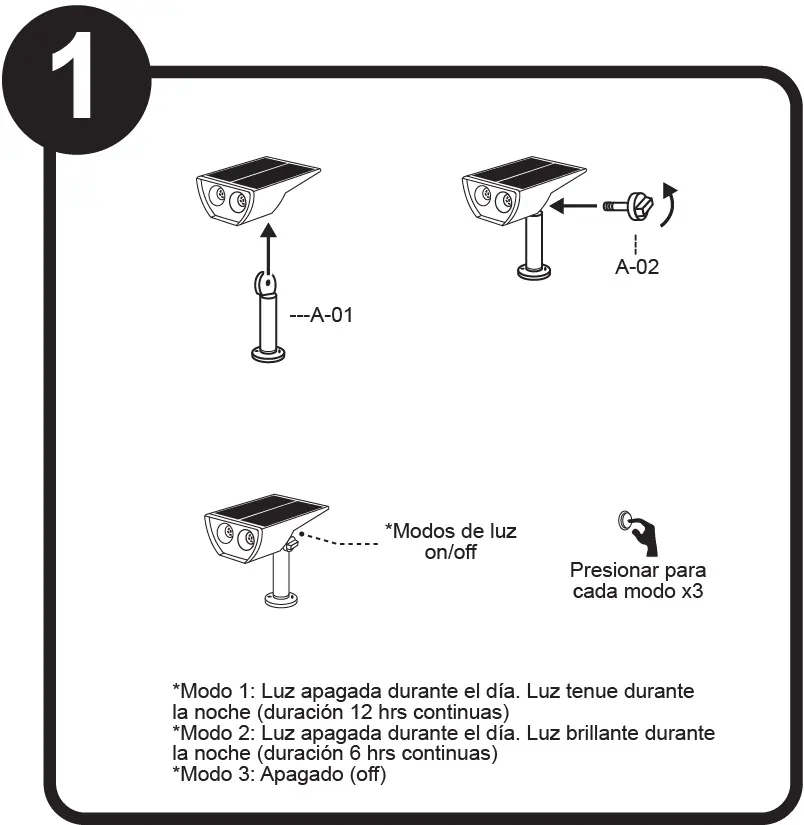

The light features three operating modes, which can be cycled by pressing the button on the unit:
- Mode 1: Light off during the day. Dim light at night (12 hours continuous duration).
- Mode 2: Light off during the day. Bright light at night (6 hours continuous duration).
- Mode 3: Off.
Maintenance
Disconnect the power source before performing any maintenance. Clean the luminaire and its internal parts with a dry rag. Periodically check all connections to ensure they remain secure.
Technical specifications
- Protection rating: IP65 (dust tight and water-resistant), IK05 (impact protection)
- Voltage: 3.7 V
- Power: 1.5 W
- Current: 0.4 A
- Light source: LED
Manufacturer information
Tecnolite
Practical help
Common problems
Light does not turn on at night
Ensure the unit has been charged for 24-48 hours before first use and that the solar panel is not obstructed by shade.
Light duration is short
The battery may not be fully charged. Ensure the solar panel receives maximum direct sunlight during the day.
Before use
- Charge the unit completely for 24-48 hours before first use.
- Verify all parts (A-01 to A-04) are present.
- Select an installation location with direct sunlight exposure.
- Ensure the surface is suitable for mounting (if using Option 2).
Images and diagrams
- The manual provides two installation methods: using a ground stake or surface mounting with screws.
- The operation button cycles through three modes: Dim light, Bright light, and Off.
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
