Thule OutPace 2-Bike Platform Bike Rack User Manual
Quick guide for the Thule OutPace 2-Bike Platform Bike Rack (90125). Includes installation, bike loading, safety warnings, and compatibility details.
Quick answers from the manual
Quick answer
- The Thule OutPace 2-Bike rack is a hitch-mounted carrier for up to two bikes. It supports a total load of 110 lbs (50 kg) and is compatible with 1.25" and 2" hitch receivers. p. 1, 4
Key actions
- Tighten the hitch bolt to 7.5 lb ft (10 Nm) during installation. p. 6, 8
- Secure bikes using the frame clamp and wheel straps. p. 13, 16
Maintenance and reset
- Regularly check all bolts and straps for wear. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Load | 110 lbs (50 kg) | Total weight capacity for two bikes. | p. 4 |
| Max Tire Width | 3" | Maximum tire width supported. | p. 4 |
Where to find it in the PDF
- Safety and Compatibility p. 3, 4
- Installation p. 5, 7, 8
- Loading Bikes p. 12, 13, 14
Table of contents
Manual images
Click an image to enlargeQuick Guide and Safety

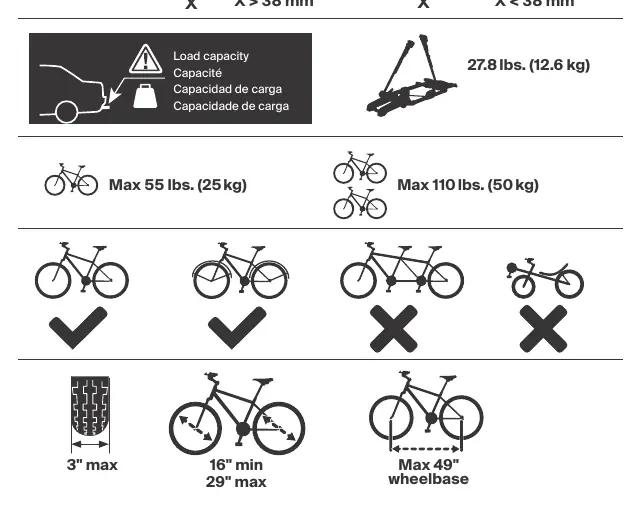

The Thule OutPace 2-Bike Platform Bike Rack is designed for hitch-mounted transport. Important: This carrier is not compatible with any RV, travel trailer, 5th wheel, or bumper-mounted hitch receiver. Always verify your hitch receiver size (1.25" or 2") before installation.
- Max Load Capacity: 110 lbs (50 kg) total.
- Max Weight per Bike: 55 lbs (25 kg).
- Bike Compatibility: Wheelbase between 16" and 49", tire width up to 3".
- Speed Limit: Do not exceed 80 mph (130 km/h).
Installation
Follow these steps to mount the rack to your vehicle:
- Insert the rack into the hitch receiver.
- Use the provided tool to tighten the hitch bolt to 7.5 lb ft (10 Nm).
- Ensure the rack is locked securely to the vehicle.
- Check the hitch receiver size (1.25" or 2") and ensure the adapter is used if necessary.

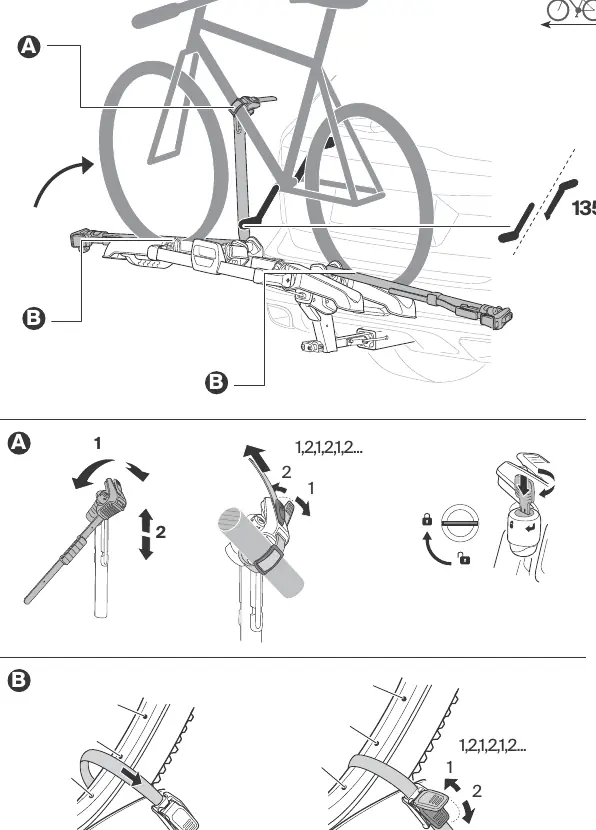

Loading Bikes
Proper loading is essential for safety:
- Fold the rack down to the loading position.
- Place the bike on the rack.
- Secure the bike frame using the frame clamp.
- Secure the wheels using the provided straps.
- Ensure the frame clamp is locked.

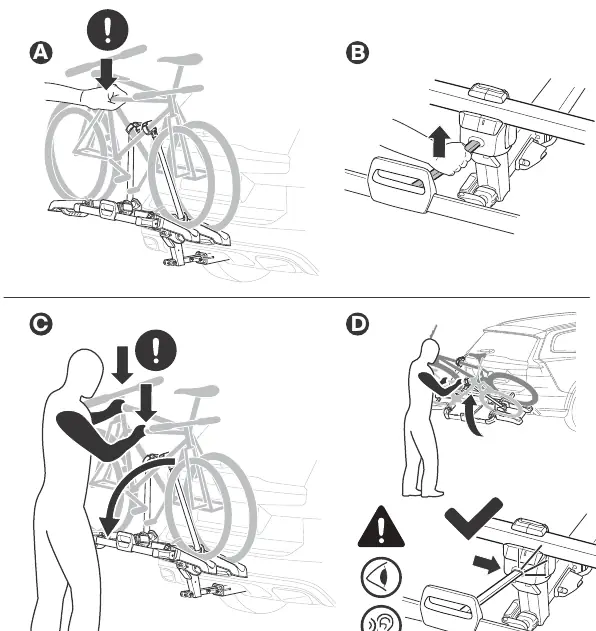

Tilt and Folding
The rack features a tilt mechanism for vehicle access:
- Use the release handle to tilt the rack away from the vehicle.
- Always ensure the rack is fully locked in the upright position before driving.
- Fold the rack up when not in use for storage or compact driving.
Maintenance
Regularly check all bolts and straps for wear. Keep the rack clean and store it in a dry place when not in use. Do not use covers on bikes while driving as this increases wind resistance.
Manufacturer information
Thule
Practical help
Common problems
Carrier is unstable in hitch
Ensure the hitch bolt is tightened to exactly 7.5 lb ft (10 Nm).
Bike frame clamp not closing
Ensure the bike is positioned correctly and the clamp is fully engaged on the frame.
Rack hits vehicle when tilting
Ensure the vehicle trunk/hatch is closed and the rack is fully tilted before operating.
Before use
- Verify hitch receiver is 1.25" or 2".
- Check that total bike weight does not exceed 110 lbs (50 kg).
- Confirm bike wheelbase is between 16" and 49".
- Ensure tire width is 3" or less.
- Tighten hitch bolt to 10 Nm.
- Lock the rack to the vehicle.
Specs in practice
- Max Tire Width
- 3 inches.
Images and diagrams
- Hitch mounting: Insert into receiver and tighten bolt.
- Bike loading: Secure frame clamp first, then wheel straps.
- Tilt mechanism: Use handle to lower rack for trunk access.
Model compatibility
- Not compatible with RVs, travel trailers, or 5th wheels.
- Not compatible with bumper-mounted hitch receivers.
