Thule Kit 145343 Installation Instructions for BMW 2-Series Active Tourer
Installation guide for Thule Kit 145343, designed for the BMW 2-Series Active Tourer (2022-). Includes assembly steps, positioning measurements, and safety load limits.
Quick answers from the manual
Quick answer
- This document provides installation instructions for Thule Kit 145343 on a BMW 2-Series Active Tourer (2022-). It includes assembly steps, positioning measurements, and safety load limits. p. 1, 2
Key actions
- Assemble the kit with the foot pack p. 1
- Position the rack using measurements X, Y, W, Z p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Load | 75 kg / 165 lbs | Maximum allowed weight | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Positioning Measurements p. 2
Table of contents
Quick guide from the manual
This document provides the necessary steps to install the Thule Kit 145343 on a BMW 2-Series Active Tourer (5-door MPV, 2022-). The kit must be used in conjunction with a compatible Thule Foot Pack. Always adhere to the maximum load capacity of 75 kg (165 lbs) and observe the speed restrictions: 130 km/h (80 mph) under normal conditions and 80 km/h (50 mph) when carrying a load.
Assembly
The installation process involves combining the Kit 145343 components with the Thule Foot Pack. Ensure all parts are correctly oriented (FL, FR, RL, RR) as indicated in the diagrams. Tighten the components until you hear a distinct click, ensuring a secure fit.
Installation and Positioning
Proper positioning on the vehicle roof is critical for safety and stability. Use the specific measurements provided in the manual to align the rack:
- X and Y measurements: Used to determine the correct placement of the rack feet on the roof rails.
- W and Z measurements: Used to ensure the correct distance between the front and rear bars.
Refer to the table on page 2 for the exact millimeter/inch values corresponding to your specific Thule bar type (WingBar Evo, WingBar Edge, etc.).
Safety and Maintenance
Regularly check that the roof rack is securely attached to the vehicle. Do not exceed the maximum load limit of 75 kg. Always remove the roof rack when not in use to improve fuel efficiency and reduce wind noise.
Manufacturer information
Thule
Practical help
Common problems
Roof rack instability or noise
Verify that all components are tightened until the 'click' sound is heard and that all positioning measurements (X, Y, W, Z) are accurate.
Before use
- Verify vehicle compatibility (BMW 2-Series Active Tourer, 2022-)
- Ensure you have both Kit 145343 and the required Thule Foot Pack
- Check load limits (75 kg / 165 lbs max)
- Verify speed limits (130 km/h normal, 80 km/h with load)
Images and diagrams

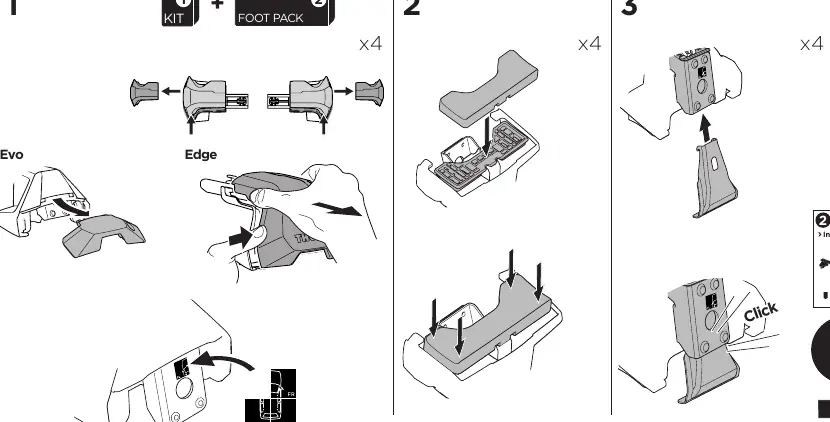

- Page 1 shows the assembly of the kit components onto the foot pack.
- Page 2 provides the specific measurements (X, Y, W, Z) for positioning the rack on the vehicle roof.
Model compatibility
- Compatible with BMW 2-Series Active Tourer, 5-dr MPV, 2022-
- Requires a compatible Thule Foot Pack
