Thule Verse 2-Bike Hitch Rack User Manual
Comprehensive user guide for the Thule Verse 2-Bike Hitch Rack. Includes installation instructions, safety warnings, load capacity specifications, and bike loading procedures for 2" and 1.25" hitch models.
Quick answers from the manual
Quick answer
- The Thule Verse is a hitch-mounted bike rack. Models 903452 (2" hitch) and 903453 (1.25" hitch) support different weight capacities. Always ensure the hitch receiver is at least 1.5" deep and not bumper-mounted. p. 1, 5
Key actions
- Install the rack by inserting it into the hitch receiver until it clicks, then tighten the bolt to 7.5 lb ft (10 Nm). p. 7, 8
- Load bikes by placing them on the rack, securing the wheels with straps, and adjusting the frame clamps. p. 21, 22
First start
- Verify hitch receiver size and depth, assemble the rack components according to the manual, and secure the rack to the vehicle using the provided key. p. 3, 4, 7, 8
Problems and fixes
Rack does not fit
Check if your hitch receiver is bumper-mounted (not compatible) or if the depth is less than 1.5".
p. 4, 5Maintenance and reset
- Regularly check the hitch bolt tightness (7.5 lb ft / 10 Nm) and ensure all straps and clamps are functioning correctly. p. 8, 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Load (2" Hitch) | 120 lbs (55 kg) | Total weight capacity for 2 bikes. | p. 5 |
| Max Load (1.25" Hitch) | 110 lbs (50 kg) | Total weight capacity for 2 bikes. | p. 5 |
Where to find it in the PDF
- Parts List p. 3
- Installation p. 7, 8, 9, 10
- Bike Loading p. 20, 21, 22, 23
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Thule Verse is a hitch-mounted bike rack designed for 2" (model 903452) or 1.25" (model 903453) hitch receivers. Before use, ensure your vehicle's hitch receiver meets the minimum depth requirements (X > 1.5" / 38 mm). This rack is not compatible with bumper-mounted hitch receivers, travel trailers, or 5th wheels. Always adhere to the specified load capacities based on your hitch size.

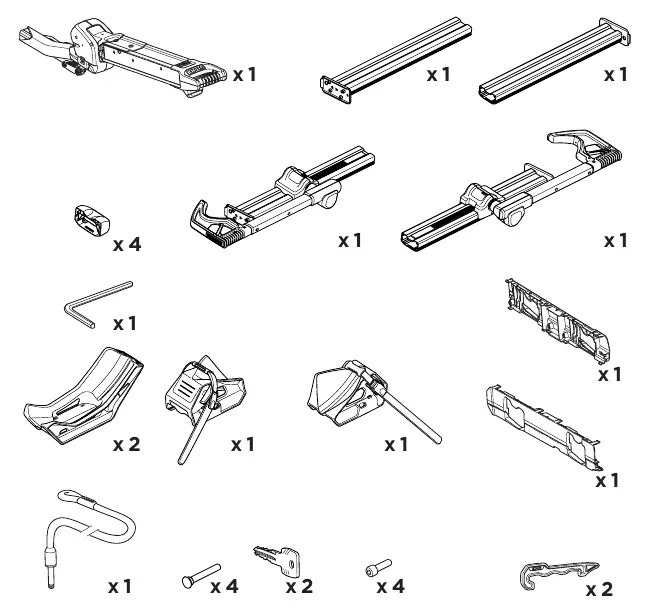

Product Overview and Parts
The package includes the main rack assembly, various mounting brackets, keys, and hardware. Verify all parts against the parts list on page 3 before beginning assembly. Keep your key number in a safe place.
Installation
Follow these steps to mount the rack to your vehicle:
- Hitch Insertion: Insert the rack into the hitch receiver until it clicks into place.
- Securing: Use the provided key to lock the rack to the vehicle. Tighten the hitch bolt to 7.5 lb ft (10 Nm).
- Assembly: Follow the numbered steps (1-15) to attach the necessary brackets and components. Ensure all parts are clicked into position.
- Final Check: Ensure the rack is stable and locked before loading any bicycles.
Loading Bikes
To load bicycles onto the rack:
- Ensure the rack is in the horizontal position.
- Lift the bike onto the rack.
- Secure the wheels using the provided straps.
- Adjust the frame clamps to hold the bike securely.
- Use the integrated cable lock to secure the bikes to the rack.
Technical Specifications
Load capacity varies by hitch size:
- 2" Hitch (903452): Max 60 lbs (27.5 kg) per bike; Max 120 lbs (55 kg) total.
- 1.25" Hitch (903453): Max 55 lbs (25 kg) per bike; Max 110 lbs (50 kg) total.
- Compatibility: Wheelbase between 33" and 53". Tire width up to 5".
Note: When using on motorized RVs with an overhang exceeding 230 cm (7.5 ft), reduce load capacity by 40%.
Manufacturer information
Thule
Practical help
Common problems
Hitch receiver depth is insufficient
Ensure the hitch receiver depth (X) is greater than 1.5" (38 mm). If less, the rack cannot be safely installed.
Incompatibility with RVs
If the vehicle overhang exceeds 230 cm (7.5 ft), you must reduce the total load capacity by 40%.
Rack not locking
Ensure the hitch bolt is fully tightened to 7.5 lb ft (10 Nm) and the key is turned to the locked position.
Before use
- Verify hitch receiver size (2" or 1.25").
- Check that the hitch receiver depth is at least 1.5" (38 mm).
- Confirm bike wheelbase is between 33" and 53".
- Ensure tires are no wider than 5".
- Check that the rack is not being mounted to a bumper-mounted receiver.
- Verify the total weight of the bikes does not exceed the rack's capacity.
Specs in practice
- Load Capacity (2" Hitch)
- Maximum 60 lbs per bike, 120 lbs total.
- Load Capacity (1.25" Hitch)
- Maximum 55 lbs per bike, 110 lbs total.
- Hitch Bolt Torque
- Tighten to 7.5 lb ft (10 Nm) for secure attachment.
Images and diagrams

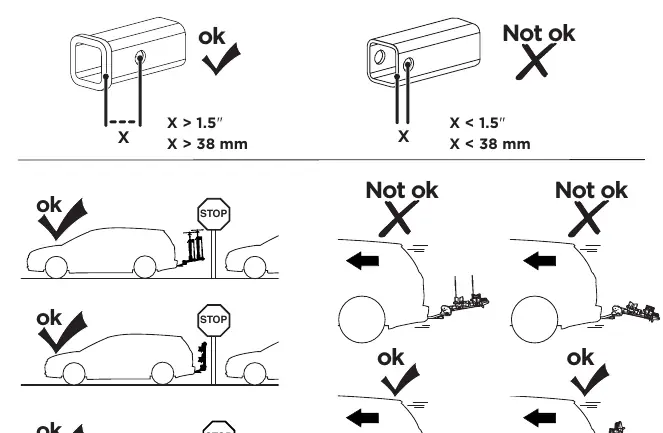

- Page 4: Shows correct vs incorrect hitch receiver depth and vehicle clearance.
- Page 6: Illustrates compatible bike types and wheelbase limits.

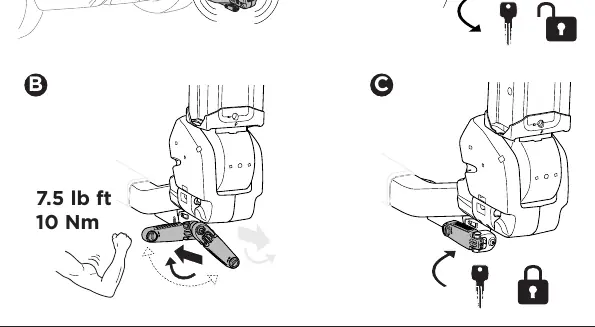

- Page 8: Demonstrates the locking and tightening procedure for the hitch bolt.

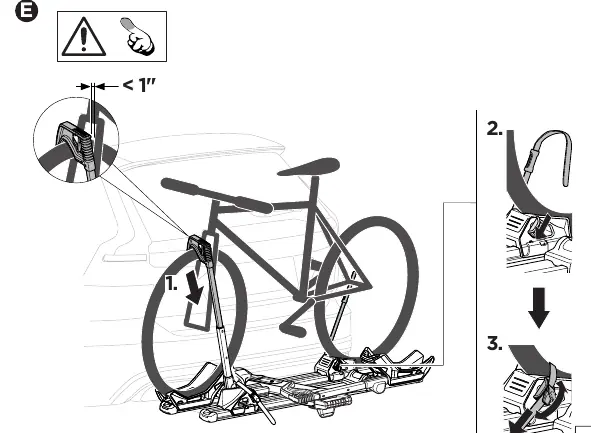

- Page 22: Shows the correct method for securing bike wheels with straps.
Model compatibility
- Not compatible with travel trailers, 5th wheels, or bumper-mounted hitch receivers.
- Motorized RVs with >230 cm overhang require 40% load reduction.
