User Manual for Thule RodVault 2 Fishing Rod Carrier
Comprehensive user guide for the Thule RodVault 2 fishing rod carrier. Includes detailed assembly instructions, roof rack mounting procedures, safety warnings, and maintenance guidelines.
Quick answers from the manual
Quick answer
- The Thule RodVault 2 is a roof-mounted fishing rod carrier. This manual provides instructions for assembly, installation on various roof rack systems, and safety guidelines. p. 1
Key actions
- Assemble the carrier tube sections p. 15, 16, 17, 18
- Mount the carrier to the roof rack p. 25, 28, 35
First start
- Assemble the main tube sections and mount to the vehicle roof rack. p. 15, 25
Problems and fixes
Carrier loose on roof rack
Check and tighten all mounting bolts to 4 Nm.
p. 28, 35Maintenance and reset
- Clean with water and soft brush; check bolt tightness periodically. p. 39
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max speed | 130 km/h | Maximum driving speed with carrier | p. 13 |
Where to find it in the PDF
- Parts List p. 3
- Safety Warnings p. 13
- Assembly p. 15, 16, 17, 18
- Mounting p. 25, 28, 35
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Thule RodVault 2 is a roof-mounted carrier designed to transport fishing rods safely. Before use, ensure the carrier is correctly assembled and securely mounted to your vehicle's roof rack system. Always adhere to speed limits and be aware of height restrictions when the carrier is installed.
Assembly and Installation
The installation process involves assembling the main carrier tube and mounting it to your roof rack. Follow these steps:
- Preparation: Verify all parts are present as shown on page 3.

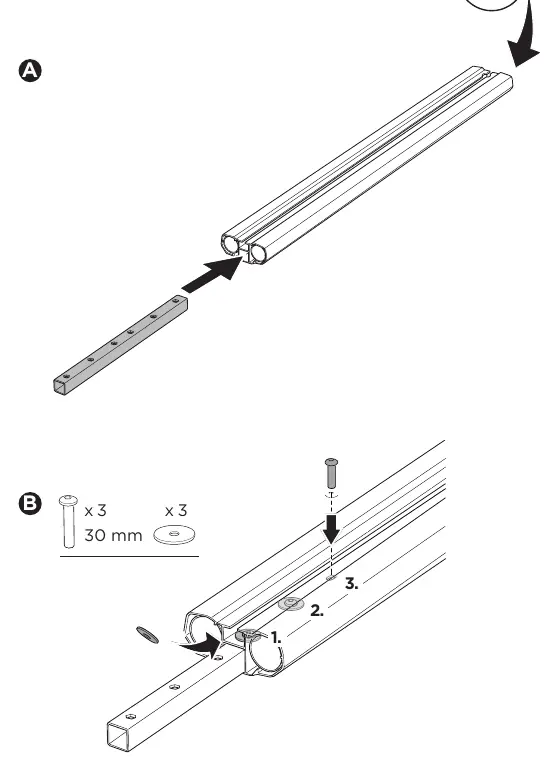

- Assembly: Connect the tube sections using the provided bolts and washers. Tighten all bolts to 8 Nm using a 4 mm hex key (pages 15-19).

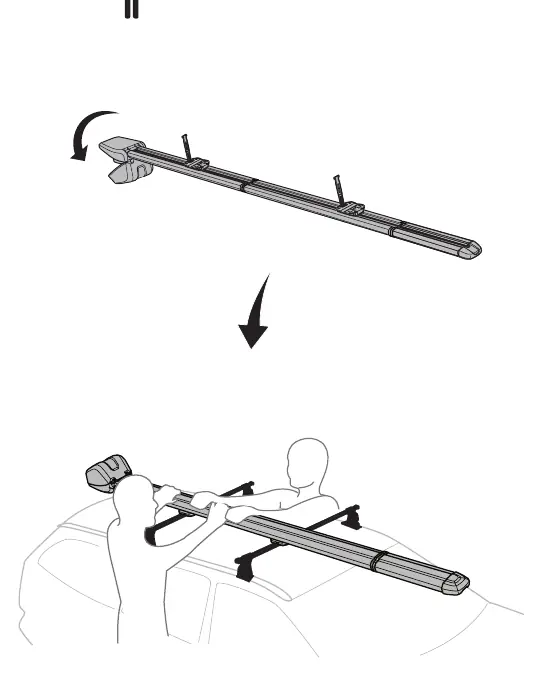

- Mounting: Place the assembled carrier onto your roof rack. Use the mounting brackets to secure the carrier to the bars (pages 25-28).
- Securing: Ensure all mounting points are tightened to 4 Nm (pages 28, 35).
- Locking: Use the Thule One-Key System to lock the carrier to the roof rack (pages 26-27, 29-30).
Usage and Safety
Observe the following safety guidelines to prevent damage to the product or vehicle:
- Speed Limit: Do not exceed 130 km/h (80 mph) when the carrier is installed.
- Clearance: Be aware of low-clearance areas such as garages or drive-thrus. Always remove the carrier if necessary.
- Capacity: The carrier is designed for a maximum of 2 fishing rods.
- Positioning: Ensure the carrier is mounted straight and centered on the roof rack.
Maintenance
Regular maintenance ensures the longevity of your RodVault 2:
- Clean the carrier regularly with water and a soft brush.
- Check all bolts and mounting points periodically to ensure they remain tight (8 Nm for main bolts, 4 Nm for mounting brackets).
- Store the carrier in a dry place when not in use.
Manufacturer information
Thule
Practical help
Common problems
Carrier hits garage door or low ceiling
Always remove the carrier before entering areas with low clearance.
Carrier feels loose on roof rack
Check and tighten all mounting bolts to the specified 4 Nm torque.
Wind noise or vibration
Ensure the carrier is securely mounted and all bolts are tightened to 8 Nm.
Before use
- Verify all parts are present (see page 3)
- Ensure roof rack is compatible with the carrier
- Record your key number for future reference
- Tighten all assembly bolts to 8 Nm
- Tighten all mounting bracket bolts to 4 Nm
- Check that the carrier is locked securely
Images and diagrams

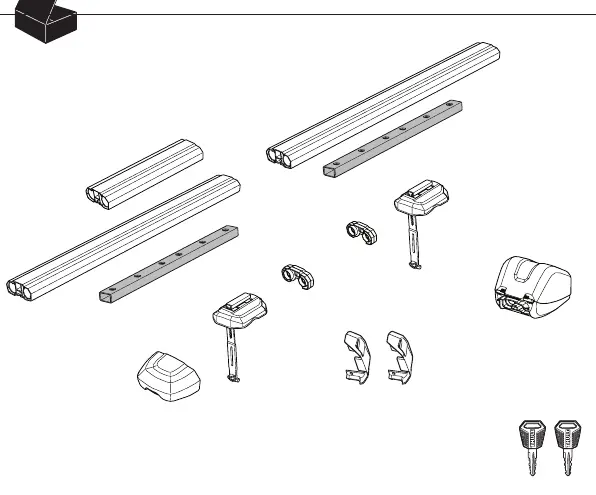

- Page 3: Parts list and hardware identification
- Page 13: Safety warnings regarding speed, clearance, and usage
- Page 14: Dimensions for proper positioning
- Page 39: Maintenance and cleaning instructions
Model compatibility
- Compatible with Thule WingBar Evo, WingBar/AeroBar, AeroBar, ProBar Evo, Xsporter, and Squarebar Evo.
