User Manual for Toshiba RC-18DHVMY(W) Digital Rice Cooker
Comprehensive user guide for the Toshiba RC-18DHVMY(W) digital rice cooker. Includes setup, cooking instructions, delay timer settings, cleaning procedures, and troubleshooting tips.
Quick answers from the manual
Quick answer
- To cook rice, measure and wash the rice, add water to the appropriate level, select the desired function using the MENU key, and press START. p. 17, 18
Key actions
- Cooking Rice p. 18
- Setting Delay Timer p. 20
First start
- Unpack and clean all accessories and the inner pot before first use. p. 12, 13
Problems and fixes
Rice is soft/pasty
Reduce water volume.
p. 24
Rice is hard
Increase water volume.
p. 24Maintenance and reset
- Clean the inner lid and steam valve regularly to prevent odors and malfunctions. p. 22
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 1.8L | Maximum cooking capacity | p. 11 |
| Power Consumption | 860-1024W | Power usage during cooking | p. 11 |
Where to find it in the PDF
- Product Overview p. 11
- Cleaning p. 22, 23
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
To start cooking, ensure the rice cooker is plugged into a grounded 3-prong outlet. Measure rice using the provided cup, wash it, and adjust the water level according to the markings inside the inner pot. Select the desired cooking function using the MENU key, adjust the taste (for White Rice) if needed, and press START. Always ensure the inner pot and steam valve are clean and properly installed before use.

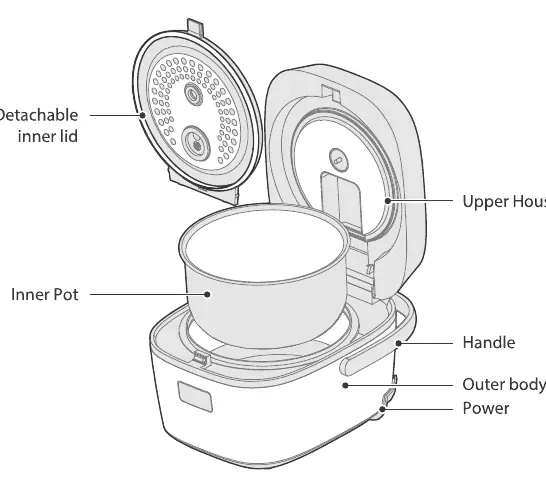

Product Overview
The rice cooker consists of an outer body, an inner pot, and a detachable inner lid. Accessories included are a standable rice spoon, suspensible spoon, measurement cup, steamer, and power cord.
Installation
Unpacking: Remove all packing materials and wash the cooking pot, inner lid, steam port, and accessories before first use.
Electrical Requirements: Use a grounded 3-prong outlet (220-240V). Do not use an extension cord or adapter. It is recommended to use a separate circuit for the rice cooker.
Location: Place the unit indoors on a stable, level, non-heat sensitive surface. Ensure the lid can be fully opened and maintain a distance of at least 12 inches (30.5 cm) from walls or cabinets to allow steam to escape.

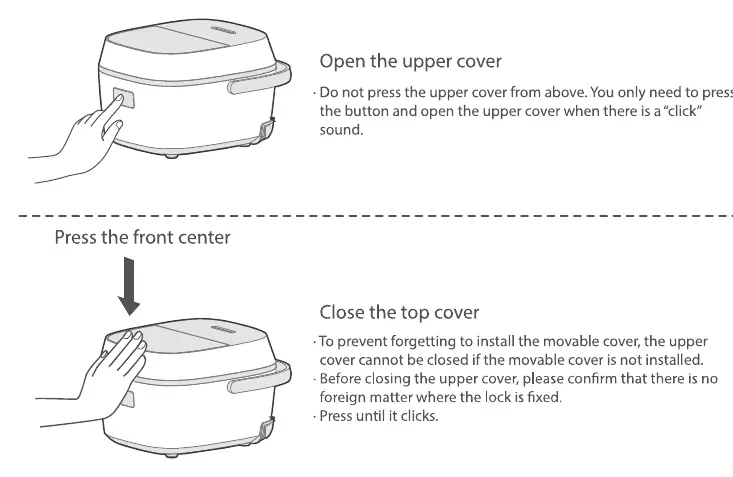

Operation Instructions

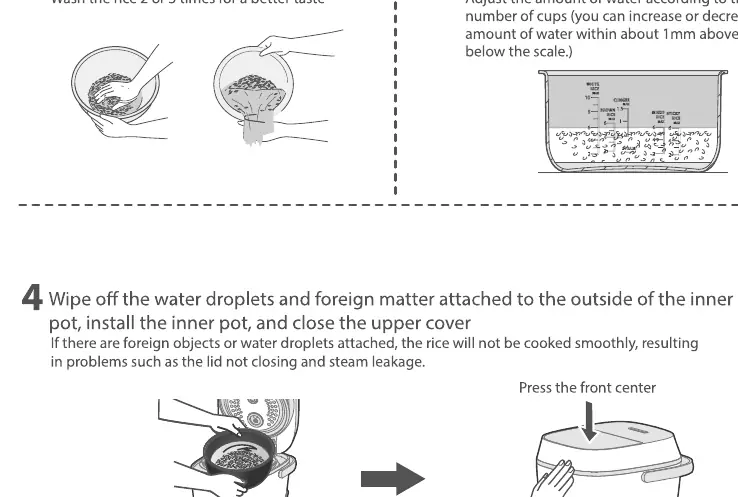

Cooking Steps:
- Press MENU to select the function (e.g., White Rice, Brown Rice, Steam, Soup/Congee).
- For White Rice, press TASTE to select texture (Sweet, Delicious, Hard, Sticky, Sushi).
- Press START to begin the cooking process.
Delay Timer: You can set a delay for cooking completion. Press the TIMER key to select Timer 1 or 2, use the + or - keys to set the desired completion time, select the cooking function, and press START.
Cleaning and Maintenance

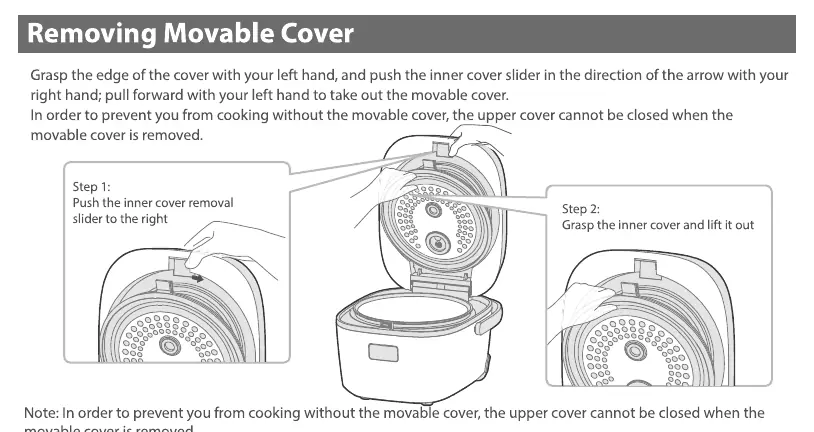

Removing Movable Cover: Push the inner cover slider to the right and lift the cover to remove it for cleaning.

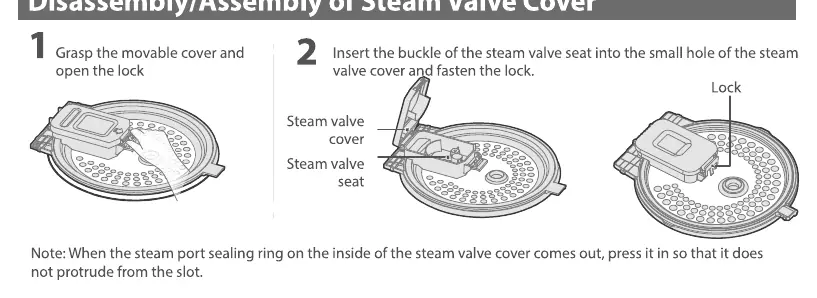

Steam Valve: Disassemble the steam valve cover by grasping the movable cover, opening the lock, and cleaning the components. Ensure the sealing ring is properly seated upon reassembly.

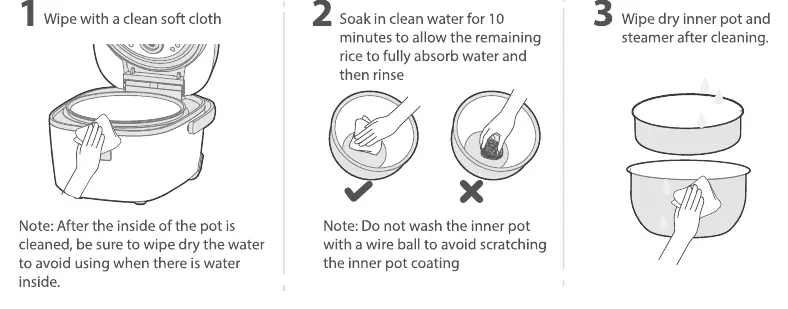

Inner Pot: Wipe with a soft cloth. Do not use wire balls or abrasive cleansers to avoid scratching the coating. Soak in clean water for 10 minutes if rice is stuck.
Troubleshooting
If you encounter issues, check the following:
- Soft Rice: Reduce water volume.
- Hard Rice: Increase water volume or soak rice before cooking.
- Burnt Rice: Ensure the rice is washed thoroughly and the temperature sensor is clean.
- Unpleasant Odor: Clean the inner lid, steam valve, and body thoroughly after each use.
Specifications
Power Supply: 220-240V, 50/60HzPower Consumption: 860-1024WCapacity: 1.8L
Practical help
Common problems
Rice is too soft
Reduce the water volume.
Rice is too hard
Increase the water volume or soak the rice before cooking.
Rice is burnt
Wash the rice thoroughly and ensure the temperature sensor is clean.
Unpleasant odor
Clean the inner lid, steam valve, and body after every use.
Before use
- Remove all packing materials.
- Wash the inner pot, inner lid, and accessories.
- Ensure the power outlet is grounded.
- Place the unit on a stable, level surface.
- Ensure the steam vent is not blocked.
Specs in practice
- Power Supply
- 220-240V, 50/60Hz
- Power Consumption
- 860-1024W during cooking
Images and diagrams
- Panel layout showing MENU, TASTE, TIMER, and START keys.
- Steam valve assembly instructions.
- Inner lid removal procedure.
Model compatibility
- Use only the provided inner pot.
- Do not use the inner pot on gas ranges or IH cooking appliances.
