User Manual for Trevi LTV 2010S2 Portable TV
Quick guide for the Trevi LTV 2010S2 portable TV. Learn how to set up, tune channels, use the remote, play media via USB, and troubleshoot common issues.
PDF source: italiano · summary: English
Quick answers from the manual
Quick answer
- The Trevi LTV 2010S2 is a portable 10.1-inch TV with DVB-T2 support. It can be powered via AC or 12V car adapter and supports media playback from USB or Micro SD cards. p. 1, 14
Key actions
- Perform auto-tuning for channels p. 7
- Play media from USB/Card p. 11, 23
First start
- Connect power and antenna, then follow the on-screen setup wizard to select language and country for channel scanning. p. 7
Show 4 more answers Show less
Problems and fixes
No image or sound
Check antenna connection and cable insertion.
p. 13Maintenance and reset
- If controls do not respond, unplug the power for 30 seconds to reset. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Screen Size | 10.1 inches | Display size | p. 14 |
| Resolution | 1024x600 | Maximum resolution | p. 14 |
Where to find it in the PDF
- Remote Control p. 18
- Troubleshooting p. 13, 24
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Trevi LTV 2010S2 is a portable television with a 10.1-inch screen, supporting DVB-T2 digital terrestrial signals. To get started, ensure the device is charged or connected to a power source, connect the antenna, and follow the on-screen setup wizard to scan for channels. You can play media files (photos, music, movies, text) directly from a USB drive or Micro SD card.
Safety precautions
- Keep the device away from extreme temperatures (storage: -20°C to 60°C; working: -5°C to 40°C).
- Do not use in wet environments like bathrooms or near swimming pools.
- Ensure at least 10 cm of space around the device for ventilation.
- Do not place heavy objects or sources of open flame (candles) on the device.
- Disconnect the power cable during thunderstorms or long periods of inactivity.
Controls and interfaces
The device features a side panel with physical buttons and ports, including:
- Side Panel: Power switch, 12V DC input, Micro SD slot, Headphone port, AV input, USB 2.0 port, HDMI input, and Antenna port.
- Control Keys: Volume control, Channel selection, Menu access, and Input source selection.
- Remote Control: Provides full access to menu settings, channel navigation, playback controls, and system modes.
Installation and connections
- Power Supply: Use the provided AC adapter (100-240V) or the 12V automotive adapter. Do not connect to 24V outlets in heavy vehicles.
- Antenna: Connect the provided portable antenna or a domestic 75-ohm antenna to the antenna input.
- External Devices: You can connect DVD players, cameras, or PCs via the HDMI or AV input ports. Select the appropriate source using the INPUT button.
Menu operations
Access the main menu by pressing the MENU button. Available menus include:
- Picture: Adjust contrast, brightness, color, sharpness, and aspect ratio.
- Sound: Adjust sound mode, balance, and surround sound settings.
- Time: Set clock, sleep timer, and auto-off/on schedules.
- Option: Change OSD language, audio/subtitle language, and restore factory defaults.
- Lock: Set parental guidance, block channels, and change the system password (default: 0000).
- Channel: Perform auto-tuning, manual tuning, and channel editing.
USB and card playback
Insert a USB drive or Micro SD card and select the corresponding source via the INPUT button. You can navigate through four categories: Photo, Music, Cinema (Video), and Text. Use the remote control to play, pause, stop, or repeat files.
Troubleshooting
- No image or sound: Check antenna connection and ensure the correct channel/source is selected.
- Remote not working: Check if batteries are inserted correctly and have sufficient charge.
- TV turns off automatically: Check if the sleep timer or auto-off function is enabled in the Time menu.
- No color: Verify color settings in the Picture menu.
Technical specifications
- Display: 10.1" TFT LED, 1024x600 resolution.
- Tuner: DVB-T2 (MPEG4/HEVC).
- Power: 12V DC, 12W max consumption.
- Battery: 2500 mAh.
- Connections: HDMI, AV, USB 2.0, Micro SD, Headphone, Antenna.
Manufacturer information
TREVI S.p.A.
Practical help
Common problems
No image or sound
Check the antenna connection and ensure the correct input source is selected.
Remote control does not work
Check if batteries are inserted correctly and replace them if necessary.
TV turns off automatically
Check the 'Time' menu to see if the sleep timer or auto-off function is active.
Blurry or unstable image
Check antenna connection or ensure the device is away from electromagnetic sources like neon lights.
Before use
- Check that all accessories (remote, adapters, antenna) are present.
- Ensure the device is placed on a flat, stable surface.
- Connect the antenna before turning on the device.
- Charge the internal battery if using in portable mode.
- Verify the power source voltage matches the adapter requirements.
Show more Show less
Images and diagrams

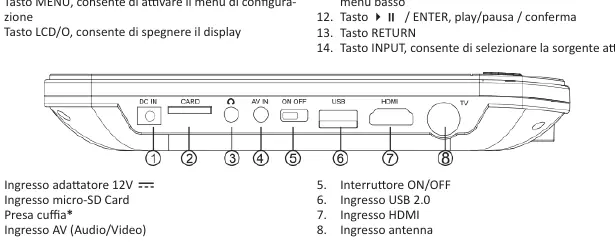

- The side panel contains the power switch, antenna input, and various media ports (USB, HDMI, AV).

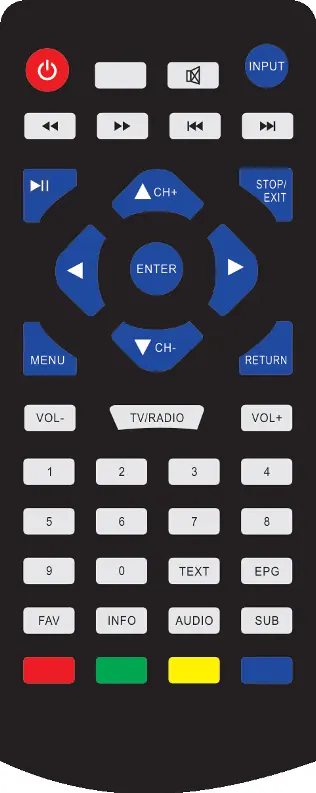

- The remote control includes dedicated buttons for channel navigation, volume, and media playback.
Model compatibility
- USB/Micro SD memory capacity should be 32GB or less.
- Do not connect to 24V cigarette lighter sockets in campers or heavy vehicles.
