User Manual for Tunturi WT80 Leverage Gym
Comprehensive user manual for the Tunturi WT80 Leverage Gym. Includes detailed assembly instructions, safety guidelines, exercise tips, maintenance procedures, and technical specifications.
Quick answers from the manual
Quick answer
- The Tunturi WT80 Leverage Gym is a home fitness station. This manual provides assembly steps, safety warnings, and exercise guidelines. p. 1, 14
Key actions
- Assemble with two people p. 15
- Lubricate moving parts p. 16
- Tighten bolts after full assembly p. 15
First start
- Ensure the equipment is on a level surface and all bolts are tightened before first use. p. 14, 15
Maintenance and reset
- Lubricate moving parts with WD-40 or light oil periodically. p. 16
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max user weight | 150 kg | Maximum weight capacity | p. 17 |
| Dimensions | 1644 x 1140 x 1823 mm | Assembled size | p. 17 |
Where to find it in the PDF
- Assembly p. 3, 4, 5, 6
- Parts List p. 34
- Exploded View p. 35
- Maintenance p. 16
Table of contents
Manual images
Click an image to enlargeImportant Information
The Tunturi WT80 Leverage Gym is designed for home use. This manual provides essential instructions for assembly, safe operation, and maintenance. It is strongly recommended that the equipment is assembled by two or more people to avoid injury.
Safety Precautions
- Keep children and pets away from the equipment at all times.
- Only one person at a time should use the equipment.
- If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, stop the workout immediately and consult a physician.
- Position the equipment on a clear, leveled surface. Do not use the equipment near water or outdoors.
- Keep hands away from all moving parts.
- Always wear appropriate workout clothing and shoes.
- Do not place any sharp objects around the equipment.
- A spotter is recommended during exercise.
Assembly Instructions
Important: Do not tighten all nuts and bolts until the entire unit is assembled. Ensure carriage bolts are inserted through square holes and hex bolts through round holes.

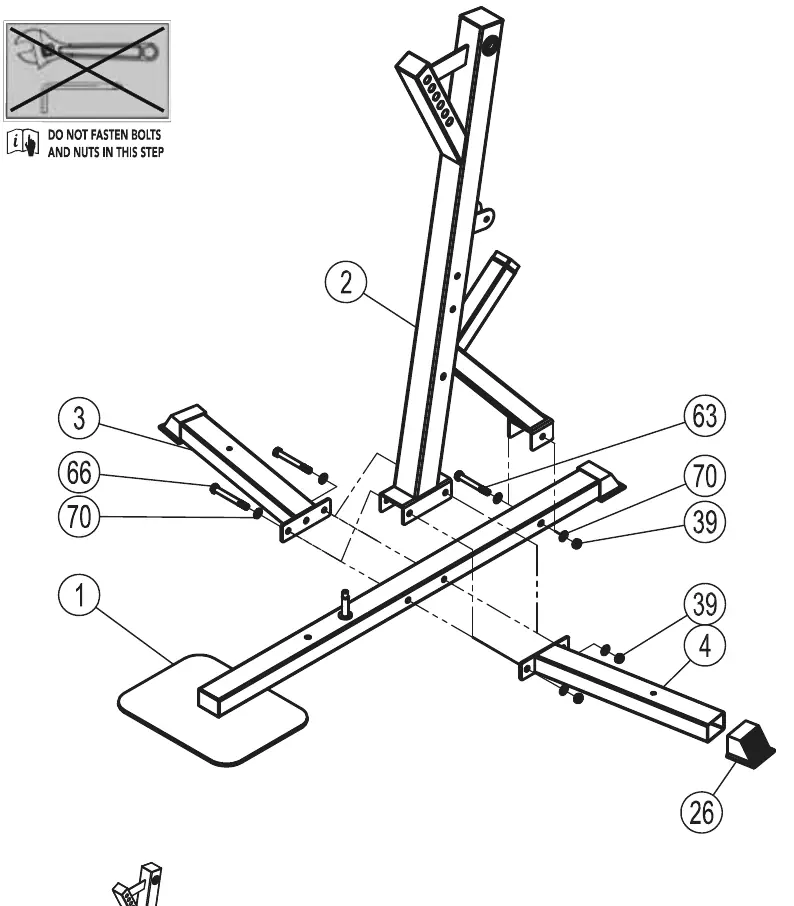

- Step 1: Assemble the base frame components using the provided bolts and nuts.

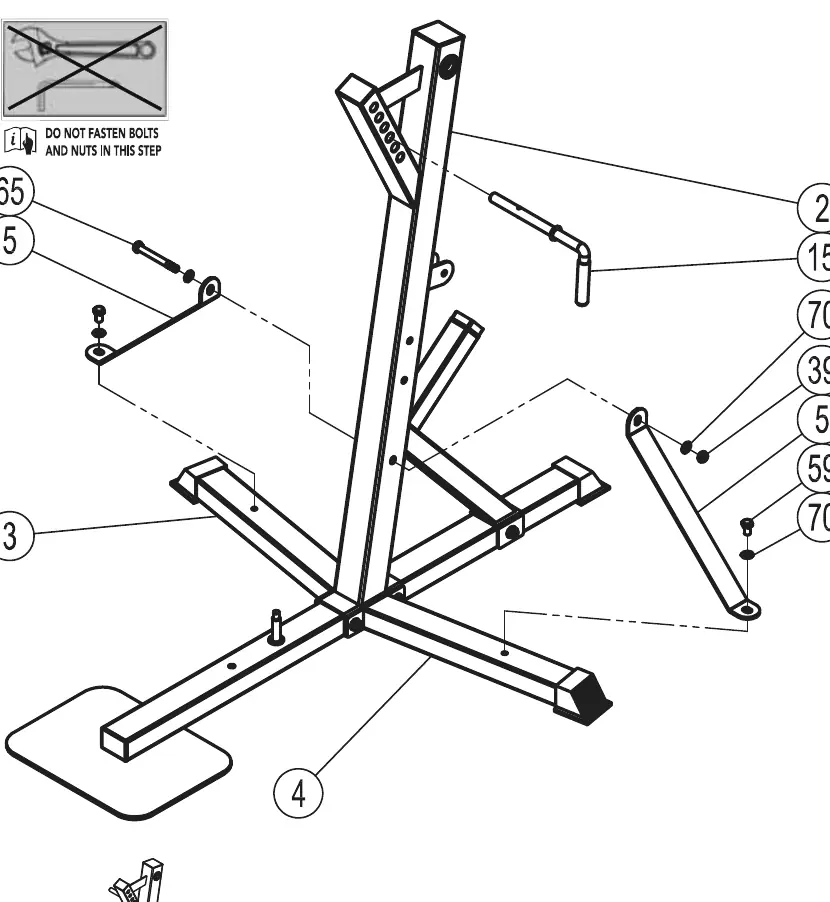

- Step 2: Attach the vertical frame supports.

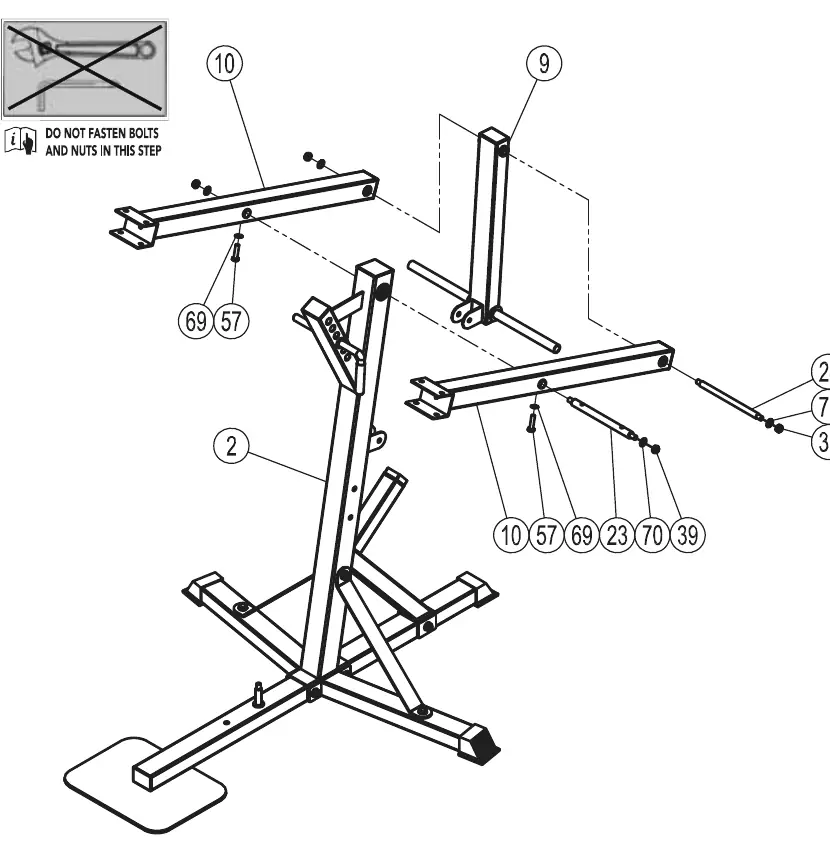

- Step 3: Install the lever support tubes and related linkages.

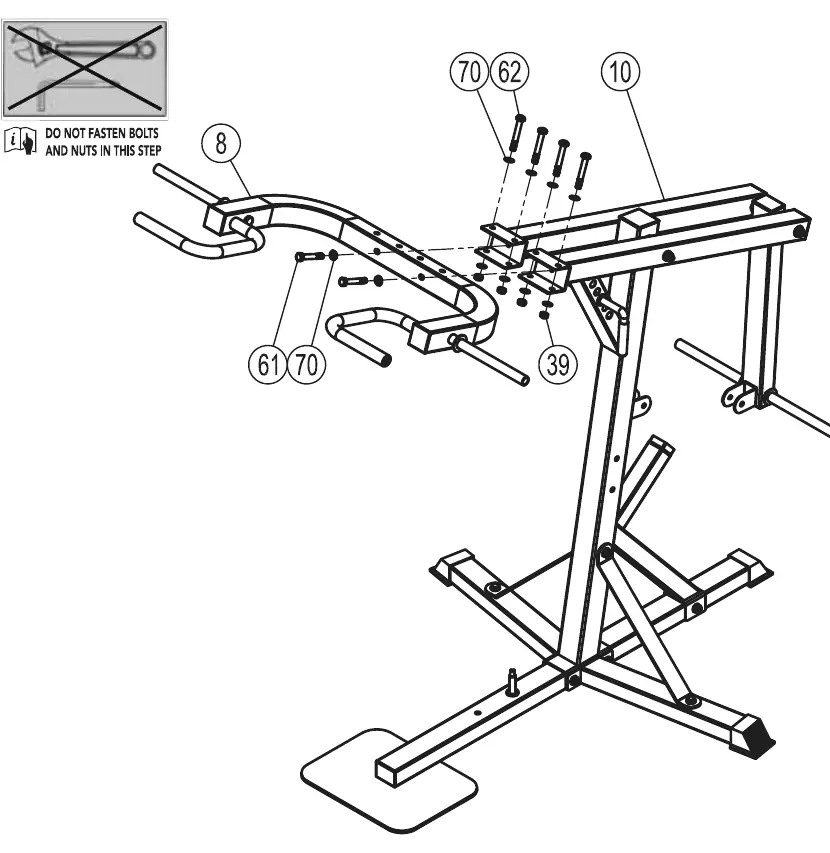

- Step 4: Mount the lever arm assembly.
- Step 5: Attach the seat and backrest support structures.
- Step 6-9: Complete the frame assembly, attach cushions, and secure all remaining hardware.
After assembly, securely tighten all nuts and bolts, but do not over-tighten components with pivoting functions to ensure they move freely.
Exercise Guidelines
To achieve the best results, develop a balanced exercise program. Gradually increase intensity as your fitness level improves. Always perform warm-up exercises (5-10 minutes) before starting and cool-down stretches after your workout. Stay hydrated by drinking water during your session.
Care and Maintenance
- Lubricate moving parts with WD-40 or light oil periodically.
- Inspect and tighten all parts before using the equipment.
- Clean the equipment using a damp cloth and mild non-abrasive detergent. Do not use solvents.
- Examine the equipment regularly for signs of damage or wear. Replace any defective components immediately and keep the equipment out of use until repaired.
Technical Specifications
- Maximum user weight: 150 kg
- Assembled dimensions: 1644 x 1140 x 1823 mm
Warranty and Support
Tunturi New Fitness warrants this product to be free from defects in workmanship and material for two years on the frame and one year on all other parts from the date of purchase. For replacement parts or support, contact the customer service department via email at [email protected].
Practical help
Common problems
Equipment feels unstable
Ensure the equipment is placed on a level surface and that all bolts are tightened properly after full assembly.
Moving parts are stiff or noisy
Lubricate all moving parts with WD-40 or light oil.
Muscle soreness after training
Ensure proper warm-up and cool-down routines; gradually increase training intensity.
Before use
- Ensure the equipment is on a level surface.
- Check that all bolts and nuts are tightened.
- Verify that moving parts operate freely.
- Ensure no sharp objects are near the equipment.
- Wear appropriate workout clothing and shoes.
Specs in practice
- Max user weight
- 150 kg
- Assembled dimensions
- 1644 x 1140 x 1823 mm
Images and diagrams
- Assembly steps 1-9 show the sequence of connecting the frame components.

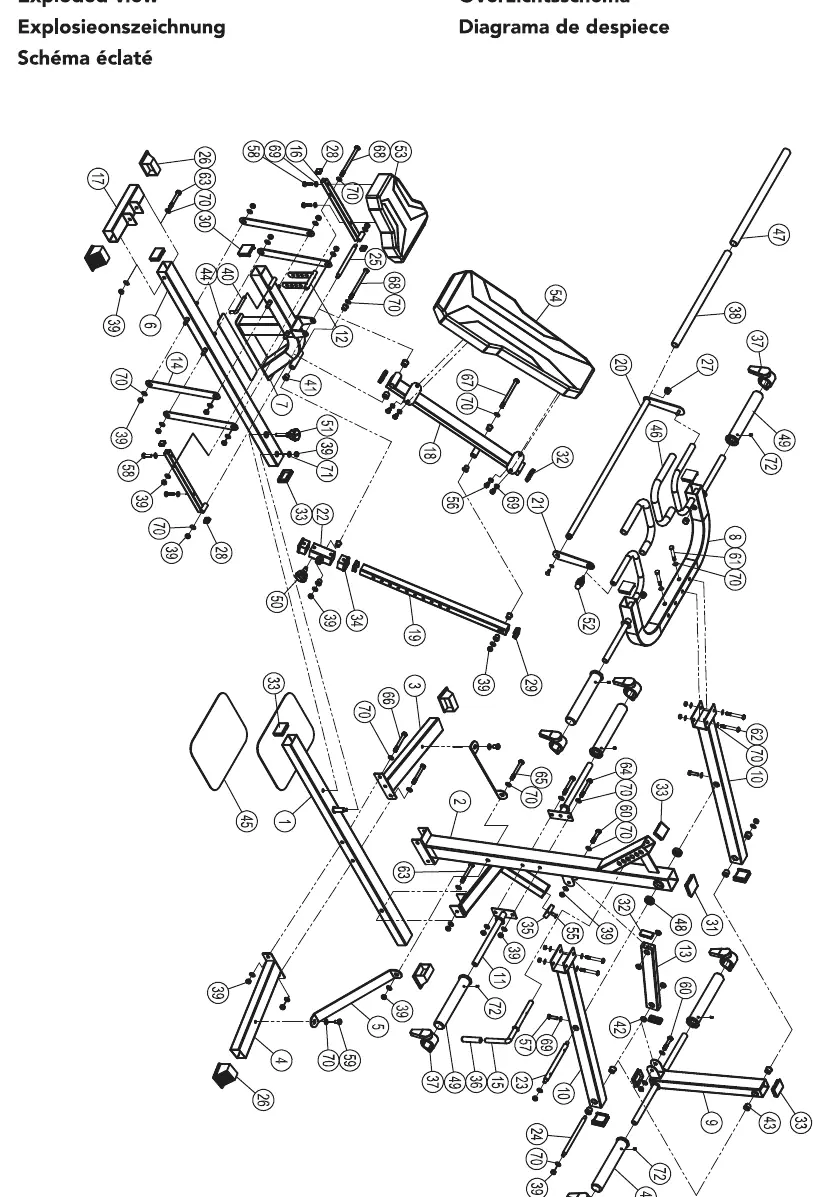

- Exploded view on page 35 helps identify specific parts by number for ordering replacements.
Model compatibility
- Designed for home and consumer use only, not for commercial use.
