4-Layer Kitchen Cart 210906YH01-2-WP User Guide
Comprehensive assembly and usage guide for the 4-layer kitchen cart (model 210906YH01-2-WP). Includes a complete accessory list, step-by-step installation instructions, and essential safety tips for stable operation.
Quick answers from the manual
Quick answer
- The 4-layer kitchen cart is assembled by connecting the base wheels, upper tubes, and baskets using the provided clips and screws. Ensure heavy items are placed on the bottom basket for stability. p. 1, 2
Key actions
- Assemble the cart p. 2
- Stabilize the cart p. 1
Problems and fixes
Uneven feet
Use the provided leveling pad on the wheel.
p. 1Show 1 more answers Show less
Where to find it in the PDF
- Overview and Safety p. 1
- Accessories and Installation p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This 4-layer kitchen cart is designed for efficient storage. Before assembly, ensure you have all parts listed. If you find the cart is unstable or the feet are uneven after assembly, use the provided leveling pad on the wheel to stabilize it.
Accessories List
Before starting the installation, verify that you have all the following components:
- Bottom Basket (1)
- Upper Section Tube (3)
- Top Cover (1)
- Wheel (4)
- Rotary Tube (3)
- Magnet Clip (3)
- Fixed Clip (3)
- Butt joint (3)
- Top Screw (3)
- Screw (6)
- Wrench (1)

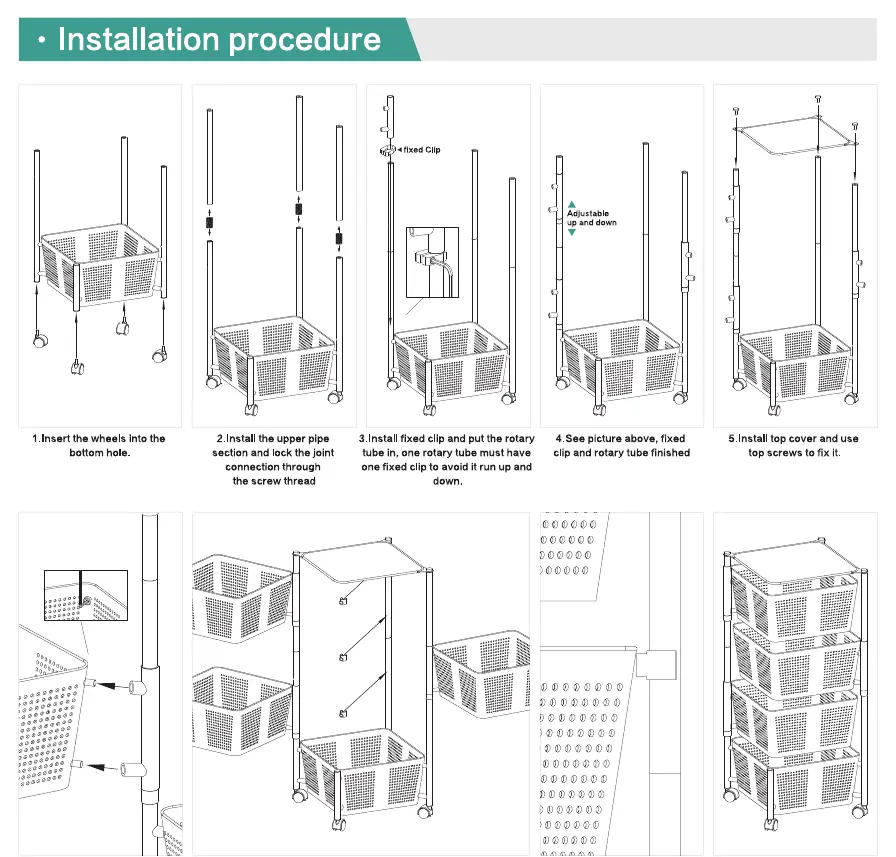

Installation Procedure
- Insert the wheels into the bottom hole of the base.
- Install the upper pipe section and lock the joint connection using the screw thread.
- Install the fixed clip and insert the rotary tube. Ensure one fixed clip is used to prevent the tube from sliding up and down.
- Adjust the fixed clip and rotary tube to the desired height.
- Install the top cover and secure it using the top screws.
- Install the baskets, ensuring the holes and rotary tubes are aligned correctly, then tighten the screws firmly.
- Attach the magnet clip in a suitable position to facilitate pulling the baskets.
- Verify the magnet clip position is secure.
- Installation is now complete.
Usage and Safety Tips
- Always place heavy objects on the bottom basket to maintain stability.
- Maintain left and right balance when rotating and opening the cart.
- Ensure the basket is closed and pushed back into position after taking or placing items.
Practical help
Common problems
Cart is unstable or feet are uneven
Use the provided leveling pad on the wheel to adjust the balance.
Baskets slide up and down
Ensure the fixed clip is installed correctly on the rotary tube to lock it in place.
Before use
- Verify all accessories are present (Basket, Tubes, Clips, Screws, Wrench).
- Ensure the assembly surface is flat.
- Check that all screws are tightened firmly after assembly.
- Confirm the magnet clips are positioned correctly for basket access.
Show more Show less
Images and diagrams
- The installation procedure diagram illustrates the 9-step assembly process, from inserting wheels to securing the top cover and baskets.
- The leveling pad diagram shows how to insert the pad into the wheel if the cart is uneven.
