User Manual for Uolfin 5069504 1-Light Lantern
Quick guide for installing and maintaining the Uolfin 5069504 1-Light Lantern. Includes wiring diagrams, tool requirements, and safety instructions.
Quick answers from the manual
Quick answer
- This manual provides instructions for the assembly, installation, and maintenance of the Uolfin 5069504 1-Light Lantern fixture. p. 1, 2, 3
Key actions
- Install the fixture by mounting the plate, connecting wires, and attaching the back plate. p. 2, 3
- Clean the fixture using a soft cloth and mild, non-abrasive soap. p. 3
First start
- Shut off electricity at the main fuse box and wall switch before starting. p. 1, 2
- Assemble the fixture by following steps A1 through A5. p. 2, 3
Show 3 more answers Show less
Problems and fixes
Back plate (E) is not snug against the wall.
Remove back plate, adjust the threaded length of pre-assembled mounting screws on mounting plate (D) by unscrewing hex nuts and screwing screws in or out, then re-attach.
p. 3Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Required electrical voltage | p. 1 |
| Maximum Wattage | 60W | Maximum power per bulb | p. 1, 3 |
Where to find it in the PDF
- Safety, Tools, and Warnings p. 1
- Parts List and Initial Assembly p. 2
- Wiring, Final Assembly, and Cleaning p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and safety instructions for the Uolfin 5069504 1-Light Lantern. Before starting, ensure the main power is turned off at the circuit breaker. The fixture requires a 120V power supply and supports a maximum of 60W per bulb. Ensure the mounting surface is clean, dry, and strong enough to support the lamp.

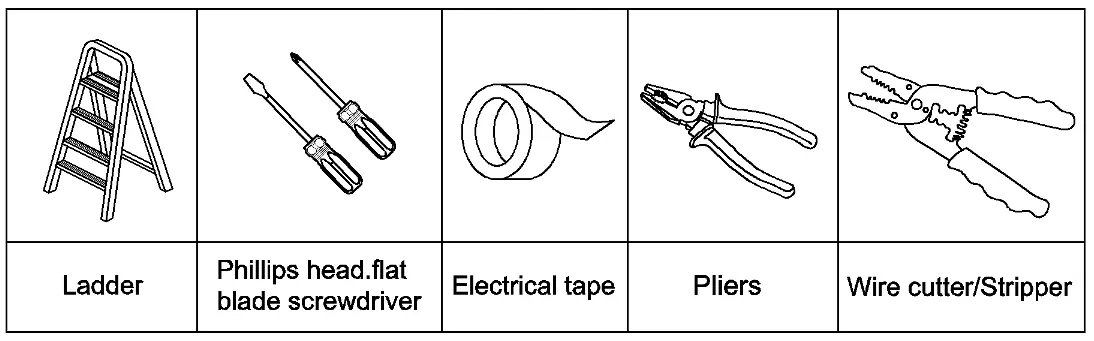

Required Tools: Ladder, Phillips head/flat blade screwdriver, electrical tape, pliers, and wire cutter/stripper.

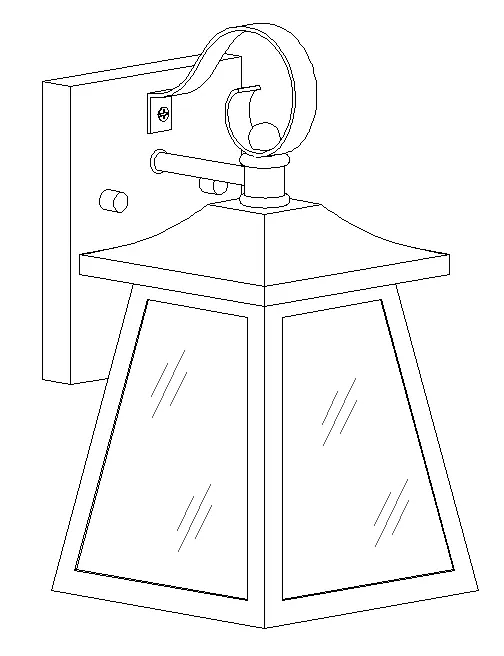

Product description and parts
The package includes the following components:
- Green ground screw
- Mounting plate
- Back plate
- Gaskets (2)
- Knob nuts (2)
- Iron frame
- Glass shades (4)
- Mounting screws (2)
- Plastic wire connectors (3)
Installation instructions
Follow these steps to install the fixture:
- Preparation: Remove gaskets and knob nuts from the back plate and set them aside.
- Mounting: Pass supply wires from the outlet box through the mounting plate. Secure the mounting plate to the outlet box using the provided mounting screws.
- Wiring: Connect the wires according to the wiring chart. Twist wires together with plastic wire connectors, wrap with electrical tape, and tuck them into the outlet box.
- Final Assembly: Align the back plate with the pre-assembled mounting screws. Attach the back plate to the mounting plate using the previously removed gaskets and knob nuts. Hand tighten until snug.
- Bulb Installation: Install the bulb (not included), ensuring it does not exceed the maximum recommended wattage.
Wiring
Connect the ground wires and supply wires carefully. The ground wire is bare copper; never connect other wires to the ground wire. Use the provided plastic wire connectors to join wires securely. Ensure no wire strands are exposed after connection.
Cleaning and maintenance
To clean the fixture, wipe it with a soft cloth. Use a mild, non-abrasive cleaner for the glass. Do not use abrasive materials such as scouring pads, powders, steel wool, or abrasive paper. Always turn off or unplug the lamp and allow it to cool before replacing bulbs.
Practical help
Common problems
Back plate is not snug against the wall
Remove the back plate and adjust the threaded length of the pre-assembled mounting screws on the mounting plate by unscrewing the hex nuts, then screwing the mounting screws in or out until the secure length is achieved.
Bulb replacement safety
Turn off or unplug the lamp and wait until it is cool before replacing the bulb, as bulbs get hot quickly.
Before use
- Turn off the main power at the fuse or circuit breaker box.
- Ensure the wall switch is in the OFF position.
- Verify the mounting surface is clean, dry, flat, and at least 1/4 inch larger than the canopy.
- Confirm the ceiling or wall can support the weight of the lamp.
- Prepare necessary tools: ladder, screwdriver, electrical tape, pliers, and wire cutter.
- Check that all parts listed in the manual are included.
Show more Show less
Specs in practice
- Maximum Wattage
- 60W per bulb
Images and diagrams

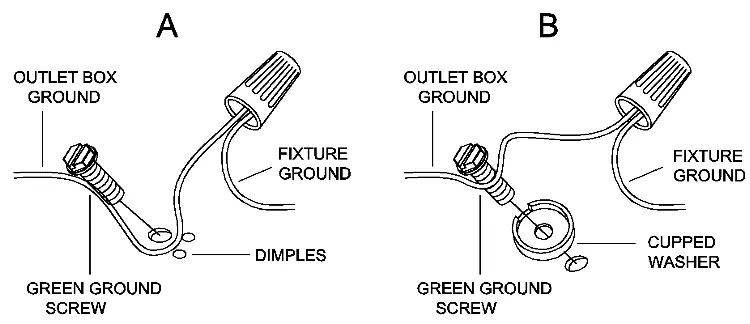

- The wiring diagram illustrates how to connect the fixture ground wire to the outlet box ground wire using the green ground screw.
- The assembly diagram (A1-A5) shows the step-by-step process of mounting the plate, connecting wires, and securing the fixture to the wall.
Model compatibility
- Use only with 120V power supply.
- Do not exceed 60W per bulb.
