Uolfin 5106284 Amelia 3-Light Brass Gold Installation Guide
Installation guide for the Uolfin 5106284 Amelia 3-Light Brass Gold fixture. Includes safety warnings, wiring instructions, assembly steps, and maintenance tips.
Quick answers from the manual
Quick answer
- The Uolfin 5106284 is a 3-light fixture. Installation requires turning off the main power, mounting the plate, connecting wires according to the provided chart, and securing the fixture. p. 1, 2, 3
Key actions
- Turn off electricity p. 1, 2
- Connect wires p. 3
First start
- Turn off power at the circuit breaker, mount the plate, connect wires, secure the fixture, and install bulbs. p. 2, 3
Show 3 more answers Show less
Maintenance and reset
- Clean with a soft cloth and mild, non-abrasive cleaner. Do not use abrasive materials. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Operating voltage | p. 1 |
| Max Wattage | 40W | Maximum wattage per bulb | p. 1 |
Where to find it in the PDF
- Safety and Tools p. 1
- Parts and Assembly p. 2
- Wiring and Finishing p. 3
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides installation instructions for the Uolfin 5106284 3-Light fixture. Before beginning, ensure the main power is turned off at the circuit breaker. The fixture requires a 120V power supply and supports a maximum of 40W per bulb. Installation by a licensed electrician is recommended.

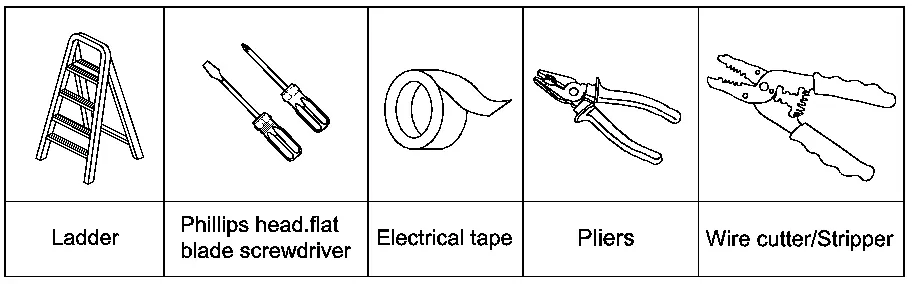

Required Tools: Ladder, Phillips head/flat blade screwdriver, electrical tape, pliers, and wire cutter/stripper.
Parts Included
Before starting, verify that all parts are present:
- Green ground screw (1)
- Mounting plate (1)
- Back plate (1)
- Glass plates (12)
- Screws (24)
- Iron lining board (3)
- Iron tube (1)
- Knob nuts (2)
- Taper pipes (3)
- Mounting screws (2)
- Plastic wire connectors (3)
Installation Instructions
- Preparation: Turn off the main power at the fuse or circuit breaker box.
- Mounting: Unscrew the knob nuts (J) from the back plate (E) and remove the mounting plate (D). Secure the mounting plate (D) to the outlet box using the mounting screws (A).
- Wiring: Connect the fixture wires to the supply wires according to the wiring chart. Ensure the ground wire is connected to the bare copper ground wire. Use plastic wire connectors and wrap with electrical tape.
- Final Assembly: Align the back plate (E) with the pre-assembled mounting screws and secure it using the knob nuts (J). Hand tighten until snug.
- Finishing: Screw the taper pipes (K) onto the iron tube (I). Attach the glass plates (F) to the iron lining boards (H) using the screws (G). Install the bulbs (not included).
Wiring Connections
Follow the provided wiring chart carefully:
- Connect the Black or Red supply wire to the Black fixture wire.
- Connect the White supply wire to the White fixture wire.
- Connect the ground wire to the bare copper ground wire.
- Ensure no wire strands are exposed after using wire connectors.
Cleaning and Maintenance
To clean the fixture, wipe it with a soft cloth. Use a mild, non-abrasive cleaner for the glass. Do not use abrasive materials such as scouring pads, powders, steel wool, or abrasive paper, as these may damage the surface.
Practical help
Common problems
Fixture does not light up
Check if the bulb is installed correctly, ensure the power is on at the circuit breaker, and verify all wiring connections are secure.
Bulb gets too hot
Ensure you are not exceeding the maximum wattage of 40W per bulb.
Before use
- Turn off the main power at the circuit breaker.
- Ensure the mounting surface is clean, dry, and flat.
- Verify the ceiling or wall can support the weight of the lamp.
- Prepare tools: ladder, screwdriver, electrical tape, pliers, wire cutter/stripper.
- Check that all parts listed in the manual are included.
Show more Show less
Images and diagrams

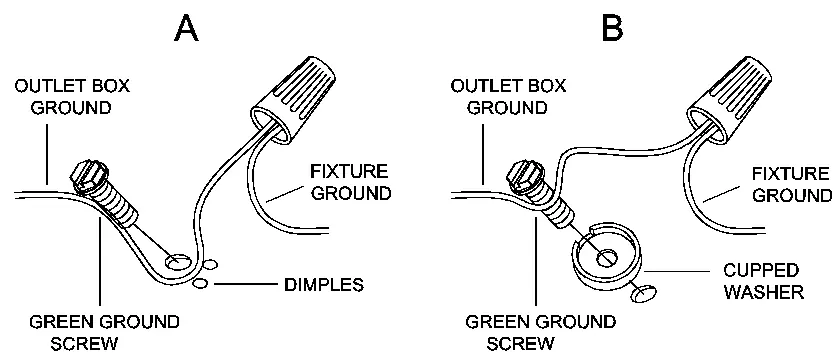

- The manual provides a detailed wiring diagram showing how to connect the fixture ground to the outlet box ground.

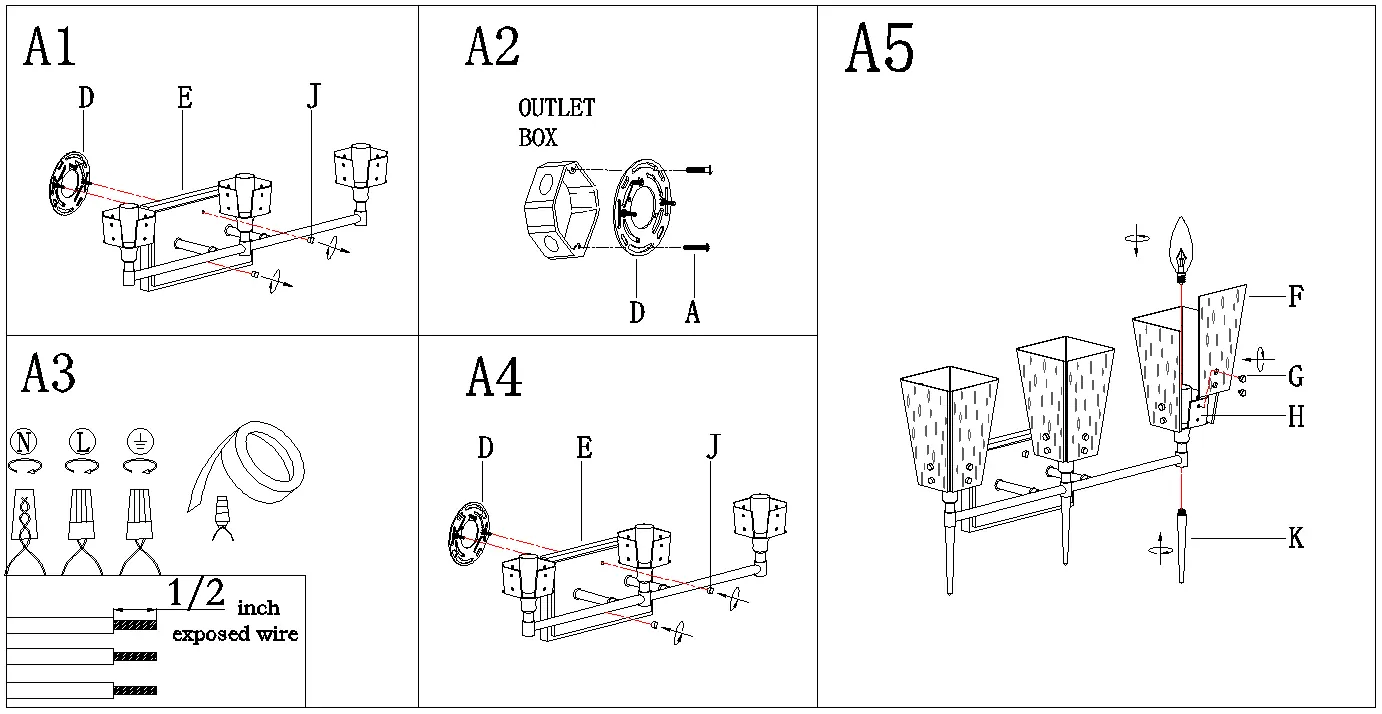

- Step-by-step assembly illustrations show the sequence of mounting the plate and attaching the fixture components.
Model compatibility
- Requires 120V power supply.
- Maximum 40W per bulb.
