Installation Guide for Uolfin 5069627 Vanity Light
Step-by-step installation guide for the Uolfin 5069627 Melisa 2-Light Vanity Light. Includes wiring instructions, safety precautions, and maintenance tips.
Quick answers from the manual
Quick answer
- This manual provides instructions for installing the Uolfin 5069627 2-Light Vanity Light, including safety warnings, wiring diagrams, and assembly steps. p. 1, 2, 3
Key actions
- Turn off electricity at the main breaker p. 1, 2
- Connect wires according to the chart p. 3
- Install bulbs and glass shades p. 3
First start
- Ensure power is off, mount the plate, connect wires, attach the back plate, and install bulbs/shades. p. 2, 3
Show 4 more answers Show less
Problems and fixes
Back plate not snug against wall
Adjust the threaded length of the mounting screws on the mounting plate assembly.
p. 3Maintenance and reset
- Wipe with a soft cloth. Clean glass with mild, non-abrasive soap. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V | Required power supply | p. 1 |
| Max Wattage | 40W | Maximum wattage per bulb | p. 1 |
Where to find it in the PDF
- Safety and Tools p. 1
- Parts and Assembly p. 2
- Wiring and Finishing p. 3
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides instructions for the safe installation of the Uolfin 5069627 vanity light. Before beginning, ensure the main power is turned off at the circuit breaker. The fixture requires a 120V power supply and supports a maximum of 40W per bulb. Installation by a licensed electrician is recommended.
Tools Required
Before starting, ensure you have the following tools available:
- Ladder
- Phillips head and flat blade screwdriver
- Electrical tape
- Pliers
- Wire cutter/stripper

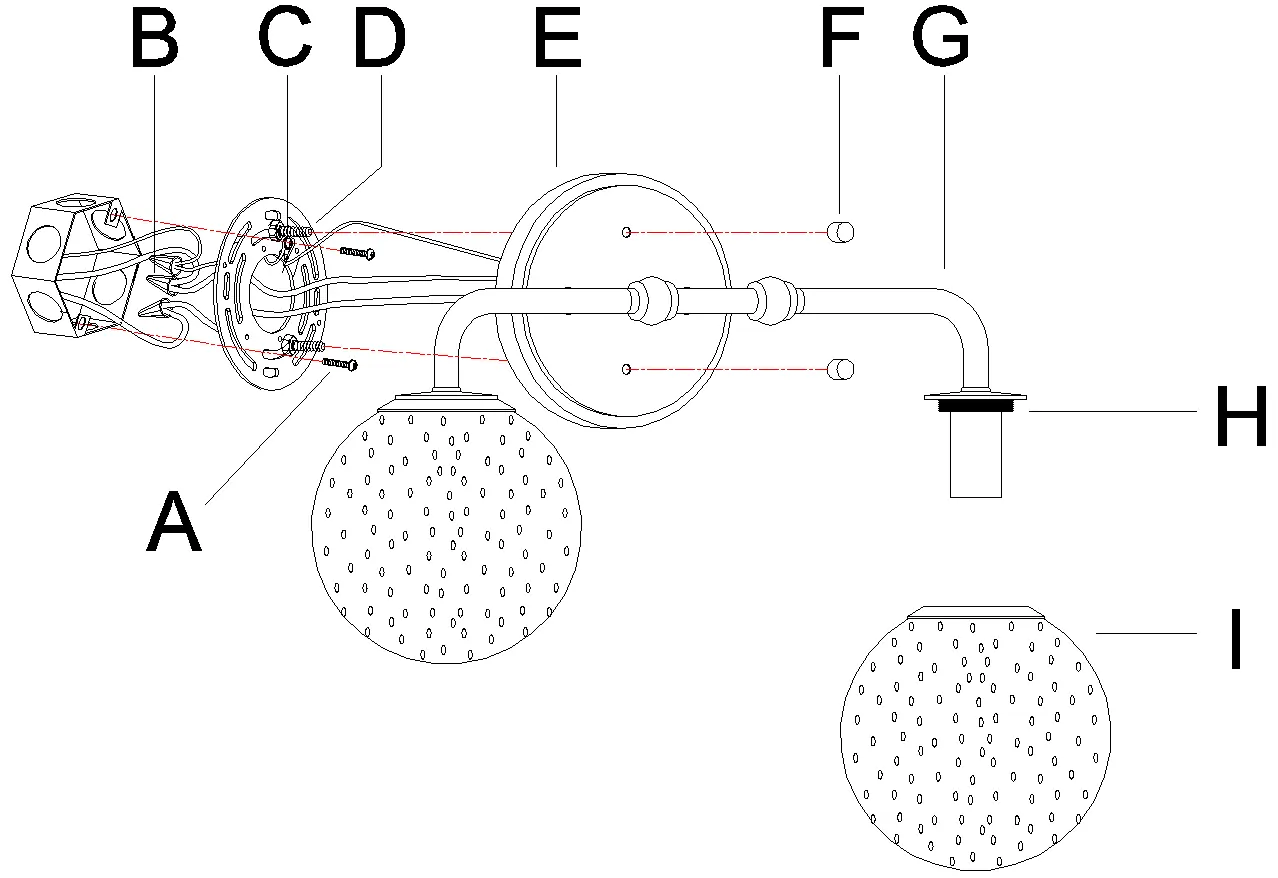

Parts Included
The package contains the following components:
- Mounting plate (D)
- Back plate (E)
- Knob nuts (F)
- Arm (G)
- Sockets (H)
- Glass shades (I)
- Green ground screw (C)
- Mounting screws (A)
- Plastic wire connectors (B)
Installation Steps
1. Preparation: Turn off the electricity at the main fuse or circuit breaker box and the wall switch. Ensure the mounting surface is clean, dry, flat, and strong enough to support the lamp.
2. Mounting: Secure the mounting plate (D) to the outlet box using the mounting screws (A). Pass the supply wires through the mounting plate.
3. Wiring: Connect the fixture wires to the supply wires using the plastic wire connectors. Follow the provided wiring chart carefully. Ensure the ground wire is connected to the green ground screw. Wrap each connector with electrical tape and ensure no wire strands are exposed before tucking wires into the outlet box.
4. Final Assembly: Align the back plate (E) with the pre-assembled mounting screws on the mounting plate (D) and secure it with the knob nuts (F). If the back plate is not snug against the wall, adjust the threaded length of the mounting screws on the mounting plate. Install the bulbs (not included) and screw the glass shades (I) onto the sockets (H).
Cleaning and Maintenance
To clean the fixture, wipe it with a soft cloth. Clean the glass shades with a mild, non-abrasive soap. Do not use abrasive materials, scouring pads, powders, steel wool, or abrasive paper, as these can damage the surface.
Practical help
Common problems
Back plate is not snug against the wall
Remove the back plate and adjust the threaded length of the pre-assembled mounting screws on the mounting plate assembly by unscrewing the hex nuts and screwing the mounting screws in or out.
Wiring confusion
Refer to the wiring chart in the manual. Ensure the ground wire is connected to the bare copper wire and never connect other wires to the ground wire.
Before use
- Turn off the main power at the circuit breaker.
- Ensure the mounting surface is clean, dry, and flat.
- Verify the voltage is 120V.
- Prepare necessary tools: ladder, screwdriver, pliers, wire cutter, and electrical tape.
- Check that all parts listed in the manual are present.
Show more Show less
Specs in practice
- Maximum Wattage
- 40W per bulb
Images and diagrams

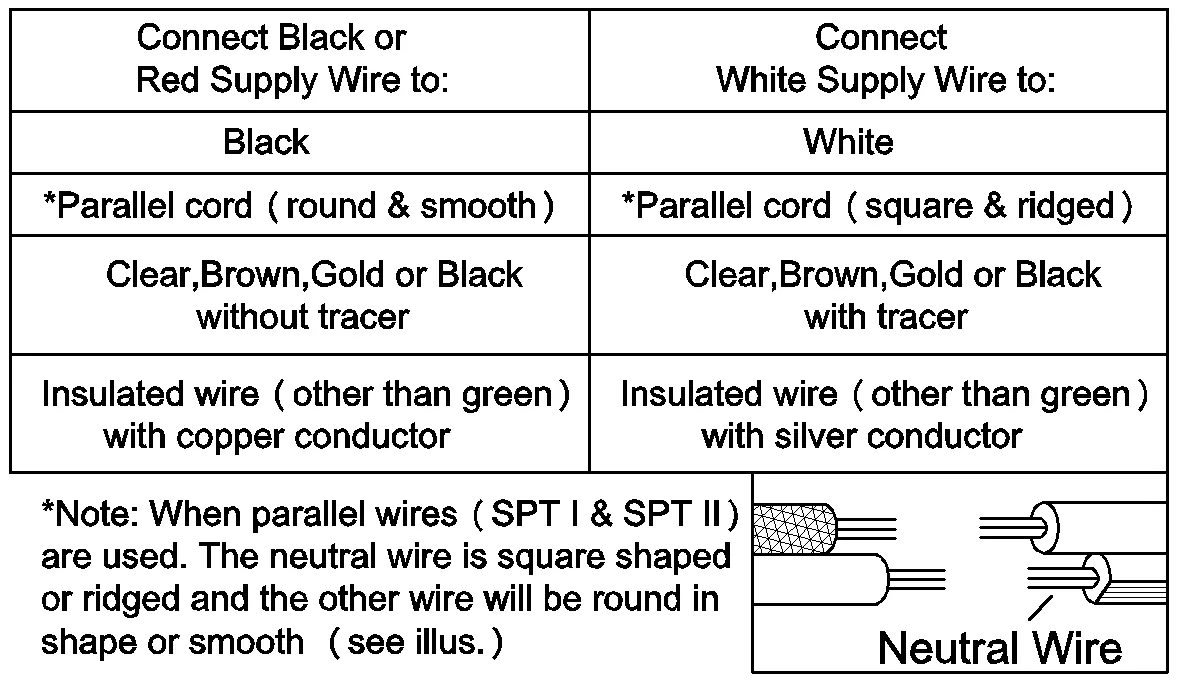

- The wiring diagram illustrates how to connect the supply wires to the fixture wires using plastic connectors.
- The assembly diagram shows the sequence of attaching the mounting plate, back plate, and securing it with knob nuts.
Model compatibility
- Ensure the ceiling or wall can support the weight of the lamp.
- The mounting surface must be at least 1/4 inch larger than the canopy on all sides.
