Veikous 12PCE Large Dog Kennel Assembly Guide

Important Information

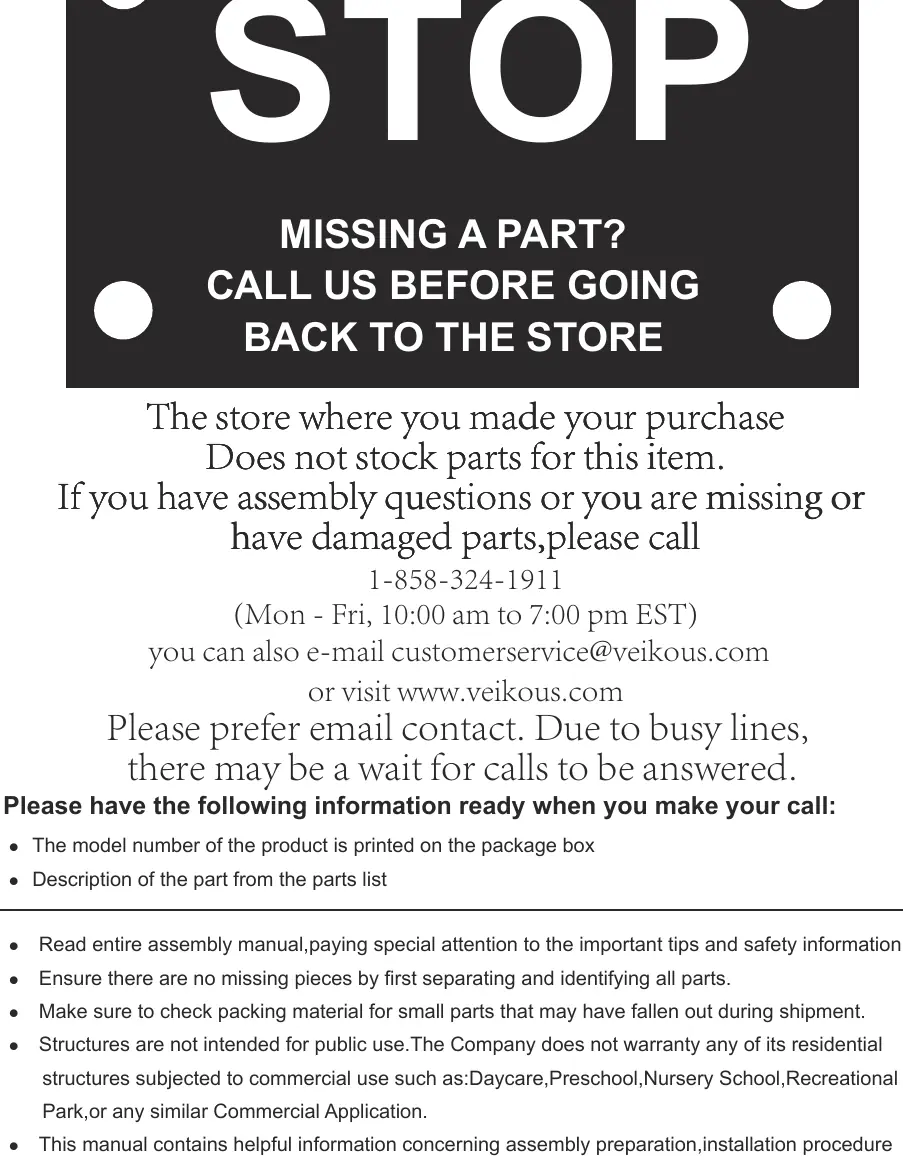

Before beginning assembly, please read the entire manual. If you find any missing or damaged parts, do not return the product to the store. Please contact Veikous customer service via email at [email protected] or call 1-858-324-1911 (Mon-Fri, 10:00 am to 7:00 pm EST). This structure is intended for residential use only and is not warranted for commercial applications such as daycares, schools, or recreational parks.

Parts and Hardware

Ensure all parts are present before starting. The hardware kit includes items A through K (screws, nuts, washers, and tools). The main structure consists of parts 1 through 20, including wire panels, roof supports, and roof cover components.

Assembly Instructions

Follow these steps to assemble your kennel:

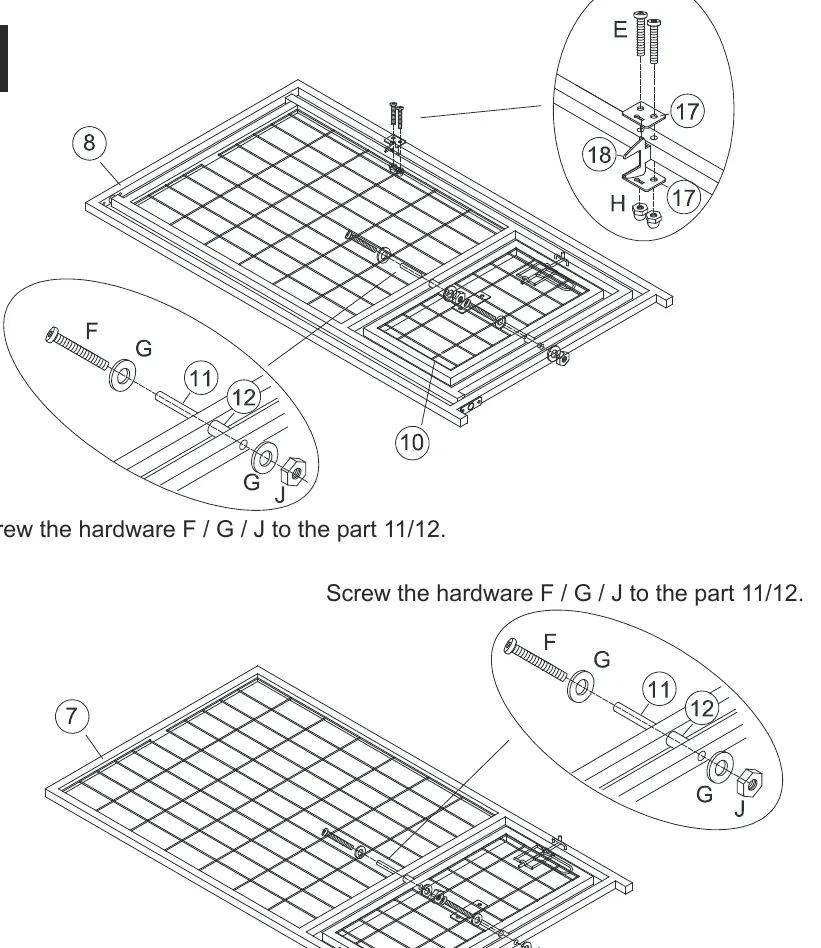

• Step 1: Attach hardware E/H to parts 17/18 and hardware F/G/J to parts 11/12.
• Step 2: Connect panels 7/8, 5/5, and 6/6 using hardware C/K and parts 14/15.

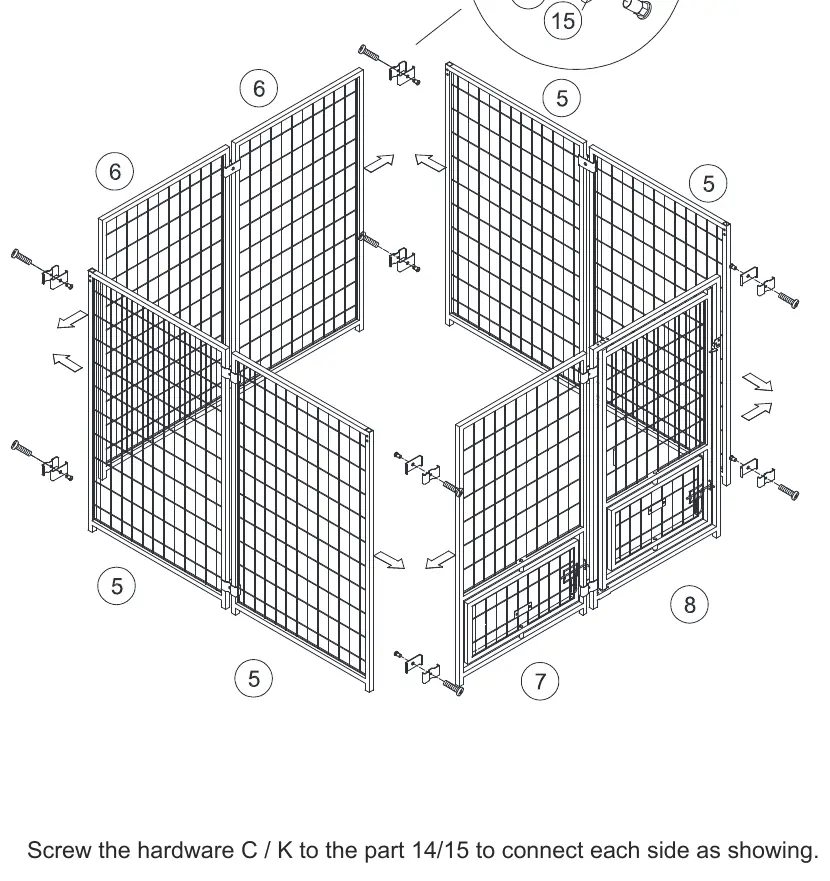

• Step 3: Connect the side panels together using hardware C/K and parts 14/15 to form the main enclosure.
• Step 4: Assemble the roof frame by connecting parts 1/3 and 2/4 with hardware C/H, then secure the cross-frame with hardware D/J.
• Step 5: Mount the assembled roof frame onto the main enclosure frame using hardware D/J.
• Step 6: Attach part 13 to the frame using hardware B/J and place it on part 16.

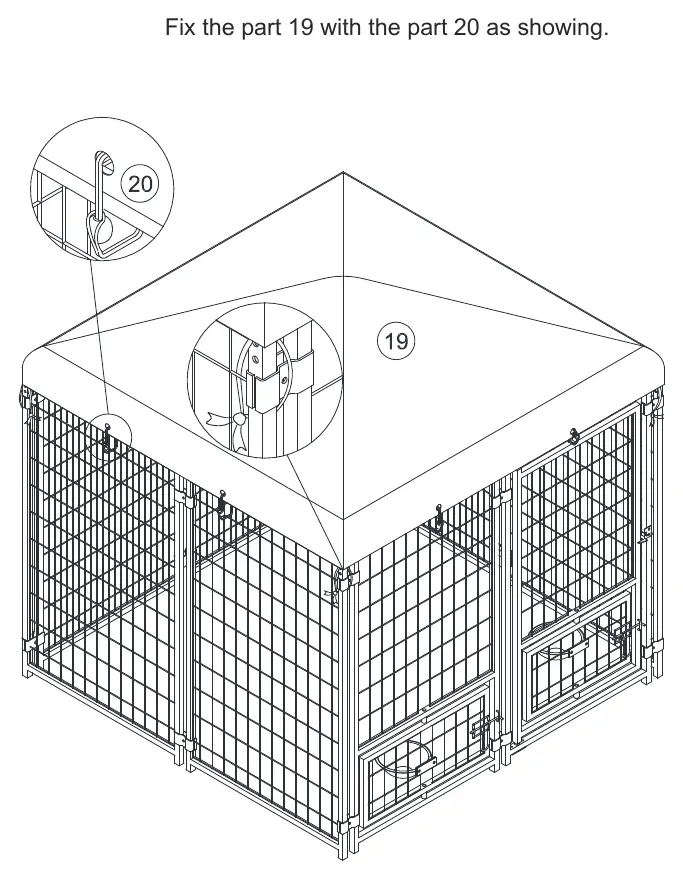

• Step 7: Secure the roof cover (part 19) to the frame using the provided ties (part 20).

Care and Cleaning

To maintain the kennel, clean it with a damp cloth and dry thoroughly to prevent mildew. Do not use abrasive materials, bleach, or solvents. Store the kennel in a dry, sheltered place when not in use and keep it away from fire, extreme heat, freezing conditions, and inclement weather.
