User Manual for VEVOR 211F Computer Case
A comprehensive installation guide for the VEVOR 211F computer case. This manual covers component installation, including motherboard, power supply, storage drives, fans, and graphics cards.
Quick answers from the manual
Quick answer
- The VEVOR 211F is a computer case. The manual provides step-by-step instructions for installing the motherboard, power supply, storage drives, fans, and graphics card. p. 4, 6, 7, 8
Key actions
- Remove side and front panels p. 6
- Install motherboard p. 10
- Install power supply p. 9
Where to find it in the PDF
- Parts and Wiring p. 4
- Installation Steps p. 6, 7, 8, 9
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual

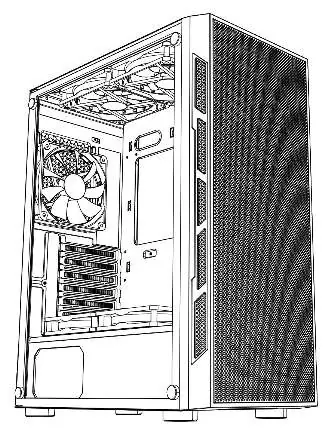

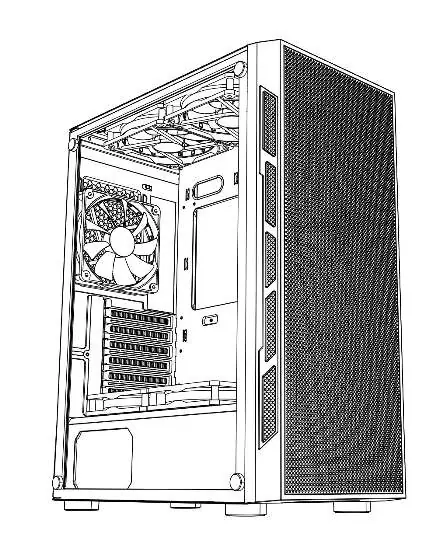

The VEVOR 211F is a computer case designed for standard PC builds. This manual provides instructions for assembling your system, including installing the motherboard, power supply, storage drives, and cooling fans. Please read all instructions carefully before beginning the installation process.

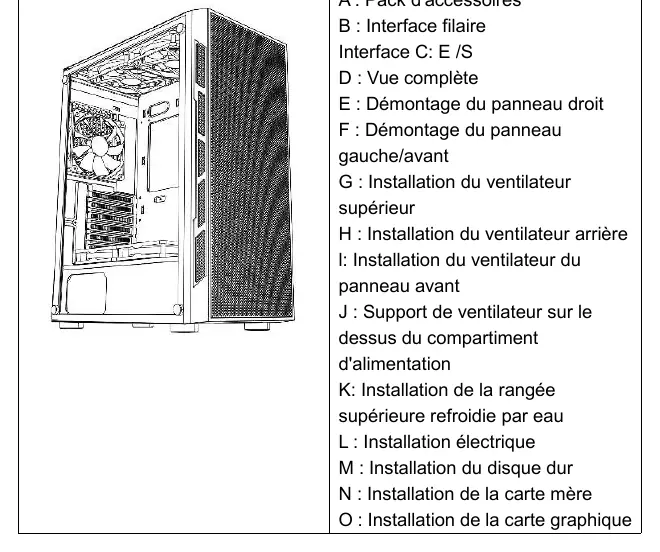

Product Overview
The case features a front I/O panel with the following interfaces:
- Power button
- Cue Light
- HD Audio ports
- USB 2.0 ports
- Reset button
- LED indicator
- USB 3.0 port
Installation Guide

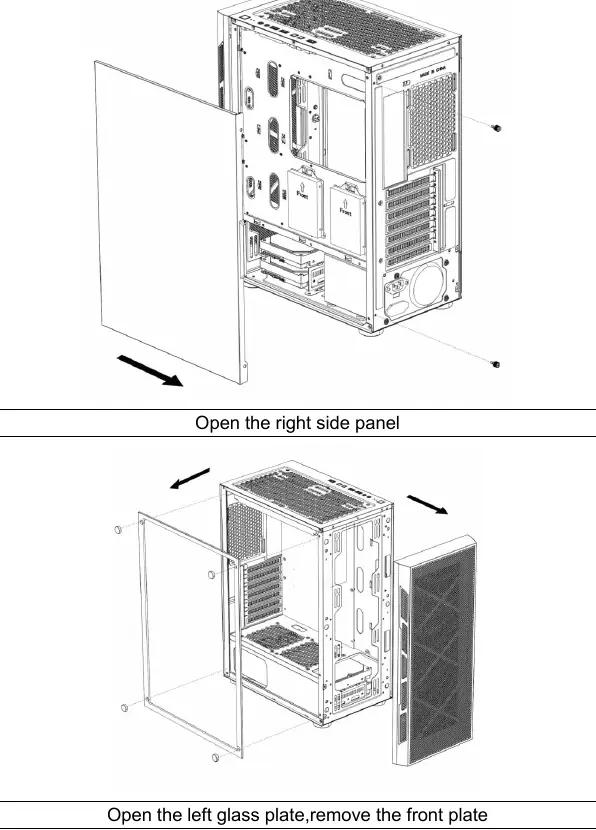

Panel Removal
Before installing components, remove the side and front panels:
- Right side panel: Unscrew and slide off.
- Left glass plate: Unscrew and remove.
- Front plate: Remove to access front fan mounts.
Component Installation
Follow these steps to install your hardware:
- Fans: Install top, back, and front panel fans using the provided mounting points. A fan mount is also available on top of the power supply compartment.
- Water Cooling: If necessary, install a water-cooling radiator on the top of the chassis.
- Power Supply: Install the power supply unit in the designated area.
- Storage Drives: Install SSD and HDD hard drives in the drive bays.

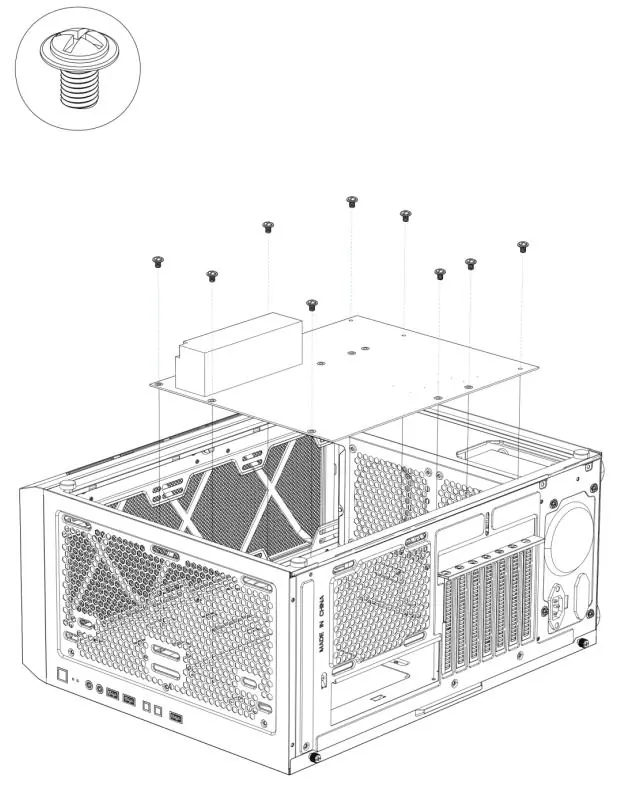

- Motherboard: Secure the motherboard using the provided copper pillars and screws.
- Graphics Card: Install the graphics card into the PCIe slots.

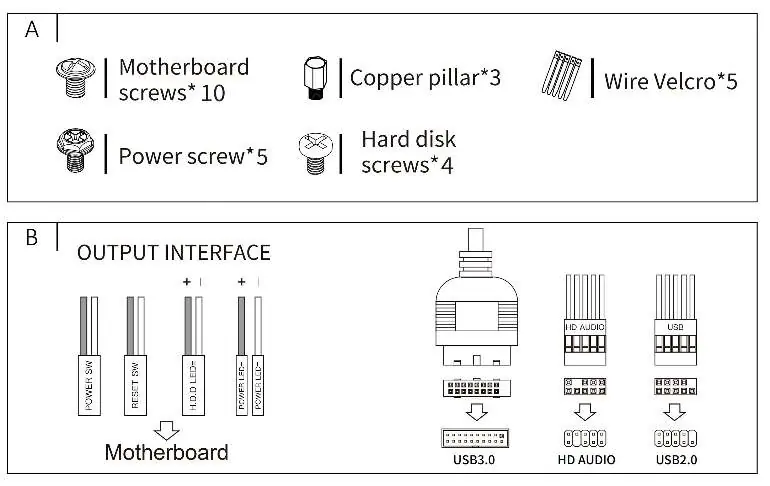

Accessories
The accessories package includes:
- Motherboard screws (10)
- Power screws (5)
- Copper pillars (3)
- Hard disk screws (4)
- Wire Velcro (5)
Manufacturer information
VEVOR
Practical help
Common problems
Difficulty installing motherboard
Ensure all copper pillars (standoffs) are correctly installed in the case before placing the motherboard.
Cable management issues
Use the provided wire Velcro straps to bundle and secure cables behind the motherboard tray.
Before use
- Verify all components are compatible with the case dimensions.
- Ensure you have a screwdriver for installation.
- Check the accessories package for all necessary screws and standoffs.
- Plan your cable routing before installing the motherboard.
Show more Show less
Specs in practice
- Copper Pillar
- Standoffs used to elevate the motherboard from the case chassis to prevent short circuits.
- I/O Interface
- The front panel connection block for power, reset, USB, and audio.
Images and diagrams
- The manual provides a detailed wire interface diagram showing how to connect the front panel cables to the motherboard headers.
- Exploded views illustrate the mounting locations for fans, drives, and the power supply.
Model compatibility
- Supports top-mounted water cooling radiators.
- Supports multiple fan configurations (top, back, front, and PSU cover).
