VEVOR Flexible Solar Panel 100W/200W User Manual
A comprehensive guide for VEVOR flexible solar panels (100W and 200W). Includes safety instructions, wiring diagrams for charge controllers, technical specifications, and installation guidelines.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the installation and operation of VEVOR flexible solar panels, available in 100W and 200W models. The panels are designed for home energy storage charging. Users must purchase a compatible charge controller and battery separately to complete the system.
Safety warnings
- Do not continue to use the product if it has been subjected to heavy impact or crunching, as this may cause electric shock.
- Do not disassemble or modify the product.
- Do not place metal objects between the solar panel and a smartphone, as this may cause a fire.
- Ensure the solar panel and the device being charged can be disconnected immediately in case of an accident.
- Disconnect the adapter cable and the device being charged before cleaning the solar panel.
- Keep the product out of reach of children.
- Installation operations are prohibited during thunderstorms.
- Ensure positive and negative poles are connected correctly to prevent short circuits.
- Confirm the installation location is unobstructed and well-lit.
- Check that the support structure is stable and the circuit insulation is reliable.
Operation scenario
The solar panel must be connected to a charge controller, which then connects to a 12V battery and the output load. Note that the controller and battery accessories are not included with the panel and must be purchased by the consumer.
Important: Ensure your battery voltage is higher than 10.8 volts before connecting it to the charge controller. The safe charging voltage of the battery must be below 13.86 volts.
Product parameters
The panels are tested under standard conditions. Key specifications include:
- Rated Power: 100W or 200W (depending on model)
- Open-circuit Voltage: 20.43V (100W) / 28.60V (200W)
- Short circuit Current: 6.615A (100W) / 8.83A (200W)
- Operating Voltage: 17.02V (100W) / 23.83V (200W)
- Operating Current: 6.315A (100W) / 8.43A (200W)
- Protection Grade: IP67
- Operating Temperature: -20 to 65 degrees Celsius
Construction

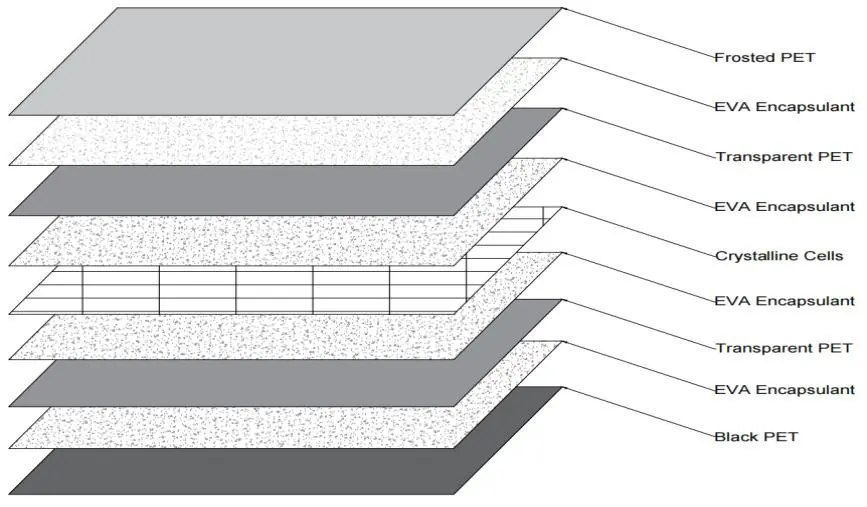

The panel consists of multiple layers, including Frosted PET, EVA Encapsulant, Transparent PET, Crystalline Cells, and Black PET.
Manufacturer information
VEVOR
Practical help
Common problems
Radio or television interference
Reorient or relocate the receiving antenna, increase the distance between the product and the receiver, or connect the product to an outlet on a different circuit.
Before use
- Ensure the installation location is unobstructed and well-lit.
- Check that the support structure is stable.
- Verify circuit insulation and connection reliability.
- Ensure positive and negative poles are connected correctly to prevent short circuits.
- Ensure battery voltage is above 10.8V before connecting to the charge controller.
Specs in practice
- Open-circuit Voltage
- The maximum voltage the solar panel can output when not connected to a load.
- Short circuit Current
- The maximum current the panel can produce when the terminals are shorted.
- Protection Grade IP67
- The device is dust-tight and protected against the effects of immersion in water.
Images and diagrams
- The wiring diagram illustrates the connection from the solar panel to a charge controller, which then connects to a 12V battery and the output load.
Model compatibility
- Requires an external charge controller and battery (not included).
- Compatible with 12V batteries.
- Battery voltage must be > 10.8V before connection.
- Safe charging voltage must be < 13.86V.
