User Manual for Vevor Portable Toilet Air pump20L

Quick guide

The Vevor Portable Toilet (Air pump20L) is designed for use in RVs, camping, marine environments, and medical care. It consists of a 12L fresh water tank and a 20L waste holding tank. Key operations include filling the fresh water tank, using the slide valve to open the waste tank, and using the pump to flush the bowl.

Safety Warnings

• Do not allow children to use the product alone; it is not a toy.
• Keep away from open flames.
• Do not use on inclined or uneven ground.
• Do not stand on the toilet or lean on the backrest.
• Always use the seat when sitting; sitting off-center or on the edge of the flush tank may cause damage or injury.
• Do not use if the unit is damaged or malfunctioning.

Specifications

• Fresh water tank: 12L (3.2 gal)
• Waste holding tank: 20L (5.3 gal)
• Weight Capacity: 150kg (330lbs)
• Material: PP, ABS, HDPE
• Dimensions: 435 x 355 x 430mm

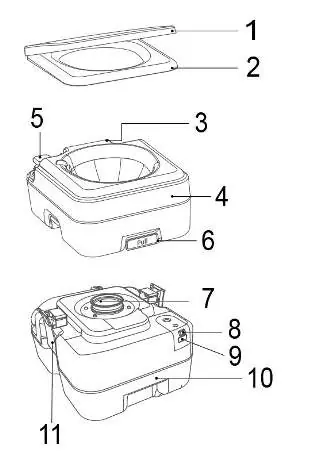

Structural Components

The unit consists of several key parts, including the toilet lid, seat, water fill cap, flush tank, toilet pump, pull rod, slide valve, exhaust valve, level indicator, waste tank, and detachable latches.

Assembly

1. Place the waste tank on a firm and level surface.
2. Mount the main body onto the waste tank's slide valve.
3. Secure the main body by fitting its latches into the corresponding slots of the waste tank.

Operation

1. Filling: Remove the water storage cap and fill with clean water. Do not exceed the Max. Water Level line. Replace the cap securely.
2. Using: Open the slide valve by pulling the rod at the back of the waste tank.
3. Flushing: Use the toilet, then rinse the bowl. For models with a flush button, press as needed. For models with a flush handle, pull up to flush and push down to stop.
4. Closing: Close the slide valve by pushing its rod back in.

Maintenance and Cleaning

Emptying the Waste Tank: Empty when waste accumulates to about 2 cm below the slide valve.

1. Close the slide valve completely.
2. Remove the latches and separate the main body.
3. Carry the waste tank to a designated safe disposal site.
4. Unscrew the outlet cap, pour out waste, rinse with clean water, and dispose of the rinse water in the same facility.
5. Replace the cap and reassemble.

Cleaning: Clean external surfaces with water and mild detergent. Do not use abrasive cleaners or caustic chemicals. Ensure the bowl is well attached before cleaning the interior with a toilet cleaner and brush.

Storage

To store, empty both the waste tank and water storage tank completely. Clean all surfaces and store in a well-ventilated place away from direct sunlight and rain.
