User Manual for Vevor 20W Solar Charger

Quick guide from the manual

The Vevor 20W Solar Charger is designed for solar photovoltaic power generation systems. It converts light energy into electrical energy for use in households, street lighting, and small-scale energy storage. Before installation, ensure the location is unobstructed and well-lit, and verify that the support structure is stable and capable of bearing the load.

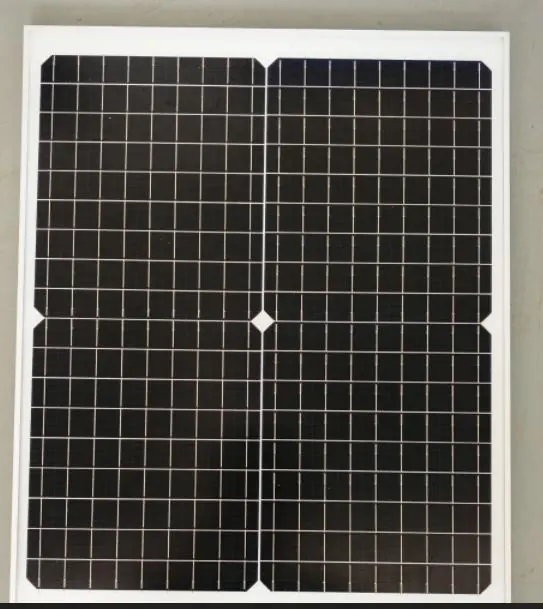

Product Overview

The device features high photoelectric conversion efficiency, high transmittance tempered glass, and a sealed, waterproof design (IP67) suitable for harsh weather conditions. It is designed for a long life cycle with low maintenance costs.

Technical Parameters

• Peak power (Pmax): 20W
• Working voltage (Vmpp): 15V (automatically adjusts when paired with an MPPT controller)
• Working current (Impp): 1.30A
• Battery cell type: Single crystal silicon
• Protection grade: IP67 (Dust-proof and water-proof)
• Temperature range: -40°C to +85°C

Installation Guide

Preparations:

• Confirm the installation location is unobstructed and well-lit.
• Check that the support structure is stable and meets load-bearing requirements.
• Prepare necessary installation tools (not included).

Installation Steps:

1. Fix the adjusting iron part onto the support plate.
2. Fix the solar panels onto the support plate with screws and tighten them.
3. Install the entire adjustable iron part onto the fixed plate.
4. Connect the positive and negative poles of the connector to the energy storage or device.
5. Check the insulation of the circuit and the reliability of the connection.

Precautions

• Avoid scratches or impacts on the component surface during installation.
• Ensure the positive and negative poles are connected correctly to prevent short circuits.
• The tools required for installation must be purchased by the customer.
