User Manual for VEVOR 208B Tool Sanitizer
Quick guide for the VEVOR 208B Tool Sanitizer. Learn how to operate, maintain, and troubleshoot your UV sterilization cabinet safely.
Quick answers from the manual
Quick answer
- The VEVOR 208B is a UV tool sanitizer. To operate, load dry items, close the door, set the timer (5-60 min), and press the light buttons. p. 5, 7
Key actions
- Run an empty load cycle for 20 minutes before first use. p. 5
First start
- Run an empty load cycle for 20 minutes to eliminate odors. p. 5
Show 4 more answers Show less
Problems and fixes
Device is not powered on
Ensure the power cord is plugged in.
p. 8
Device is not functioning
Adjust the time adjustment knob.
p. 8Maintenance and reset
- Unplug before cleaning. Use a cloth with neutral detergent. Do not immerse in water. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max. Power | 12W | Maximum power consumption | p. 6 |
Where to find it in the PDF
- Safety Instructions p. 5
- Operation Method p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The VEVOR 208B is a UV tool sanitizer designed for disinfecting utensils. Before first use, it is mandatory to run an empty load cycle for 20 minutes to eliminate any manufacturing odors. Always ensure items are dry and placed vertically in the basket for optimal sterilization. The device features an adjustable timer (5-60 minutes) and requires the door to be closed properly to engage the safety micro-switch.

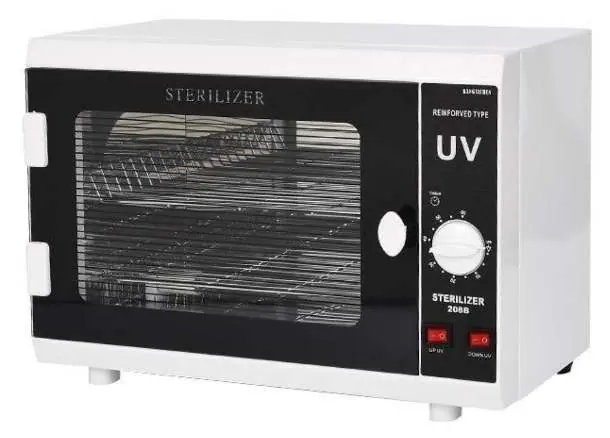

Device description
The unit consists of a main cabinet with a tempered glass door. Key components include:
- Handle: For opening the door.
- UV lamp: The sterilization source.
- Time adjustment knob: Sets the disinfection duration (5-60 min).
- Steel basket: Holds the items to be sanitized.
- Light buttons: Upper and lower buttons to activate the UV lamps.
Operation method
- Clean and dry the articles to be disinfected.
- Place the items into the steel basket inside the cabinet. Do not stack items; place them vertically.
- Close the cabinet door securely. The door must be in contact with the micro-switch for the lamp to function.
- Insert the power supply.
- Twist the time adjustment knob to select the desired disinfection time (5-60 minutes).
- Press the upper and lower light buttons. The indicator light will turn on, and the UV lamp will activate.
- The lamp will turn off automatically when the timer expires.
Safety instructions
- UV Warning: Do not expose eyes or skin to UV light.
- Cooling: Wait 10 minutes after the cycle completes before opening the door to avoid burns or affecting the sterilization effect.
- Environment: Do not install near flammable materials or in areas prone to moisture/water splashes.
- Usage: Keep away from children.
- Abnormalities: If you notice unusual noise, smoke, or odors, unplug the device immediately and contact a repair center.
Maintenance
- Always unplug the power cord before cleaning or maintenance.
- Wear gloves when cleaning to prevent cuts from sharp edges inside the cabinet.
- Wipe stains regularly with a cloth and a small amount of neutral detergent.
- Prohibition: Do not immerse the machine in water or rinse it directly with water.
Troubleshooting
If the device is not powered on, ensure the power cord is securely plugged in. If the device is not functioning, verify that the time adjustment knob has been set to a specific time.
Technical specifications
- Model: 208B
- Input: AC 110V 60Hz (US) or AC 220-240V 50Hz (EU/AU)
- Max. Power: 12W
- Time setting: 5-60 minutes
- Size: 397 x 272 x 305 mm
Manufacturer information
VEVOR
Practical help
Common problems
Device is not powered on
Ensure the power cord is plugged into the power source.
Device is not functioning
Check that the time adjustment knob is set to a time value.
Before use
- Run an empty load cycle for 20 minutes to remove odors.
- Ensure all utensils are dry before placing them inside.
- Place utensils vertically, not stacked.
- Ensure the door is closed to engage the micro-switch.
- Unplug the device if it will not be used for a long time.
Show more Show less
Specs in practice
- Time setting
- Adjustable timer range from 5 to 60 minutes.

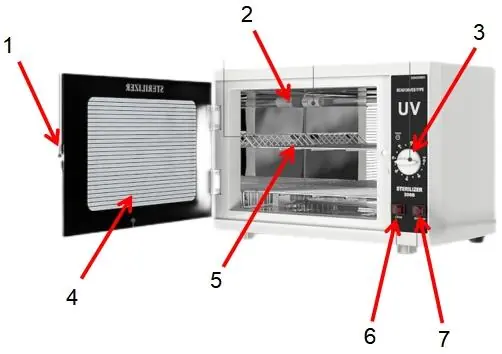

Images and diagrams
- 3. Time adjustment knob
- 4. Tempered glass door
- 5. Steel basket
- 6. Upper light button
- 7. Lower light button
Model compatibility
- Not for use by children.
- Do not use near heating appliances or flammable materials.
- Do not immerse in water.
