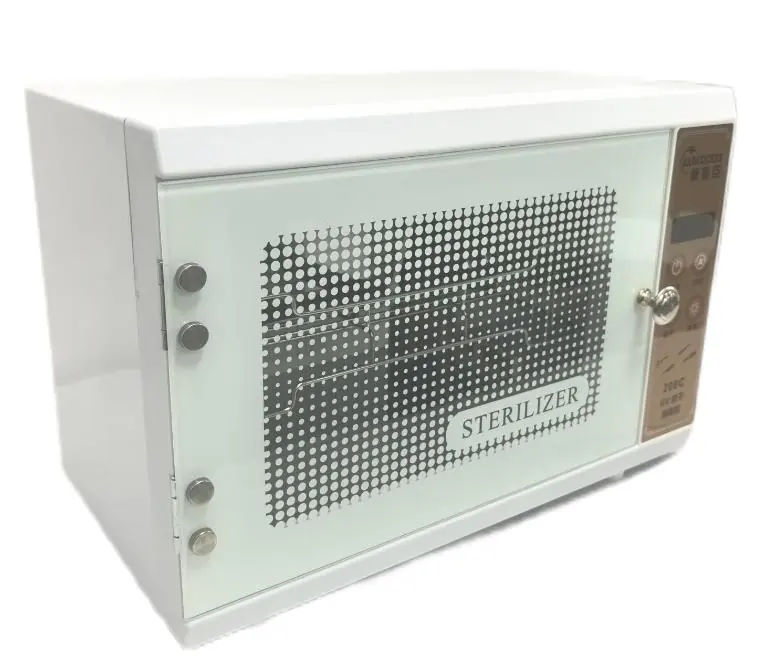

User Manual for VEVOR 208C Tool Sanitizer
Quick guide for the VEVOR 208C Tool Sanitizer. Learn how to operate the disinfection cabinet, understand the control panel, maintenance procedures, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The VEVOR 208C is a tool sanitizer. To operate, connect the power, press the power button, and select your desired cycle (Automatic, Drying, or Disinfection) using the control panel buttons. p. 5, 6
Key actions
- Run an empty cycle for 20 minutes before first use to eliminate odors. p. 3
- Unplug the device before cleaning and use a neutral detergent. p. 6
First start
- Connect power, press the power button, and select a cycle. p. 5
Show 4 more answers Show less
Problems and fixes
Device not powered on
Check power cord connection.
p. 7
Lamp does not light up
Reinstall the lamp tube.
p. 7Maintenance and reset
- Unplug before cleaning. Use neutral detergent. Do not immerse in water. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 160W | Maximum power consumption | p. 4 |
Where to find it in the PDF
- Safety Instructions p. 3
- Structure Diagram p. 4
- Operation Method p. 5, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The VEVOR 208C Tool Sanitizer is designed for disinfecting tools. Before first use, it is mandatory to run an empty load cycle for 20 minutes and then open the door to eliminate any initial odors. Always ensure utensils are drained of water and placed vertically in the basket to ensure effective sterilization. Warning: Do not expose eyes or skin to UV light. Do not immerse the machine in water or rinse it directly.

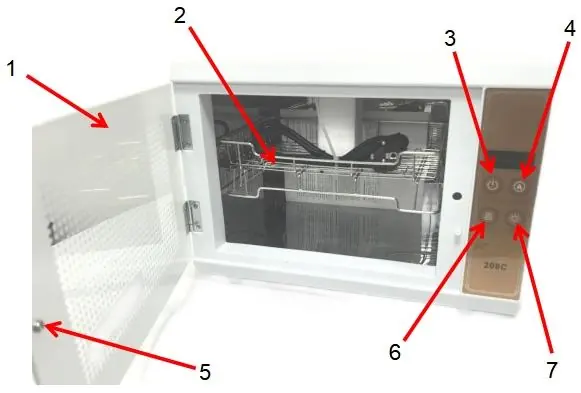

Structure diagram
The device consists of the following components:
- 1. Tempered glass door
- 2. Steel basket
- 3. Power button
- 4. Automatic button
- 5. Handle
- 6. Drying button
- 7. Disinfection button
Operation method
To operate the device, connect the power and press the power button; the display will light up. The device offers three main modes:
- Automatic button: Press once for a cycle of 60 minutes drying and 15 minutes disinfection. Press twice for 90 minutes drying and 30 minutes disinfection. Press three times for 30 minutes drying and 10 minutes disinfection. Holding the button for 3 seconds activates a 24-hour sterile storage function.
- Drying button: Press once for 45 minutes, twice for 60 minutes, or three times for 90 minutes of drying. Holding for 3 seconds activates a 12-hour heat preservation function.
- Disinfection button: Press once for 10 minutes, twice for 20 minutes, or three times for 30 minutes of disinfection.
Maintenance
Regular maintenance ensures the longevity of the device:
- Always unplug the power cord before cleaning or maintenance.
- Wear gloves when cleaning to prevent cuts from sharp edges inside the cabinet.
- Use a cloth with a small amount of neutral detergent to remove stains, then wipe with a clean damp cloth.
- Do not immerse electrical components in water.
Troubleshooting
If the device is not powered on, ensure the power cord is properly plugged in. If the lamp does not light up, check if the lamp tube is loose and reinstall it if necessary. If any other abnormality occurs, stop using the device immediately and contact a professional.
Technical specifications
- Model: 208C
- Input: AC 110V 60Hz (US), AC 220-240V 50Hz (EU & AU)
- Max. Power: 160W
- Working Temperature: 60°C (±10°C)
- Size: 368 x 230 x 260 mm
Manufacturer information
VEVOR
Practical help
Common problems
The device is not powered on
Ensure the power cord is plugged into the power source.
The lamp does not light up
The lamp tube may be loose; try reinstalling it.
Before use
- Run an empty load cycle for 20 minutes before first use.
- Drain all water from utensils before placing them in the sterilizer.
- Place utensils vertically; do not stack them.
- Ensure the device is not installed near flammable materials.
- Ensure the device is not placed in areas prone to moisture or water splashes.
Show more Show less
Specs in practice
- Working Temperature
- 60°C with a tolerance of ±10°C.
Images and diagrams
- 1. Tempered glass door
- 2. Steel basket
- 3. Power button
- 4. Automatic button
- 6. Drying button
Model compatibility
- Special user groups (such as children) are prohibited from using this device.
- Do not use heating appliances near the sterilizer.
