User Manual for Vivitar MagnaCam 10x25B Digital Camera/Binocular

Quick guide from the manual

The Vivitar MagnaCam 10x25B is a hybrid device combining a 10x magnification binocular with a digital camera. This guide provides essential steps for operation, software installation, and maintenance.

Package Contents

The kit typically includes:

• Digital camera/binocular
• Carrying pouch and neck strap
• Two AAA batteries
• Cleaning cloth
• CD ROM with application software
• USB cable
• Lens hood
• Instruction Manual and Warranty card

Binocular Operation

Adjusting Pupil Distance: Hold the barrels in each hand and pull them together or apart until you see a single circular field with both eyes.

Focusing:

1. Close your right eye and look through the binocular at an object. Rotate the Center Focus Knob until the object is sharp for your left eye.
2. Close your left eye and look through the binocular at the same object with your right eye. Rotate the Diopter ring until the object is sharp.

Rubber Eyecups: If you wear eyeglasses, fold down the rubber eyecups and place your glasses directly against the eyepieces.

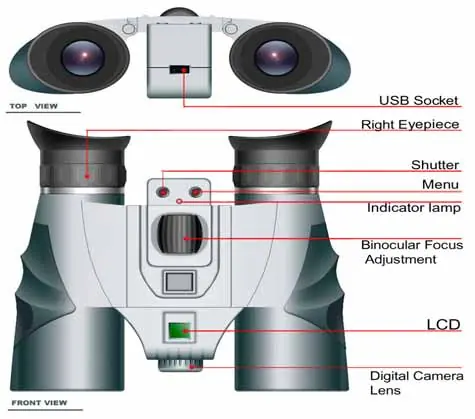

Digital Camera Operation

The camera features an LCD display on top of the binocular frame. Press and hold the Menu button for one second to power on.

Modes and Functions: Press the Menu button repeatedly to scroll through options. Use the Shutter button to perform actions:

• Still Image Mode: Capture individual frames. Images are stored in JPG format.
• Self-Timer: Invokes a 10-second delay.
• Movie Capture: Press and hold Shutter to record (up to 30 seconds). Movies are stored in AVI format (silent).
• Clear All Images: Delete images from memory.
• Resolution/Compression: Toggle between High/Low resolution and compression rates.
• Frequency: Toggle between 50Hz and 60Hz based on local lighting.

Software Installation

Important: Install the TWAIN driver from the included CD before connecting the camera to your PC via USB.

1. Insert the CD into your computer.
2. If it does not run automatically, open My Computer, locate the CD-ROM icon, and run MagnaCamsetup.exe.
3. Follow the on-screen instructions and restart your computer if prompted.

Maintenance and Warnings

• Battery Safety: Do not remove batteries while the camera is ON. The device uses SDRAM; if power is removed for more than 30 seconds, stored images will be erased. Download images to your PC before changing batteries.
• Cleaning: Use a mild detergent and a soft damp cloth.
• Environment: Keep away from high temperatures, dust, and direct steam. Do not submerge in liquid.
• Warning: Handling the USB cable may expose you to lead. Wash hands after handling.
