Parts List for Vollrath 13-inch Heavy Duty Electric Deli Slicer

Quick Guide to Parts and Assembly

This document provides a detailed parts list and exploded view diagrams for the Vollrath 13-inch Heavy Duty Electric Deli Slicer. It is intended for identifying components for maintenance, repair, and ordering replacement parts. Always ensure the slicer is disconnected from the power source before performing any maintenance or disassembly.

Using the Parts List

The parts list is organized by item number, part number, description, and quantity. To identify a specific component:

• Locate the part on the exploded view diagrams provided on pages 2 through 5.
• Identify the corresponding item number associated with the part.
• Find the item number in the table on page 1 to retrieve the official part number and description for ordering.

Exploded View Diagrams

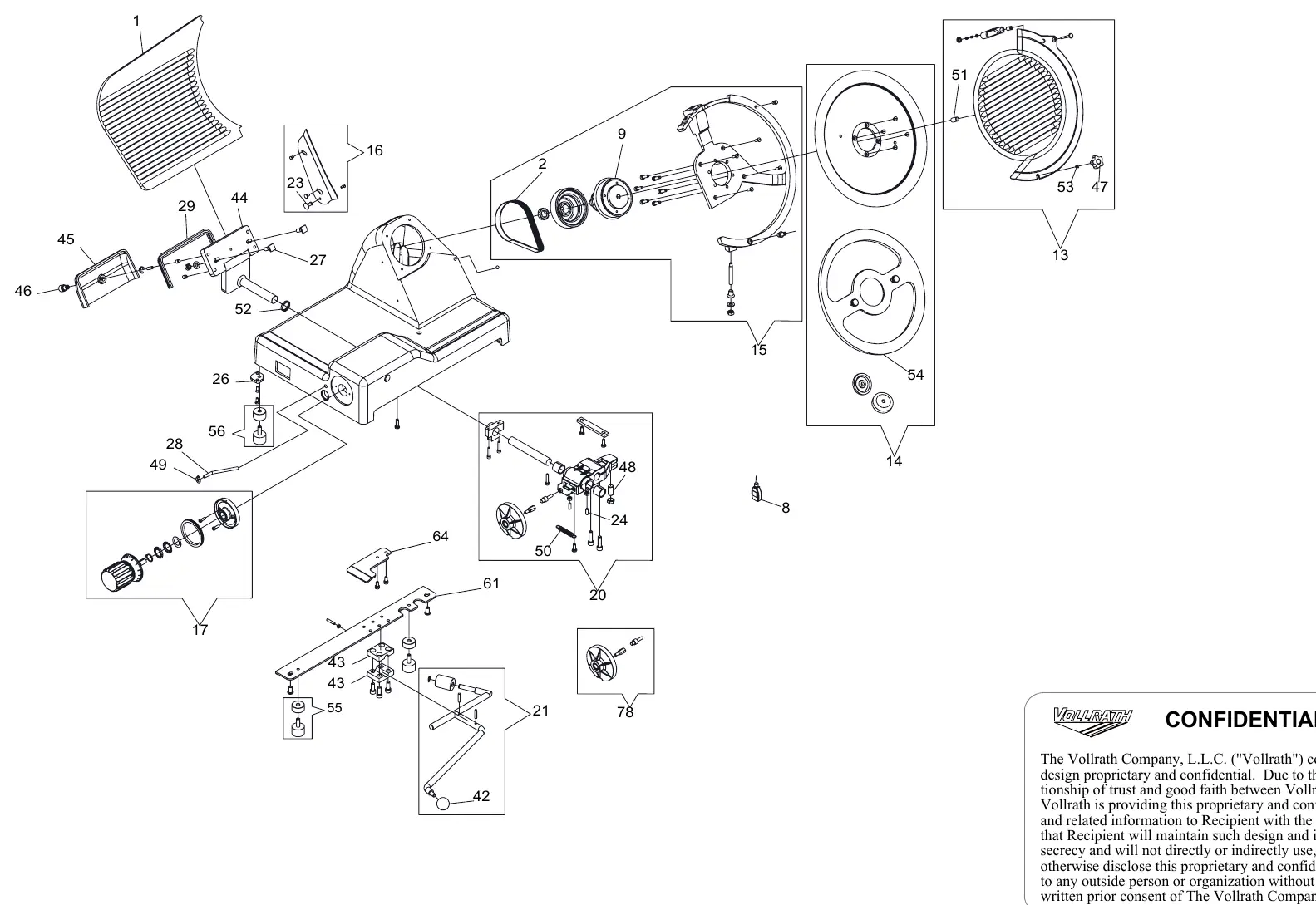

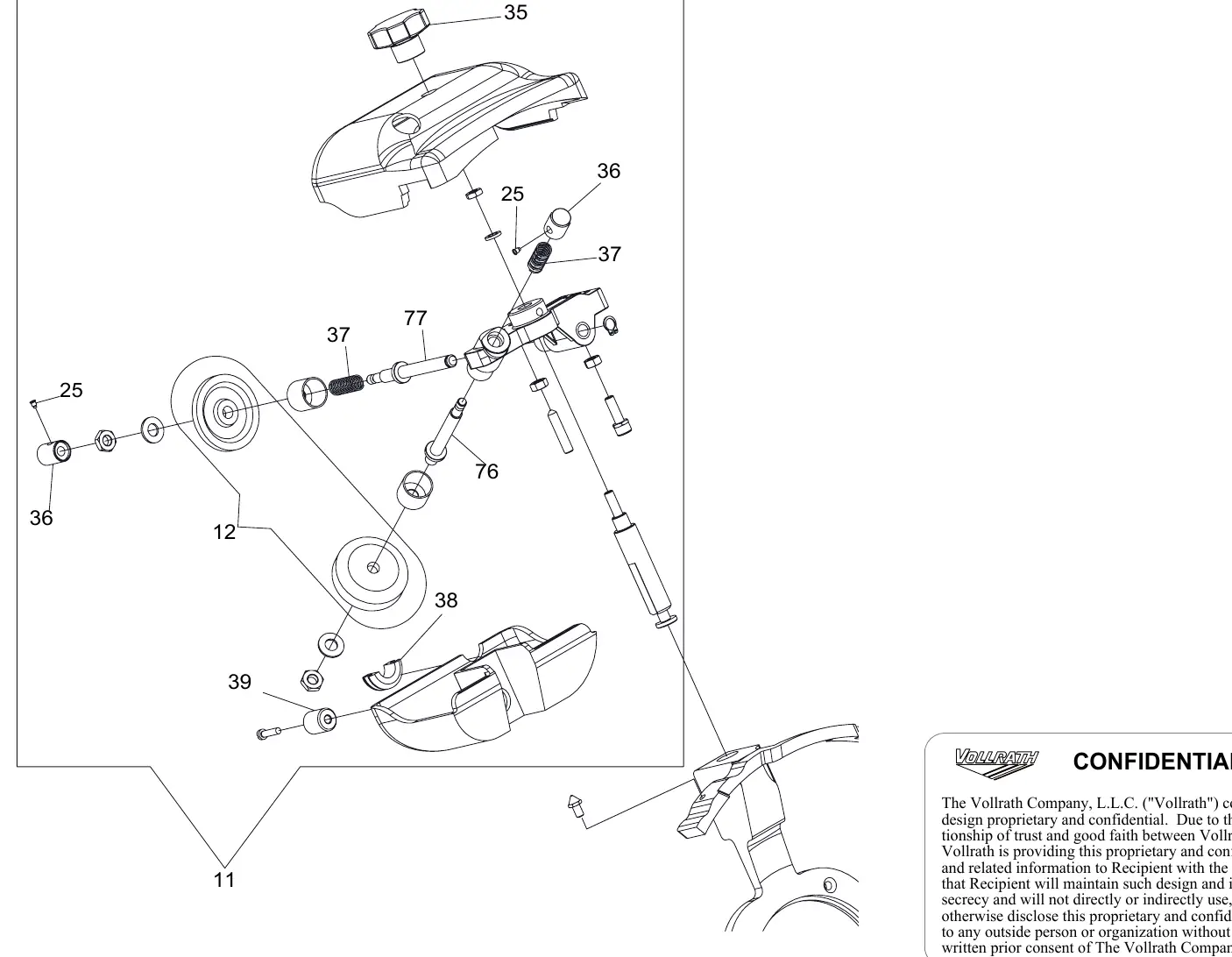

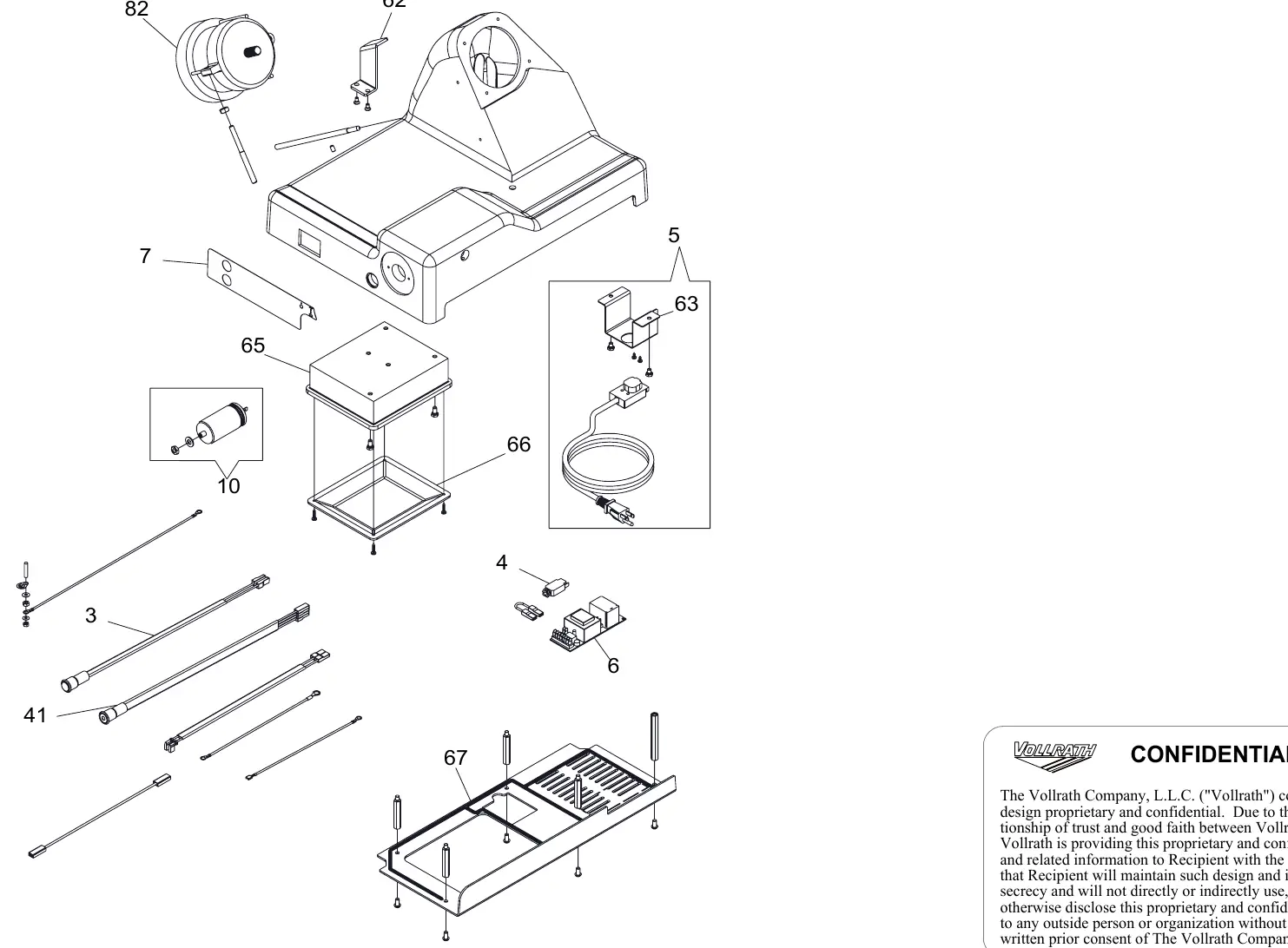

The diagrams illustrate the assembly of the slicer, including the carriage, blade, sharpener, and motor components. Use these diagrams to understand the relationship between parts during disassembly or reassembly. The diagrams are broken down by sub-assembly to assist in identifying specific hardware and components.

Maintenance and Component Identification

Always refer to the specific part number when ordering replacements to ensure compatibility. If you are unsure about a specific component, compare the visual representation in the diagrams with the physical part on your unit. Do not attempt to modify or replace internal electrical components unless you are a qualified technician.
