Wampler Pantheon Deluxe Dual Overdrive Pedal User Guide

Quick guide from the manual

The Wampler Pantheon Deluxe is a dual overdrive pedal featuring two independent circuits. To ensure proper operation, use a 9-18V DC Center Negative power supply with a minimum of 55mA. If you are using an external power supply, it is recommended to disconnect any internal 9V battery. If the LEDs flicker when a footswitch is pressed, the power supply may be insufficient.

For connections, use the jacks marked with solid triangles if using a single input/output setup. If you are using both sets of jacks for independent channel routing or stereo, use the outline triangles for the separate output of Channel 1 and input of Channel 2.

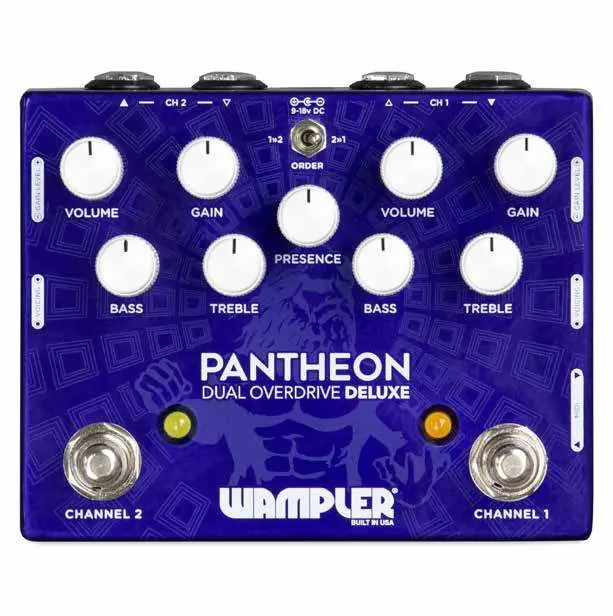

Device Overview

The pedal contains two distinct overdrive circuits:

• Channel 1: Classic "Blues Breaker" style voicing.
• Channel 2: Original Pantheon "Boutique" style voicing.

You can easily swap the stacking order of these channels using the front-mounted Order switch without changing cables.

Controls and Settings

Each channel features independent controls to shape your tone:

• Gain: Increases the amount of gain applied to the signal path.
• Volume: Controls the total output volume of the channel.
• Bass: Baxandall-style active control. Neutral at noon, with a powerful sweep.
• Treble: Adjusts high-end frequencies.
• Gain Level (Side Switch): Three-way switch for maximum (top), medium (middle), and lower (bottom) gain.
• Voicing (Side Switch): Three-way switch for hard clipping (top), blended clipping (middle), and soft clipping (bottom).
• Presence: A global control that adds top-end chime to both channels simultaneously.

MIDI Configuration

The pedal supports MIDI via 3.5mm TRS connections. You can use CC messages to toggle channels and PC messages to load presets.

• MIDI Connections: Use the MIDI In port for incoming signals and MIDI Out for daisy-chaining.
• Setting MIDI Channel: Power off the device, hold the Left Footswitch (Channel 2), and power on. Send a CC32 message with a value of 0-15 (for channels 1-16) or 16 (for omni mode).
• Factory Reset: Hold down both footswitches during power-up to reset the MIDI channel to omni mode and clear presets.

Technical Specifications

• Power Draw: 55mA.
• Power Supply: 9-18V DC Center Negative only. Do not exceed 18V DC.
• MIDI: 3.5mm TRS input/output.

Warranty and Support

Wampler offers a 5-year warranty to the original purchaser covering defects in material and workmanship. For support, contact the team via email at [email protected] or call (765) 352-8626. Register your pedal online at wamplerpedals.com/warranty-registration.
