Installation Manual for Wayfair 2072-LP Stagner 5 Light Kitchen Island Linear Pendant

Important Information

Before starting, ensure all installation work is performed by an accredited professional. Always shut off the power supply at the fuse or circuit breaker before beginning. Use only the specified bulbs and do not exceed the maximum wattage.

Lighting Placement Guide

For optimal lighting, follow these height recommendations:

• Kitchen Island: Center the linear pendant over the island. Fixtures should hang at least 30 inches above the countertop. Use one pendant for every 24 inches of island length.
• Dining Room Table: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the width of the table.
• Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor. Ensure clearance for any opening doors.

Preparation for Installation

Carefully remove the fixture from the carton and locate the yellow bag containing all parts. Ensure the old fixture and mounting strap are removed from the wall. The cage (O) and fixture body (Q) come pre-assembled.

1. Attach the mounting strap (A) to the junction box using mounting screws (B).
2. Ensure the nipple (F) is attached to the mounting strap (A) with the washer and hex nut (C and D).

Assembling the Fixture

Determine the correct length of rods needed for the desired hanging height. The fixture includes three 12-inch rods (M) and one 6-inch rod (L) for each side.

• To lengthen the fixture, add additional rods.
• To shorten, remove undesired rods and trim wires, leaving at least 8 to 10 inches of wire.
• You must use at least one 12-inch rod (M) on each side.
• Thread wires through the rods, then attach rods to the posts (N) and swivel joints (I).
• Secure the swivel joints (I) to the canopy (G) using hex nuts and washers.

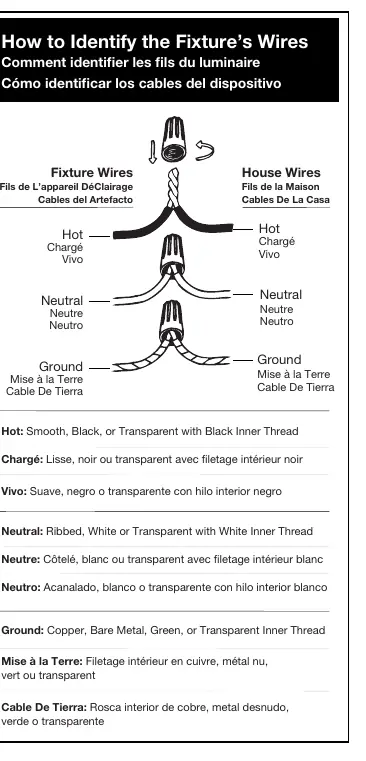

Connecting the Wires

Have an assistant support the fixture's weight during this step.

• Hot: Connect to Hot (transparent wire with black inner thread, black, or smooth wire).
• Neutral: Connect to Neutral (transparent wire with white inner thread, white, or ribbed wire).
• Ground: Connect to Ground (transparent wire with green inner thread, green wire, or copper).

Twist wire pairs together and secure with a wire connector. If no house ground wire exists, wrap the fixture's ground wire around the ground screw (E) on the mounting bracket.

Finishing the Installation

Push the canopy (G) up to the ceiling and thread the decorative nut (H) onto the nipple (F). Install the appropriate light bulbs and test the fixture.
