Installation Guide for Wayfair 2073-SF Smyth 3-Light Semi-Flush Fixture

Quick Guide from the Manual

This fixture is designed to be installed either as a Flush Mount or a Pendant. Before beginning, ensure the power is shut off at the circuit breaker. All installation work should be performed by an accredited professional. Ensure you have all parts from the yellow bag before starting.

Preparation

• Shut off power supply at the fuse or circuit breaker.
• Remove the old fixture and mounting strap from the wall or ceiling.
• Identify your installation type (Flush or Pendant) and follow the corresponding steps.

Flush Mount Installation

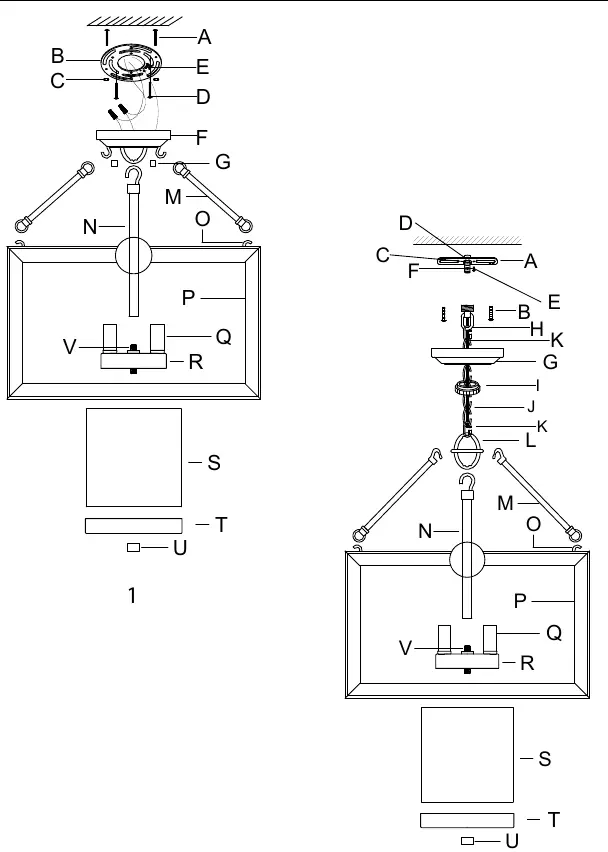

1. Review the flush mount diagram. Attach the round mounting strap (B) to the junction box using mounting screws (D).
2. Ensure mounting screws (A) are vertical and aligned with the canopy (F) holes.
3. Assemble the socket cluster (R) by passing wires through rod (N) and twisting it into the post (V). Attach side rods (M) to the hooks (O) on the fixture body.
4. Have an assistant hold the canopy while you attach the side rods (N) to the canopy hooks (F).
5. Connect wires as described in the wiring section.
6. Raise the canopy (F) to the ceiling and secure it with decorative nuts (G).

Pendant Installation

1. Review the pendant diagram. Attach the rectangular mounting strap (A) to the junction box using mounting screws (B).
2. Adjust the nipple (F) and canopy loop (H) to the desired height.
3. Assemble the socket cluster (R) and attach side rods (M) as described in the flush mount steps.
4. Measure and determine the correct number of chain links (J) needed. Use chain connectors (K) to attach the chain to the top loop (L) and canopy loop (H).
5. Feed wires through the chain and top loop (L).
6. Connect wires as described in the wiring section.
7. Raise the canopy (G) to the ceiling and secure it by tightening the canopy loop collar (I).

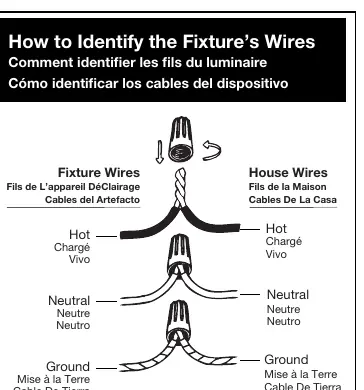

Wiring

Have an assistant support the fixture's weight during wiring.

• Hot: Connect to Hot (transparent wire with black inner thread, black, or smooth wire).
• Neutral: Connect to Neutral (transparent wire with white inner thread, white, or ribbed wire).
• Ground: Connect to Ground (transparent wire with green inner thread, green wire, or copper).
• If no house ground wire exists, wrap the fixture's ground wire around the ground screw (E) on the mounting bracket.
• Twist wire ends together and secure with a wire connector.

Finishing the Installation

1. Slide candle sleeves (Q) over the sockets.
2. Install light bulbs (not included) according to specifications.
3. Place the glass shade (S) onto the bottom cap (T).
4. Raise the shade and cap assembly beneath the bottom assembly (R) and secure by twisting the bottom finial (U).
5. Turn on the power and test the fixture.
