Installation Guide for Wayfair 2072-FM Stabler 2-Light Flush Mount

Step-by-step installation guide for the Wayfair 2072-FM Stabler 2-Light Flush Mount. Includes wiring diagrams, mounting instructions, and safety tips for proper setup.

Quick answers from the manual

Quick answer

  • This document provides installation instructions for the Wayfair 2072-FM Stabler 2-Light Flush Mount, including wiring connections and mounting procedures. p. 3

Key actions

  • Connect wires: Hot to Hot, Neutral to Neutral, Ground to Ground. p. 2, 3
  • Secure the canopy (F) to the ceiling using decorative nuts (H). p. 3

First start

  • Turn off power, mount the strap to the junction box, connect wires, secure the canopy, and install bulbs. p. 3

Where to find it in the PDF

  • Lighting Placement Guide p. 1
  • Wiring Diagram p. 2
  • Installation Instructions p. 3, 4
Table of contents

Manual images

Click an image to enlarge
Lighting placement guidelines Page 1 Wiring identification diagram Page 2 Assembly diagram showing mounting components Page 2

Quick guide from the manual

This document provides essential installation instructions for the Wayfair 2072-FM Stabler 2-Light Flush Mount. Before beginning, ensure the power supply is shut off at the fuse or circuit breaker. Installation should be performed by an accredited professional.

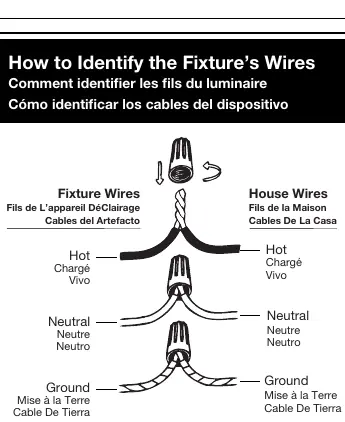

Wiring identification diagram
Wiring identification diagram

Lighting Placement Tips

The manual provides general guidelines for placing lighting fixtures:

Lighting placement guidelines
Lighting placement guidelines
  • Kitchen Island: Center linear pendants over the island. Use one pendant for every 24 inches of island length. Fixtures should hang at least 30 inches above the countertop.
  • Dining Room Table: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the width of the table.
  • Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor. Ensure there is clearance for any opening doors.

Installation Steps

  1. Preparation: Remove the fixture and parts bag from the carton. Shut off power at the circuit breaker and remove the old fixture and mounting strap.
  2. Mounting Strap: Take the mounting strap (B) and attach the two mounting screws (A). Tighten nuts (C) to hold the screws in place. Secure the mounting strap (B) to the junction box using mounting screws (D).
  3. Wiring: Have an assistant support the fixture's weight. Connect the fixture wires to the power supply wires from the junction box:
    • Hot: Connect to Hot (smooth, black, or transparent with black inner thread).
    • Neutral: Connect to Neutral (ribbed, white, or transparent with white inner thread).
    • Ground: Connect to Ground (copper, bare metal, green, or transparent with green inner thread).

    Twist the ends of the wire pairs together and secure with a wire connector. If there is no house ground wire, wrap the fixture's ground wire around the ground screw (E) on the mounting bracket.

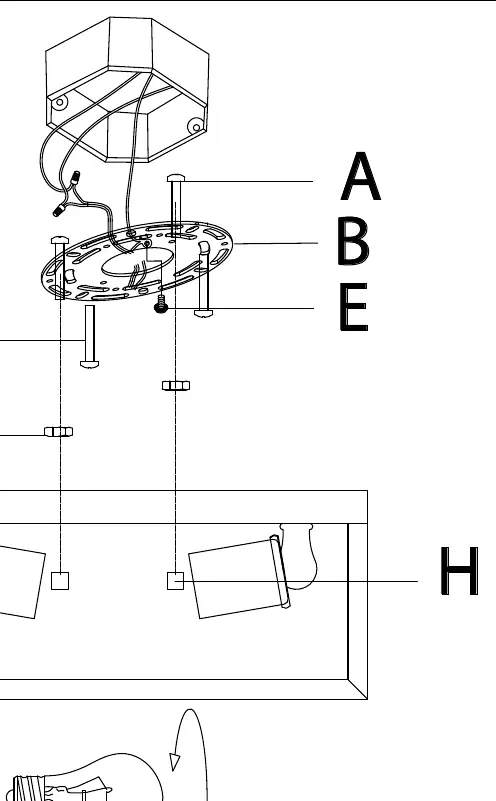

    Assembly diagram showing mounting components
    Assembly diagram showing mounting components
  4. Finishing: Raise the canopy (F) to the ceiling, ensuring mounting screws (A) protrude through the openings. Secure the canopy in place with decorative nuts (H). Install the specified light bulbs (not included).

Manufacturer information

Wayfair LLC

Brand profile
Manufacturer website https://www.wayfair.com Support https://www.wayfair.com/help

Practical help

Common problems

Fixture weight during wiring

Have an assistant support the fixture's weight while you complete the wiring connections.

No house ground wire available

Locate the ground screw (E) on the mounting bracket and wrap the fixture's ground wire around it, then tighten the screw.

Before use

  • Shut off power supply at fuse or circuit breaker
  • Ensure you have an assistant for installation
  • Verify you have the correct bulbs (do not exceed maximum wattage)
  • Check that mounting screws (A) are vertical and aligned with the canopy holes

Specs in practice

Neutral Wire
Ribbed, White, or Transparent with White Inner Thread

Images and diagrams

  • The wiring diagram illustrates how to connect the fixture wires to the house wires using wire connectors.
  • The assembly diagram shows the mounting strap (B), screws (A), canopy (F), and decorative nuts (H) configuration.

Model compatibility

  • Installation should be done by an accredited professional.
  • Use only specified bulbs; do not exceed maximum wattage.
