User Manual for WEN 20208 20V 8Ah Li-Ion Battery
Quick guide for the WEN 20208 20V 8Ah Li-Ion Battery. Includes charging instructions, safety warnings, maintenance tips, and troubleshooting advice.
Quick answers from the manual
Quick answer
- The WEN 20208 is a 20V 8Ah Li-Ion battery. It must be charged before first use using a compatible WEN 20V charger. Charge status can be checked via the LED indicators on the rear of the battery. p. 3, 9
Key actions
- Charge the battery p. 9
- Check battery status p. 9
First start
- Charge the battery completely before using it for the first time. p. 9
Problems and fixes
Battery is hot after use
Allow it to cool to room temperature before charging.
p. 9Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 20 Volts | Operating voltage | p. 3 |
| Capacity | 8Ah | Battery capacity | p. 3 |
Where to find it in the PDF
- Specifications p. 3
- Safety Rules p. 4, 5, 7, 8
- Operation p. 9
- Maintenance p. 10
Table of contents
Quick guide from the manual

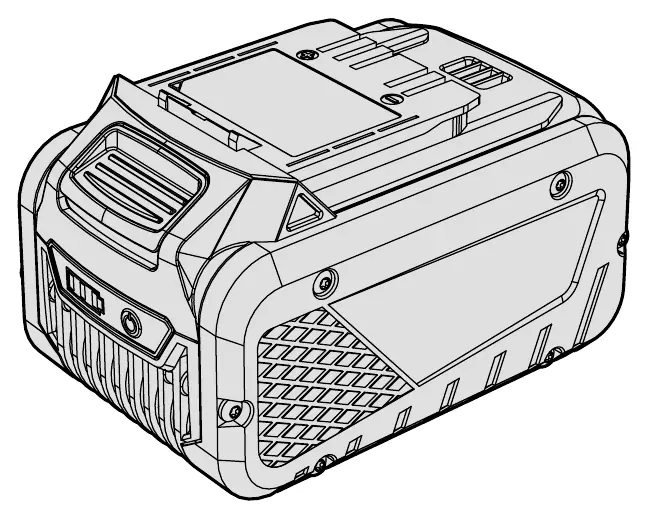

The WEN 20208 is a 20V 8Ah Lithium-Ion battery designed for use with WEN 20V cordless tools. Before using the battery for the first time, it must be fully charged. The battery features LED indicators on the rear to check the charge status.
Charging the battery
To charge the battery, use a compatible WEN 20V charger:
- Connect the charger to a 120V, 60Hz AC outlet. The green light will illuminate.
- Slide the battery into the charger until it clicks. The red light will illuminate, indicating charging is in progress.
- When the battery is fully charged, the red light turns off and the green light turns on.
- Remove the battery from the charger and unplug the charger from the power supply.
Note: The battery may become warm during charging; this is normal. If the battery is hot after continuous use, allow it to cool to room temperature before charging to prolong its life.
Battery status indicators
Press and hold the power button on the rear of the battery to check the charge status:
- Three Lights: Fully charged.
- Two Lights: Approximately 60% charged.
- One Light: Low power, needs to be charged.
Safety warnings
- Avoid dangerous environments: Do not charge in rain, snow, or damp locations.
- Temperature: The safe charging temperature range is -4°F to 113°F. Do not charge in freezing weather.
- Storage: Store in a cool, dry place. Do not store where temperatures exceed 104°F.
- Damage: Do not use the battery if it has been dropped, crushed, or damaged. Do not disassemble.
- Short circuit: Keep away from metal objects like paper clips, coins, keys, or nails, which can cause a short circuit and fire.
Maintenance
- Routine Inspection: Before each use, check for loose hardware, cracks, or damage. Do not use if damaged.
- Cleaning: Wipe surfaces with a damp cloth and mild soap. Do not allow water to enter the tool. Do not use solvents like gasoline or ammonia-based detergents.
- Disposal: Do not dispose of with household waste. Recycle at a local facility.
Practical help
Common problems
Battery not charging
Ensure the battery is fully inserted into the charger. Check that the charger is plugged into a 120V outlet. If the battery is hot after use, let it cool to room temperature first.
Battery life is short
Avoid exhaustive discharge. Charge the battery frequently. Replace the battery if capacity falls to 80% of its original capacity.
Before use
- Charge the battery completely before first use.
- Inspect the battery housing for cracks or damage.
- Ensure the charger is a compatible WEN 20V MAX model.
- Check that the work area is clean and well-lit.
- Verify the battery is cool before charging.
Images and diagrams
- The battery has a power button on the rear to activate the LED charge status lights.
- The charger uses a light system: Solid Green (Ready), Solid Red (Charging), Solid Green (Charged).
Model compatibility
- Compatible with all WEN 20V MAX chargers.
- Compatible with WEN 20V cordless tools.
