WEN 20V Max Brad Nailer and Crown Stapler 20539/20539BT User Manual
Comprehensive user guide for the WEN 20V Max Brad Nailer and Crown Stapler (models 20539, 20539BT). Includes setup, operation, maintenance, and safety instructions.
Quick answers from the manual
Quick answer
- The WEN 20V Max Brad Nailer and Crown Stapler (20539/20539BT) is a cordless tool for driving 18-gauge brad nails and T50 crown staples. It features adjustable depth control and a wiring guide for specific applications. p. 3, 9
Key actions
- Loading fasteners p. 11
- Adjusting depth p. 12
First start
- Charge the battery fully before first use. p. 10
Problems and fixes
Jammed fastener
Turn off tool, remove battery, open magazine, remove unused fasteners, use needle-nose pliers to clear jam.
p. 14Maintenance and reset
- Regular cleaning and inspection of the trigger and safety mechanism. p. 14
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Magazine Capacity | 88 nails / 95 staples | Maximum number of fasteners the magazine holds. | p. 3 |
| Firing Speed | 60 Pcs / Minute | Maximum rate of operation. | p. 3 |
Where to find it in the PDF
- Specifications p. 3
- Assembly & Adjustments p. 10, 11, 12
- Operation p. 13, 14
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the WEN 20V Max Brad Nailer and Crown Stapler. Before first use, ensure the battery is fully charged. Always wear eye and hearing protection during operation. The tool is designed for household use and is compatible with WEN 20V MAX batteries. Always remove the battery and fasteners when the tool is not in use, during maintenance, or when clearing jams.
Safety
Follow all safety warnings to prevent electric shock, fire, or serious injury. Keep the work area clean and well-lit. Do not operate the tool in explosive atmospheres. Keep children and bystanders away. Always inspect the tool before use for damaged parts. Do not force the tool; use it only for its intended purpose. Keep face and body parts away from the back of the tool cap during operation.
Assembly and Adjustments

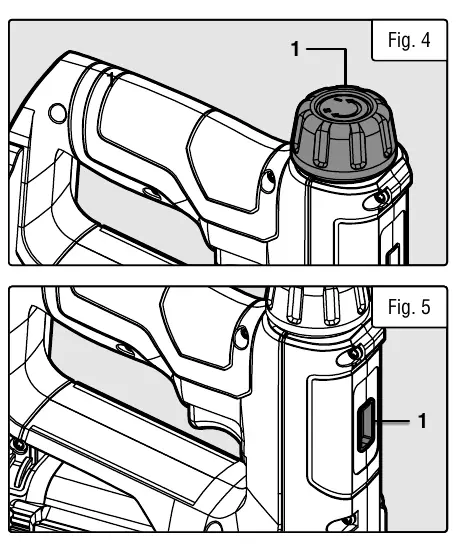

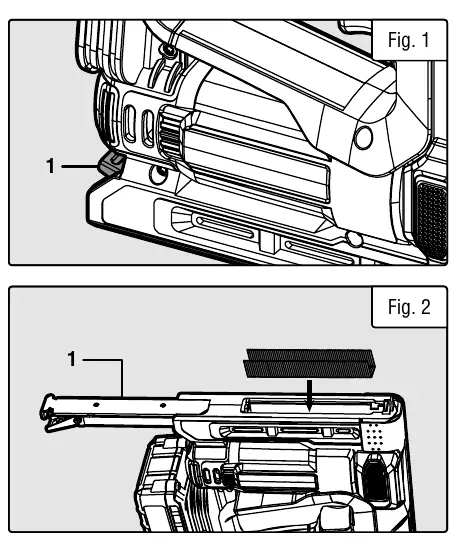

Charging the Battery: Connect the charger to a 120V, 60Hz outlet. Slide the battery into the charger port. Solid red indicates charging; solid green indicates fully charged. Loading Fasteners: Unlock the magazine latch and pull back the cover. Insert staples or nails into the opening behind the nose. Ensure nails are placed on the side marked "LOAD SIDE". Push the magazine back until it clicks. Depth Adjustment: Rotate the depth adjustment knob clockwise to increase drive force and depth, or counterclockwise to decrease it.
Operation

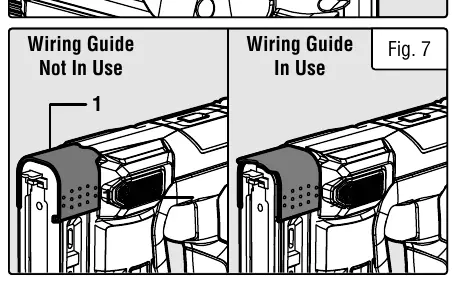

Firing Fasteners: Ensure the magazine is locked. Attach the battery. Test the driving depth on scrap wood. Hold the nailer upright on the workpiece, press down, and pull the power trigger. Wiring Guide: The tool includes a wiring guide for attaching wire to wooden frames. Install the guide with the notched edge pointing downward. Align the wire in the notch and pull the trigger.
Maintenance
Cleaning: Wipe the tool with a damp towel and mild soap. Use compressed air to blow out debris. Do not soak the tool. Inspection: Regularly check the trigger and safety mechanism for proper function. Keep all screws tight. Storage: Store in a dark, dry, frost-free, and well-ventilated place, ideally between 50 to 86 degrees Fahrenheit (10 to 30 degrees Celsius).
Troubleshooting
If the tool jams, turn it off and remove the battery. Open the magazine, remove unused fasteners, and use needle-nose pliers to clear the jammed fastener.
Practical help
Common problems
Tool is jammed
Turn off the tool, remove the battery, open the magazine, remove unused fasteners, and use needle-nose pliers to clear the jam.
Fasteners penetrate too deeply or shallowly
Adjust the depth using the depth adjustment knob. Rotate clockwise to increase force/depth, counterclockwise to decrease.
Before use
- Charge the battery fully before first use.
- Inspect the tool for any damaged or missing parts.
- Ensure the magazine is securely locked.
- Wear proper eye and hearing protection.
- Test drive depth on a scrap piece of wood.
Specs in practice
- Magazine Capacity
- 88 nails or 95 staples.
- Firing Speed
- 60 pieces per minute.
Images and diagrams

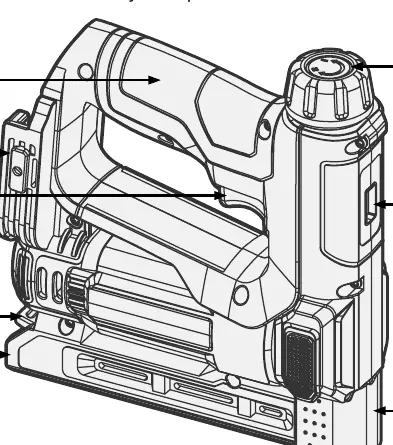

- The tool diagram identifies the handle, battery port, power trigger, magazine latch, magazine, depth adjustment knob, depth indicator, and wiring guide.

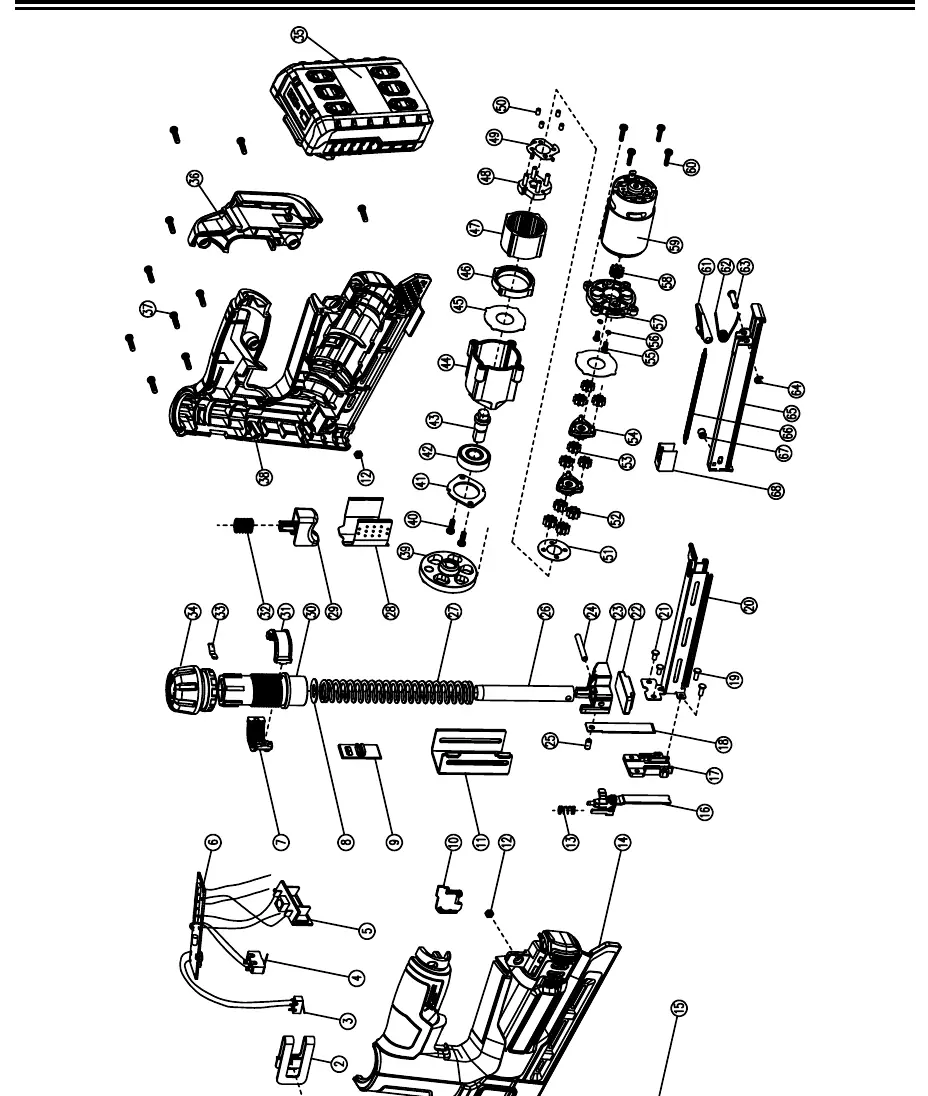

- The exploded view illustrates the internal assembly, including the motor, gears, flywheel, and magazine components.
Model compatibility
- Compatible with all WEN 20V MAX batteries.
- Some tools may not be compatible with WEN 20V MAX 1.5Ah Batteries (model 49120B).
