WEN 20121 20V Brushless Hammer Drill User Manual
Comprehensive user manual for the WEN 20121 20V Brushless Hammer Drill. Includes safety instructions, operation guidelines, maintenance tips, and parts list.
Quick answers from the manual
Quick answer
- The WEN 20121 is a 20V brushless hammer drill featuring a 1/2-inch keyless chuck, 20 torque settings, and two speed ranges. It is designed for drilling into wood, metal, and masonry. p. 3, 11
Key actions
- Installing bits: Set rotation switch to OFF, open chuck counterclockwise, insert bit, tighten clockwise. p. 13
- Changing speed: Use the gear switch on top to select position 1 (low) or 2 (high). p. 12
First start
- Charge the battery fully before first use. Inspect the tool for any damage. Ensure the direction switch is in the desired position. p. 9, 12
Problems and fixes
Drill stalls
The clutch does not activate in Hammer or Drill modes; be prepared for kickback.
p. 13Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Torque | 50 Nm | Maximum torque output | p. 3 |
| Chuck | 1/2 in. (13mm) | Keyless chuck size | p. 3 |
Where to find it in the PDF
- Product Overview p. 11
- Operation p. 12, 13
- Parts List p. 15, 16
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The WEN 20121 is a 20V brushless hammer drill designed for driving fasteners and drilling into wood, metal, and masonry. Before using the tool, ensure the battery is fully charged and the tool is inspected for any damage. For technical support, contact WEN at 1-847-429-9263 or email [email protected].
Product Overview

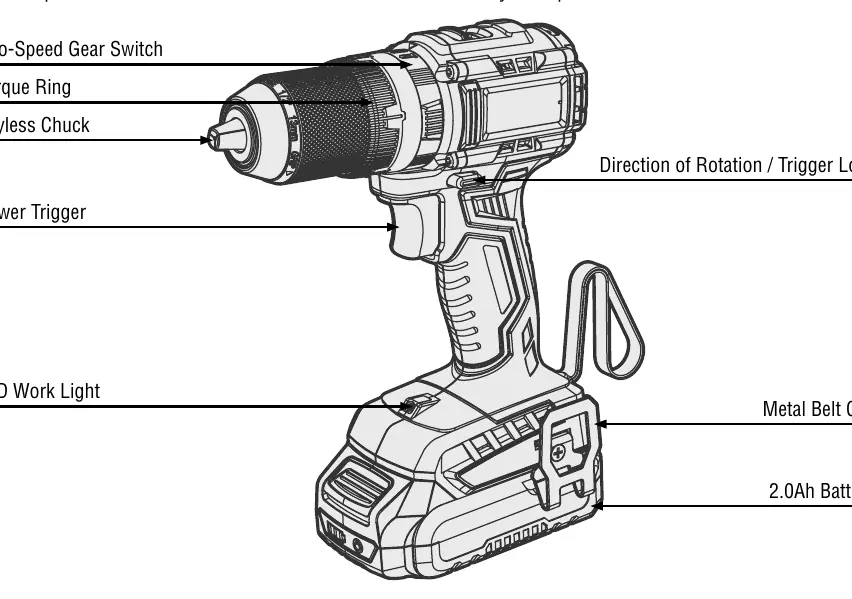

The drill features a 1/2-inch keyless chuck, a two-speed gear switch, a torque ring for adjusting settings, a power trigger with variable speed, and an LED work light. The direction of rotation switch also acts as a trigger lock.
Operation

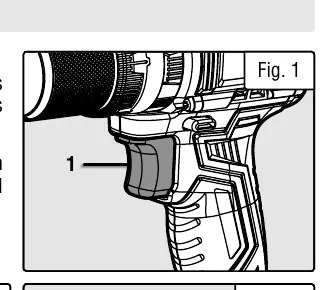

Power Trigger: The trigger is pressure-sensitive; pushing it farther increases speed and torque. Use the direction of rotation switch to select forward, reverse, or the middle (OFF) position.
Two-Speed Gear Switch: Slide the switch to position 1 for low speed (high torque) or position 2 for high speed (fast drilling).

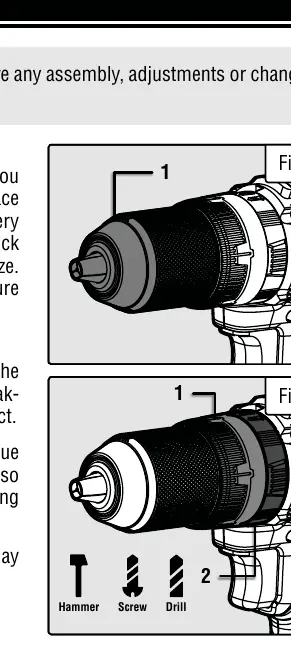

Chuck and Torque Settings: To install bits, set the rotation switch to OFF, open the chuck by rotating counterclockwise, insert the bit, and tighten clockwise. Use the torque ring to adjust settings (1-20) or select between drilling, screwing, and hammering modes. Note that the clutch does not activate in Hammer or Drill modes.
Maintenance
Routine Inspection: Before each use, check for loose hardware, misalignment, damaged wiring, or cracked parts. Wipe the tool with a soft cloth after use. Keep ventilation openings free of dust and debris to prevent motor overheating. Store in a clean, dry place away from children.
Parts List

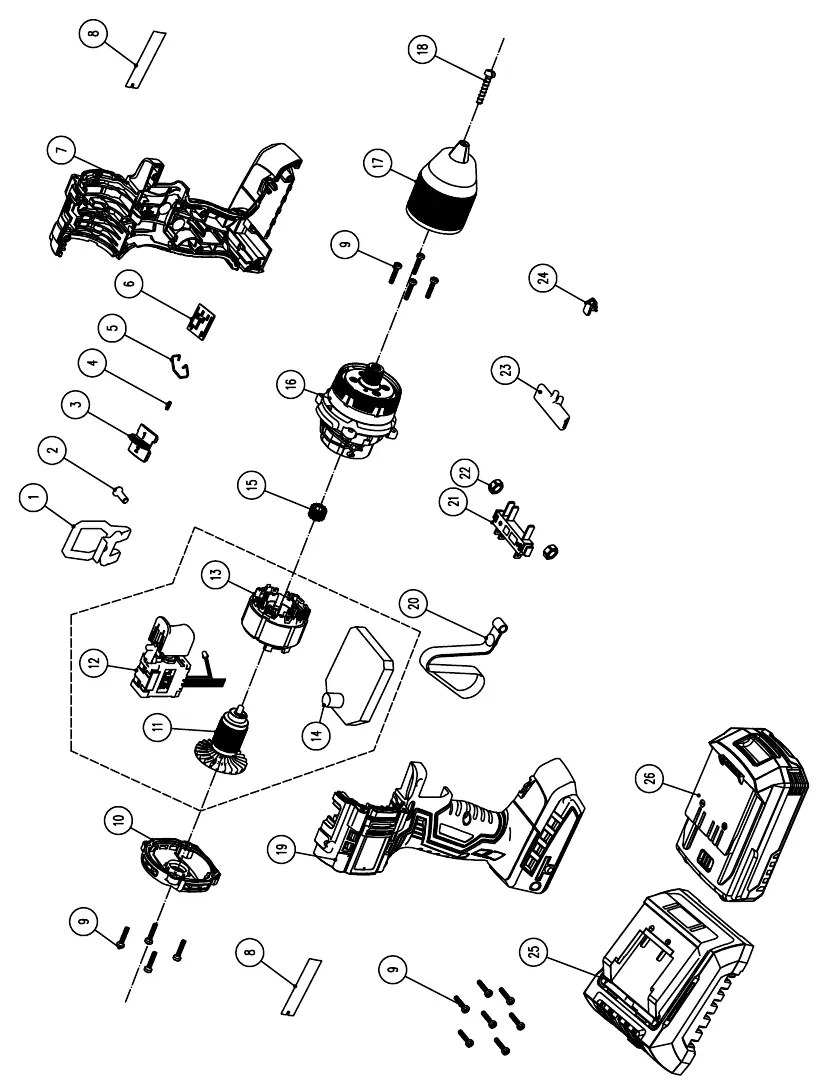

The manual includes an exploded view and a detailed parts list (pages 15-16) for identifying components such as the belt clip, speed selector, rotor, stator, and housing parts. Note that not all parts may be available for purchase.
Warranty
WEN provides a limited warranty for home use, covering defects in material or workmanship for two years from the date of purchase. Proof of purchase is required for claims.
Practical help
Common problems
Drill stalls or kicks back
The clutch does not activate in Hammer or Drill modes. Be prepared for potential kickback when the bit binds.
Battery not charging
Ensure the battery is within the safe charging temperature range (41°F to 104°F). Do not charge in freezing weather.
Drill bit slips
Ensure the keyless chuck is tightened securely by rotating the sleeve clockwise.
Before use
- Inspect the tool for any damage or missing parts.
- Ensure the battery pack is fully charged.
- Verify the direction of rotation switch is set correctly.
- Check that the gear switch is in the desired position (1 or 2).
- Ensure the workpiece is clamped securely.
Specs in practice
- No-Load Speed
- 0-500 RPM (low) or 0-1,800 RPM (high) for different drilling and driving applications.
- Drill Capacity
- Maximum capacity for Wood (35mm), Steel (13mm), and Masonry (13mm).
Images and diagrams
- Keyless Chuck: Single sleeve design allows for tool-free bit changes.
- Two-Speed Gear Switch: Toggle between low speed (high torque) and high speed (fast drilling).
- Torque Ring: Adjusts clutch settings for screwdriving or selects Hammer/Drill modes.
Model compatibility
- Compatible with all WEN 20V MAX batteries.
- Some tools may not be compatible with WEN 20V MAX 1.5Ah battery model 49120B.
