User Manual for WEN 20512 / 20512BT 20V Max Cordless 18-Gauge Brad Nailer

Quick guide for the WEN 20512 / 20512BT 20V Max Cordless 18-Gauge Brad Nailer. Includes setup, operation, safety, maintenance, and troubleshooting steps.

Quick answers from the manual

Quick answer

  • The WEN 20512/20512BT is a 20V cordless 18-gauge brad nailer. It features adjustable depth, two driving modes (single-sequential and bump-fire), and dual LED lights. p. 3, 9, 12

Key actions

  • Loading nails: Unlock magazine latch, pull back cover, insert nails (tips down), push cover forward until it clicks. p. 11
  • Adjusting depth: Rotate the depth adjustment wheel on the nose (Left to increase, Right to decrease). p. 12
  • Clearing jams: Remove battery, unlock magazine, remove nails, loosen nose cover screws, remove jammed fastener, reassemble. p. 13

First start

  • Charge the battery fully, insert it into the tool, load 18-gauge brad nails, and test on scrap wood. p. 10, 11, 13

Problems and fixes

Tool doesn't turn on

Charge battery, unlock firing contact pin, or clean battery terminals.

p. 15

Maintenance and reset

  • Keep tools clean, inspect for loose parts, and store in a dry, frost-free place. p. 14

Technical specifications

Parameter Value Meaning Pages
Nail Length 3/4 in. to 2 in. Compatible nail size range p. 3

Where to find it in the PDF

  • Safety Rules p. 4, 5, 6, 7
  • Assembly & Adjustments p. 10, 11, 12
  • Operation & Maintenance p. 13, 14
  • Parts List p. 17, 18, 19
Table of contents

Manual images

Click an image to enlarge
Know Your Brad Nailer parts diagram Page 9 Loading and unloading fasteners Page 11 Adjusting the depth of drive Page 12 Setting the driving mode Page 12 Firing fasteners Page 13

Important Information from the Manual

The WEN 20512 / 20512BT is a 20V cordless 18-gauge brad nailer designed for household use. Before operating, ensure the battery is fully charged and you are wearing appropriate eye and hearing protection. Always keep the tool pointed away from yourself and others. The tool features two driving modes: single-sequential and bump-fire.

Product Overview

The nailer includes a trigger, depth adjustment wheel, driving mode switch, magazine cover, and dual LED lights. It uses 18-gauge brad nails ranging from 3/4 inch to 2 inches in length, with a magazine capacity of 100 nails.

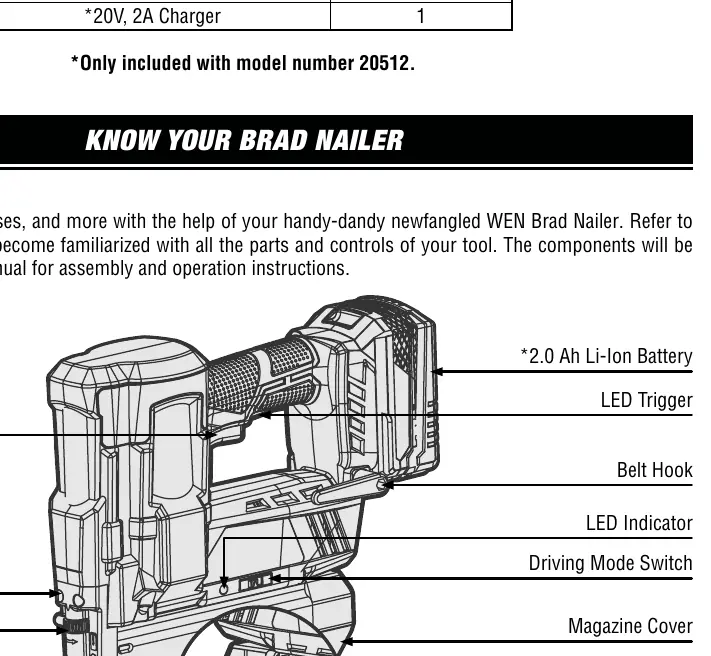

Know Your Brad Nailer parts diagram
Know Your Brad Nailer parts diagram

Assembly and Adjustments

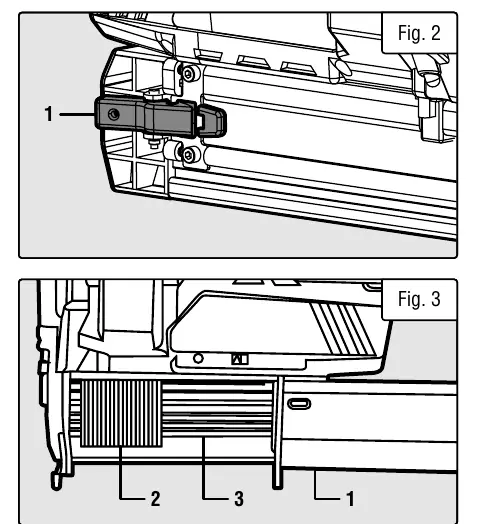

Loading and unloading fasteners
Loading and unloading fasteners
Adjusting the depth of drive
Adjusting the depth of drive

Charging the Battery

The battery is supplied in a low charge condition. Connect the charger to a 120V, 60Hz AC outlet. Slide the battery into the charger. A solid red light indicates charging, while a solid green light indicates the battery is charged.

Loading Fasteners

  1. Unlock the magazine latch and pull back the magazine cover.
  2. Place a clip of nails onto the magazine rail with the nail tips pointing downwards.
  3. Push the magazine cover forward until it clicks shut.

Adjusting Depth of Drive

Use the depth adjustment wheel on the tool's nose. Rotate to the LEFT to increase depth and to the RIGHT to decrease depth. Test on scrap wood first.

Operation

Setting the driving mode
Setting the driving mode

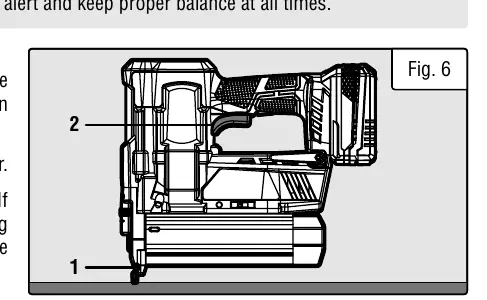

Firing fasteners
Firing fasteners

Driving Modes

  • Single-Sequential: Push the drive mode switch to the LEFT. Requires pulling the trigger for each nail.
  • Bump-Fire: Push the drive mode switch to the RIGHT. Allows automatic firing when the trigger is depressed and the contact pin is pushed against the workpiece.

Firing Fasteners

Attach the battery, test depth on scrap wood, hold the nailer upright on the workpiece, and press down while pulling the trigger.

Maintenance

  • Cleaning: Wipe the tool with a damp towel and mild soap. Use compressed air to blow the tool clean.
  • Clearing Jams: Remove the battery, unlock the magazine, remove all nails, loosen the four screws on the nose cover, remove the jammed fastener, and reassemble.
  • Storage: Store in a dark, dry, frost-free, and well-ventilated place. Ideal temperature is 50 to 86 °F (10 to 30 °C).

Practical help

Common problems

Tool doesn't turn on (LED off)

Check battery charge, ensure firing contact pin is not locked, clean battery terminals, or check for damaged internal parts.

Tool operates but no fastener driven

Check for jams, ensure magazine is loaded, verify correct nail specifications, or clean the nose piece and magazine.

Tool doesn't drive fastener fully

Charge or replace battery, adjust depth wheel to increase depth, or press tool more firmly against the workpiece.

Before use

  • Charge battery fully before first use.
  • Inspect tool for damaged parts or loose screws.
  • Ensure firing contact pin moves freely.
  • Wear eye and hearing protection.
  • Check that the correct 18-gauge brad nails (3/4" to 2") are loaded.

Specs in practice

Magazine Capacity
100 Nails
Firing Speed
Up to 100 Nails / Minute

Images and diagrams

  • Exploded view (pages 17-19) shows all internal components and assembly order.
  • Control diagram (page 9) identifies the trigger, depth adjustment wheel, and mode switch.

Model compatibility

  • Compatible with all WEN 20V MAX batteries.
  • Some tools may not be compatible with WEN 20V MAX 1.5Ah Batteries (model 49120B).
