WEN 20610-PB Plunge Base Kit Instruction Manual
Comprehensive user guide for the WEN 20610-PB Plunge Base Kit. This manual covers assembly, router installation, depth adjustment procedures, fence and template guide setup, and maintenance instructions.
Quick answers from the manual
Quick answer
- The WEN 20610-PB is a plunge base kit that allows for plunge routing operations. It includes a fine-tune adjustment knob, turret depth stop, fence, and template guide. p. 3, 7
Key actions
- Install the router by sliding it into the plunge base and securing the base locking latch. p. 8
- Set cutting depth using the turret depth stop and fine-tune adjustment knob. p. 9
First start
- Inspect the tool for damage, install the router into the base, and adjust the depth stop before operation. p. 8, 9, 11
Maintenance and reset
- Keep ventilation openings clean and wipe surfaces with a damp cloth and mild soap. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dust Chute Diameter | 1-9/16 in. (39.6mm) | Diameter of the dust extraction port. | p. 3 |
| Product Weight | 2.60 lbs | Weight of the base unit. | p. 3 |
Where to find it in the PDF
- Assembly & Adjustments p. 8, 9, 10
Table of contents
Manual images
Click an image to enlargeQuick Guide
The WEN 20610-PB Plunge Base Kit is designed to convert a standard router into a plunge router. Before operating, ensure the tool is inspected for loose hardware or damaged parts. Always disconnect the power source before making adjustments or performing maintenance.
Assembly
Installing the Router
- Open the base locking latch.
- Slide the router into the plunge base, ensuring the notch in the plunge base slides into the slot on the back of the router body.
- Close the base locking latch to secure the plunge base to the router.
Installing the Dust Shield and Chute
- Dust Shield: Fit the dust shield into the slots on the front of the plunge base.
- Dust Chute: Remove the pre-installed dust chute knob, fit the dust chute into the slot on the back of the base, and re-install the knob through the chute to secure it.
Adjustments
Setting the Cutting Depth
- Install the desired router bit.
- Place the router on a flat surface. Loosen the depth lock knob and manually raise or lower the depth scale.
- Use the fine-tune adjustment knob to make precise adjustments (0.1mm per marking).
- Loosen the plunge lock lever and lower the router body until the bit touches the workpiece. Tighten the lever.
- Bring down the depth scale until it touches the turret depth stop. Note the reading.
- Unlock the plunge lock lever, raise the router, and set the depth scale to the desired depth relative to the initial reading.
Installing Accessories
- Fence: Attach the fence poles to the bracket, insert them into the fence mounting slots on the base, and secure with the three fence locking knobs.
- Template Guide: Remove the two screws on the bottom of the plunge base, place the template guide into the recess, and secure it with the screws.
Maintenance
- Keep ventilation openings free from dust and debris.
- Wipe tool surfaces with a damp cloth and mild soap. Do not use harsh solvents.
- Inspect for loose hardware, damaged battery packs, or cracked parts before each use.
- Store in a clean, dry place away from children.
Practical help
Common problems
Router does not fit into the base
Ensure the notch in the plunge base is aligned with the slot on the back of the router body.
Dust chute is loose
Ensure the dust chute knob is properly re-installed through the dust chute into the base.
Inaccurate depth of cut
Verify the turret depth stop is set correctly and use the fine-tune adjustment knob for minor corrections.
Before use
- Inspect the tool for loose hardware.
- Check for cracked or broken parts.
- Ensure the switch is in the off-position before connecting to power.
- Verify all guards are in place and functional.
- Ensure the router is securely locked into the base.
Specs in practice
- Dust Chute Diameter
- 1-9/16 in. (39.6mm) - size required for dust collection hoses.
- Product Weight
- 2.60 lbs - total weight of the plunge base unit.
Images and diagrams

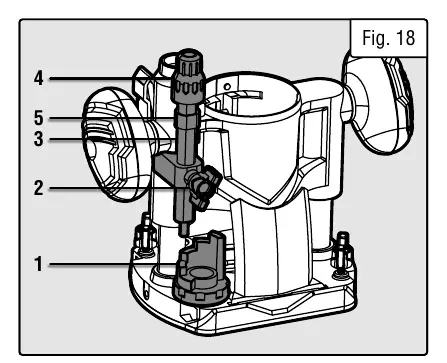

- Fig 18: Illustrates the depth adjustment components, including the turret depth stop and fine-tune adjustment knob.

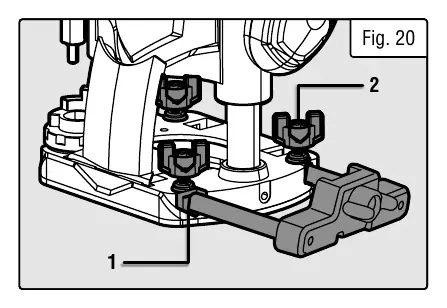

- Fig 20: Shows the installation of the fence poles into the mounting slots on the router base.
Model compatibility
- Designed for use with compatible WEN routers.
- Compatible with 1-3/16-inch standard router template and guide bushing sets (e.g., Model RT011A).
