User Manual for Winston Porter 15H Outdoor Wall Sconce
Quick guide for the Winston Porter 15H outdoor wall sconce. Includes installation steps, wiring diagrams, safety precautions, and technical specifications for your dusk-to-dawn light fixture.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and safety instructions for the Winston Porter 15H outdoor wall sconce. Please ensure the power is disconnected before starting any work. If you are installing multiple sensor lights, ensure a minimum distance of 5 feet between them to prevent sensor interference. Installation must be performed by a qualified licensed electrician.
Safety precautions
- Always disconnect the main power supply before installation, cleaning, or replacing the light.
- Wear gloves during installation to avoid damaging the fixture surface or wires.
- Keep the lighting away from acid, alkali, and other corrosive chemicals or gases.
- Never cover the lighting while the power is connected.
- Ensure the outlet box is directly supported by the building structure.
Installation instructions
- Preparation: Gather necessary tools including a blade screwdriver, adjustable wrench, step ladder, and wire cutter.
- Mounting: Fix the circular bracket (B) to the existing electrical box (A) using the two bracket screws (C).
- Wiring: Connect the lamp body power line to the electrical box power line. Connect the live wire to the black wire (L), the zero wire to the white wire (N), and the ground wire to the ground wire. Secure connections with terminal caps (F).
- Finishing: Tuck the wires into the back plate of the lamp. Connect the lamp body to the bracket using the fixed screws (G) and secure it with the round nut (H).
Technical specifications
- Rated Voltage: 120V/60Hz
- Bulb Base: E26
- Max Wattage: 60W
Practical help
Common problems
Sensor not working properly
Ensure the mounting distance between two sensor wall lights is at least 5 feet.
Light not turning on
Verify that the main power supply is connected and that all wiring connections are secure and properly capped.
Before use
- Disconnect the main power supply.
- Prepare tools: Blade screwdriver, adjustable wrench, step ladder, wire cutter.
- Ensure the outlet box is supported by the building structure.
- Wear gloves to protect the fixture surface.
- Verify that the installation environment is free from other strong lighting effects.
Specs in practice
- Rated Voltage
- 120V/60Hz
Images and diagrams
- Wiring Diagram: Illustrates the connection of Live (L), Neutral (N), and Ground wires using terminal caps.

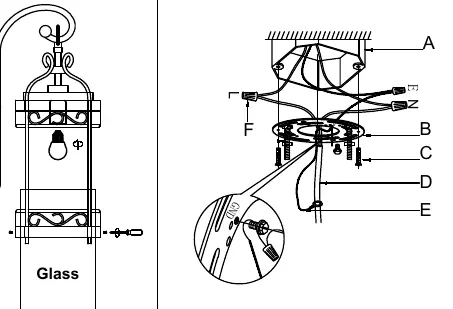

- Canopy Installation: Shows the sequence of attaching the bracket to the electrical box and securing the lamp body.
Model compatibility
- Installation must be carried out by a qualified licensed electrician.
- If installing multiple sensor lights, maintain a distance of at least 5 feet between them.
