XXXLutz Madeira Box Spring Bed Assembly Guide
Assembly guide for the XXXLutz Madeira box spring bed (00001Q0012). Includes step-by-step instructions for attaching feet, connecting base units, installing the headboard, and important weight capacity limits.
Table of contents
Manual images
Click an image to enlargeImportant Information
This assembly guide covers the setup of the XXXLutz Madeira box spring bed (Article No. 00001Q0012). Assembly requires two people and approximately 60 minutes. Ensure you have the necessary tools, including a screwdriver, hammer, and a level, before beginning.
Safety Warnings
- Do not jump on the bed.
- For indoor use only; do not expose to outdoor elements or moisture.
- Dispose of packaging materials responsibly in accordance with local recycling regulations.
- Ensure the bed is assembled on a flat, stable surface.
Assembly Instructions
Step 1 & 2: Attaching FeetTurn the base units (L and R) upside down. Attach the feet to the corners of the base frames using the provided screws (A and B). Ensure they are tightened securely.
Step 3: Connecting Base UnitsPosition the left (L) and right (R) base units together. Connect them securely using the provided metal brackets/connectors.

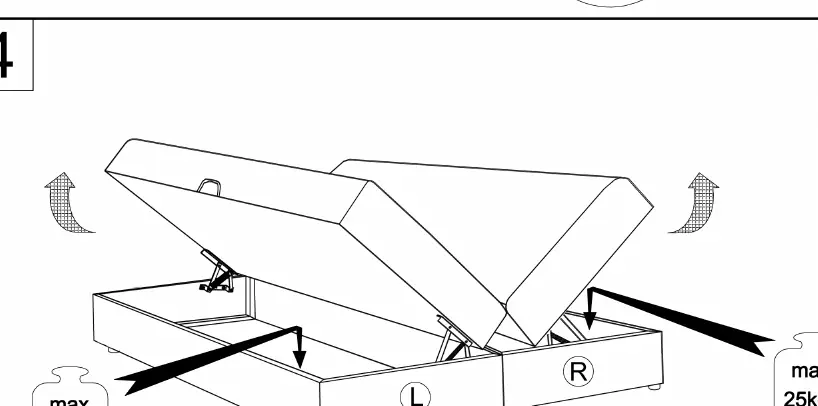

Step 4: Storage CompartmentThe bed features integrated storage compartments. Ensure the storage area is not overloaded.

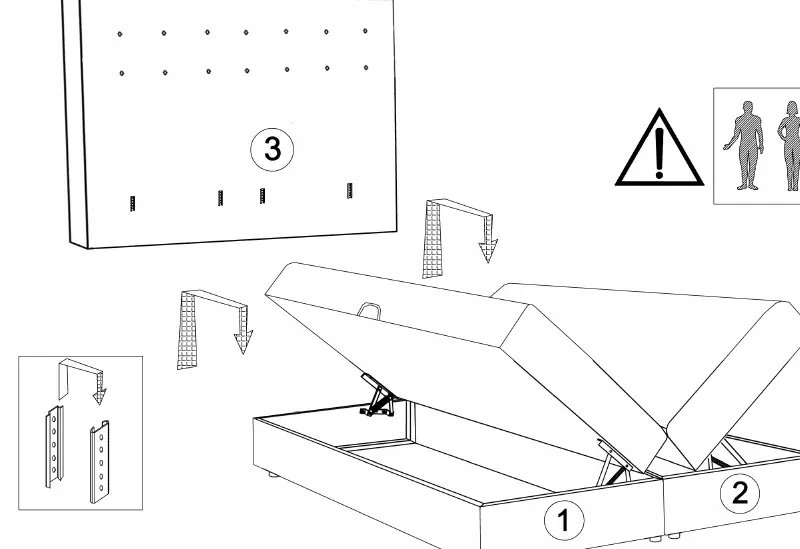

Step 5: Attaching HeadboardAlign the headboard (3) with the back of the connected base units. Secure the headboard to the base using the provided mounting brackets.
Step 6: Final SetupPlace the mattress (4) and topper (5) onto the base units. Ensure they are centered and aligned correctly.
Usage and Weight Limits
- Storage Compartment Limit: Maximum 25kg per compartment.
- Bed Weight Limit: Maximum 150kg per side.
Manufacturer information
XXXLutz
Practical help
Common problems
Storage compartment overload
Do not exceed the maximum weight limit of 25kg per storage compartment to prevent damage to the lifting mechanism.
Bed instability
Ensure both base units are correctly connected with the provided brackets and that all feet are tightened securely.
Before use
- Ensure two people are available for assembly
- Verify all parts are present (Boxes 1-5)
- Prepare tools: screwdriver, hammer, and level
- Clear sufficient floor space for assembly
- Check that the assembly surface is flat and stable
Specs in practice
- Max weight per side
- 150kg
- Storage compartment limit
- 25kg
- Assembly time
- Approximately 60 minutes
Images and diagrams
- Steps 1-2: Attaching feet to the base frames
- Step 3: Connecting the left and right base units
- Step 4: Accessing the storage compartment
- Step 5: Mounting the headboard to the base
- Step 6: Final placement of mattress and topper
